Display device and electronic equipment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jan 17, 2017
filing date -
Aug 3, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

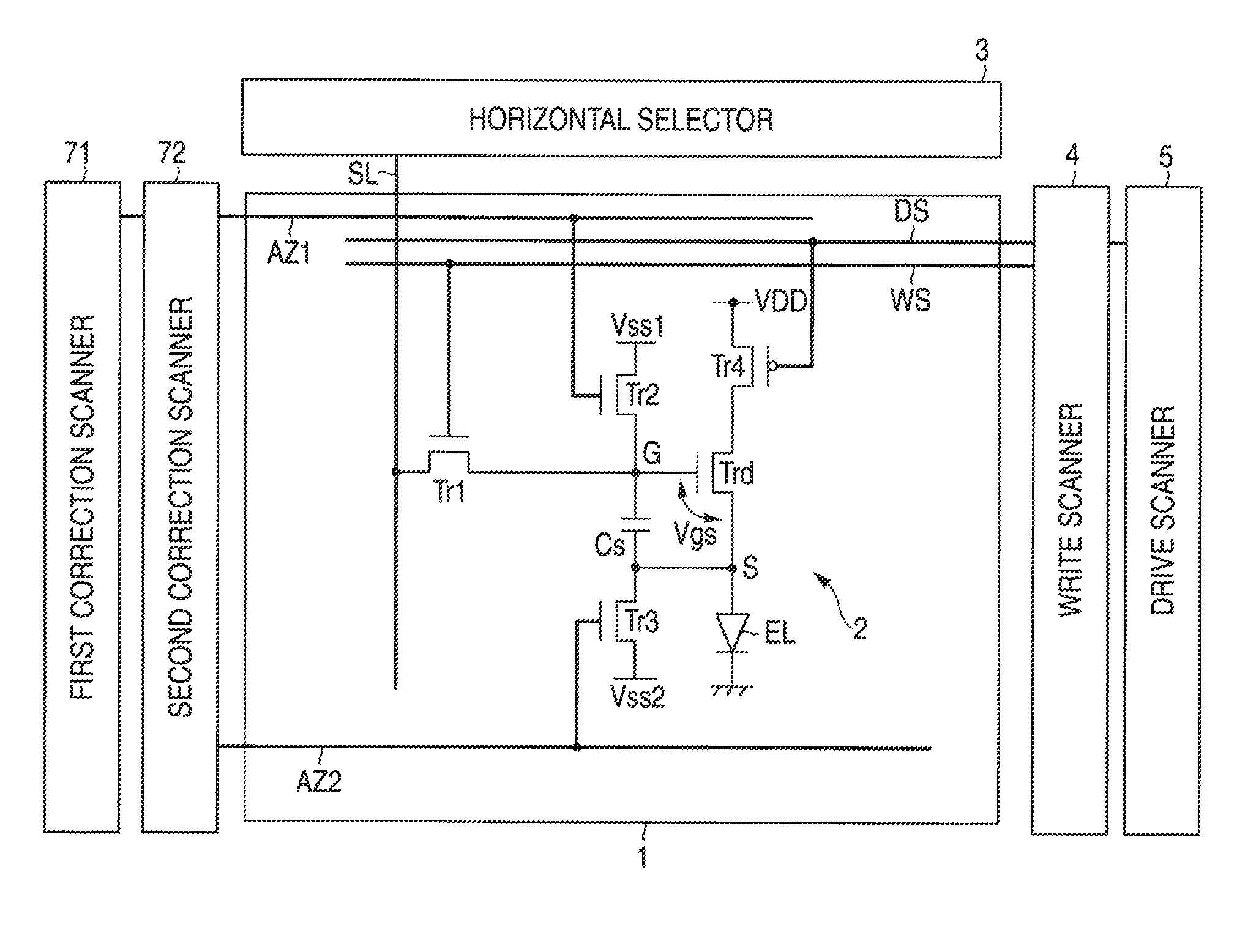

A display device is disclosed. The display device includes: a pixel array unit and a driving unit which drives the pixel array unit. The pixel array unit includes rows of first scanning lines and second scanning lines, columns of signals, pixels in a matrix state arranged at portions where the scanning lines and the signal lines cross each other and power supply lines and ground lines supplying power to respective pixels. The driving unit includes a first scanner performing line-sequential scanning to pixels by each row by supplying a first control signal to each first scanning line sequentially, a second scanner supplying a second control signal to each second scanning line sequentially so as to correspond to the line-sequential scanning and a signal selector supplying a video signal to rows of signal lines so as to correspond to the line-sequential scanning.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G09G Class
- 23.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
