Auto scanning input method and apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Sep 30, 2014
filing date -
May 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

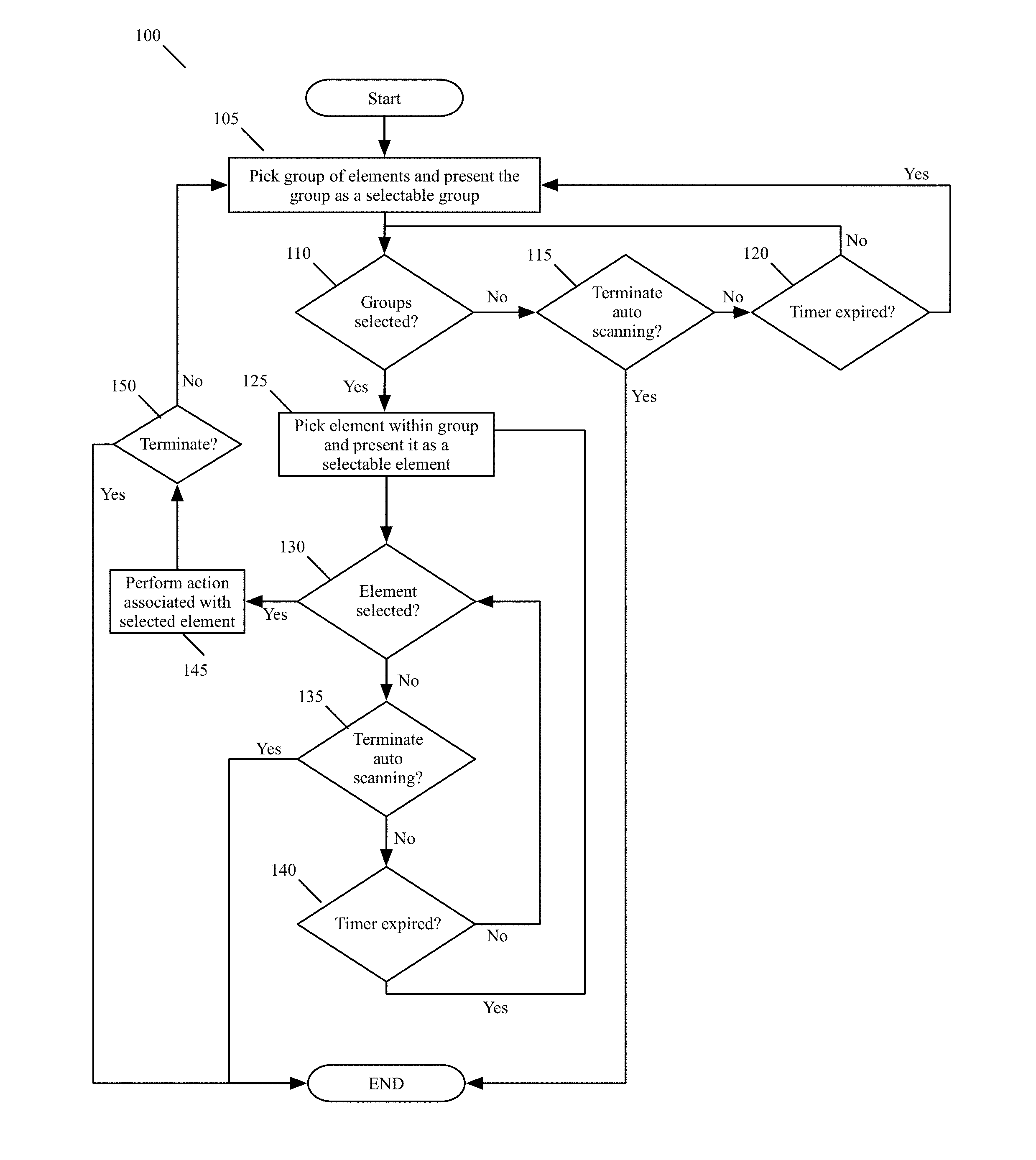

Some embodiments provide a novel auto-scanning method for navigating elements within a user interface (UI) of a computing device. This method associates the UI elements into several overlapping groups, with each group having more than one element and having at least one element in common with at least one other group. The method successively identifies a different group of elements as a selectable group for a different duration of time. While a group is selectable, a user can select the group through an input device or mechanism. If a user does not select a first group of elements that is selectable during a first time period, the method identifies a second group of elements as being selectable during a second time period. While identifying the second group as selectable during the second time period, the method identifies the first as not being selectable during this time period. When a user selects a group of elements while the group is identified as being selectable, the method successively identifies as selectable different elements within the selected group. Upon receiving selection of a particular element within the selected group, the method performs an action associated with the particular element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G06F Class
- 51669 Applications Filed
- 44228 Patents Issued To-Date
- 85.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
