Touch panel apparatus and electronic apparatus providing tactile feedback to an operator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Grant Date -
Mar 26, 2015
app pub date -
Jan 16, 2013
filing date -
Jan 26, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

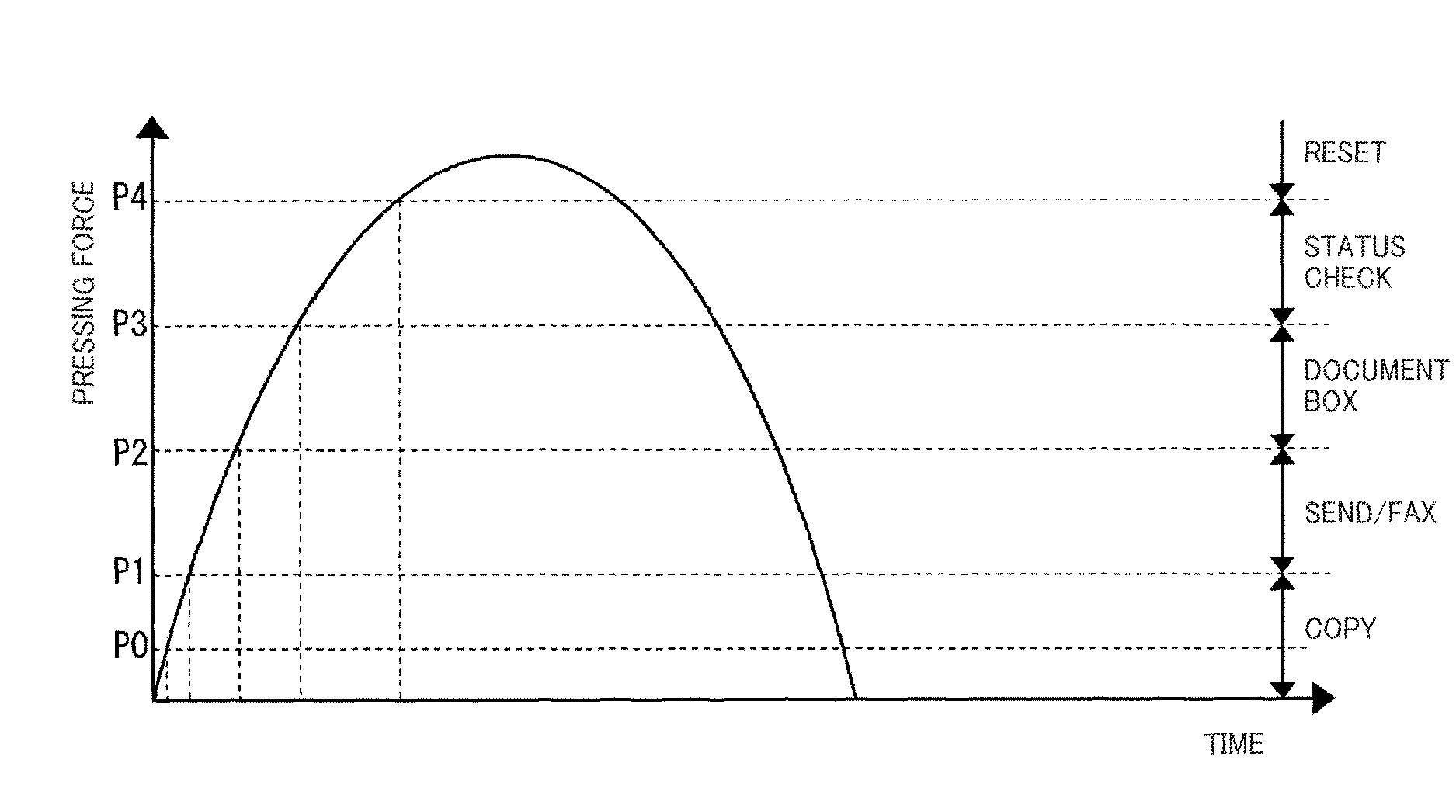

A touch panel apparatus is provided with a strain gauge sensor (16), a piezoelectric element (17), and a control unit (1). The strain gauge sensor (16) detects the pressing force to be applied to a touch panel (12) when a select-execute function key (18) is operated. The piezoelectric element (17) makes the touch panel (12) vibrate. The control unit (1) changes the function to be selected with the operation of the select-execute function key (18), in accordance with the pressing force detected by a pressing force detection unit (20), and when an arbitrary function is continued to be selected for a prescribed period of time (T0), the function that is continued to be selected is executed. The control unit also makes, each time the function is changed, the touch panel (12) vibrate with a first vibration pattern by controlling the piezoelectric element (17), and makes, when a function is to be executed, the touch panel (12) vibrate with a second vibration pattern that is different from the first vibration pattern by controlling the piezoelectric element (17).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G06F Class
- 20.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
