Hand and hand pose detection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Oct 8, 2012
filing date -
Oct 8, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

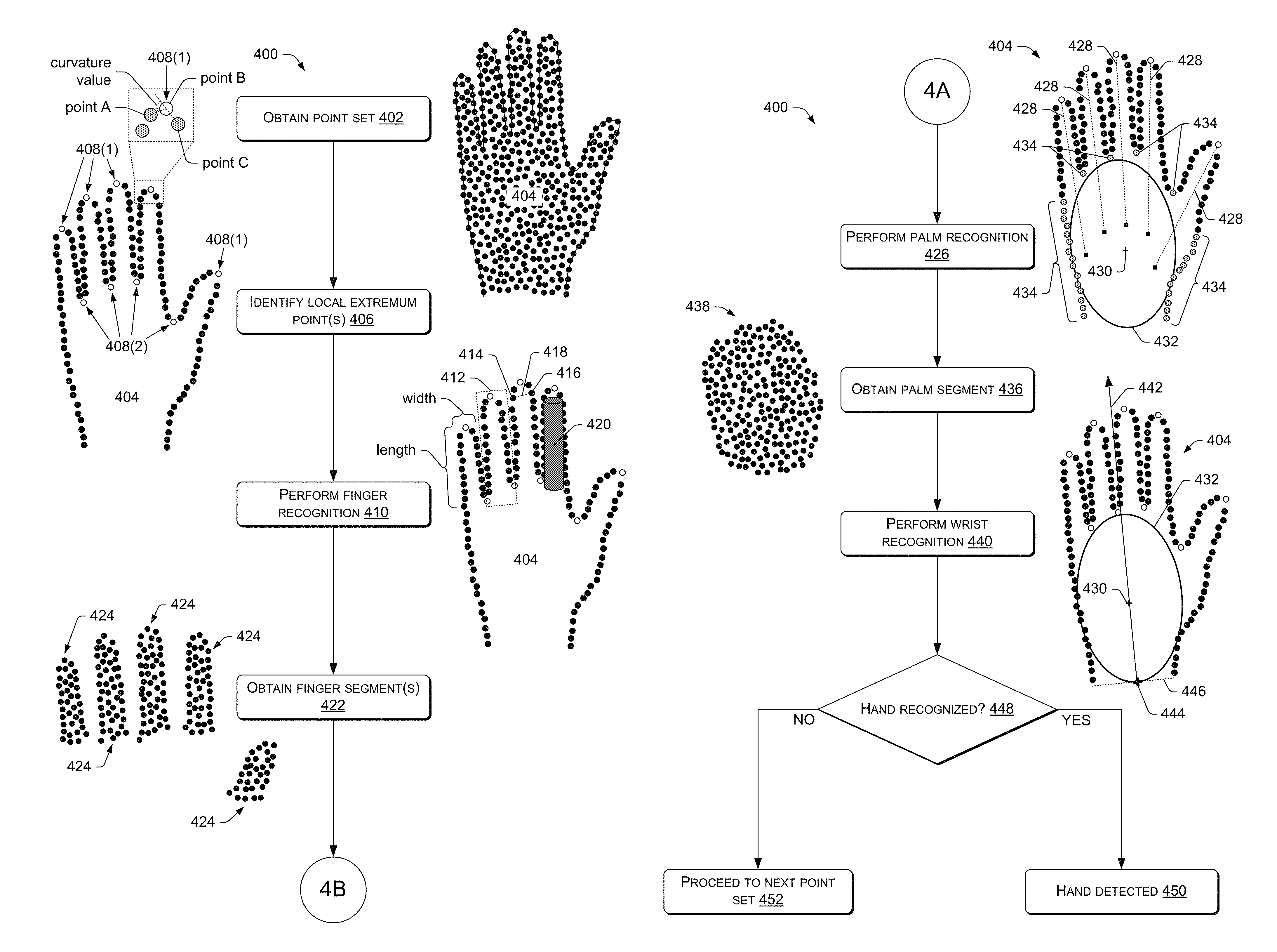

Techniques for detecting a hand of a user and a pose of the hand are described herein. In some instances, as a user interacts with a computing system through various hand signals, the hand of the user and pose of the hand (e.g., position and orientation) may be detected. To detect a hand, a point set may be analyzed to identify local extremum points (e.g., peaks and valleys) along an outer boundary of the point set. The local extremum points may then be used to identify a potential hand segment including one or more potential finger segments and/or a potential palm segment. When the potential hand segment satisfies one or more criteria, a hand may be detected. To detect a hand pose, an observed pose of the hand segment may be compared to one or more hand pose models.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G06F Class
- 48051 Applications Filed
- 40472 Patents Issued To-Date
- 84.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 23 Citation Count
- G06F Class
- 92.44 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
