Pedal cover assembly and methods of use and manufacture thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jul 7, 2014
filing date -
Jul 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

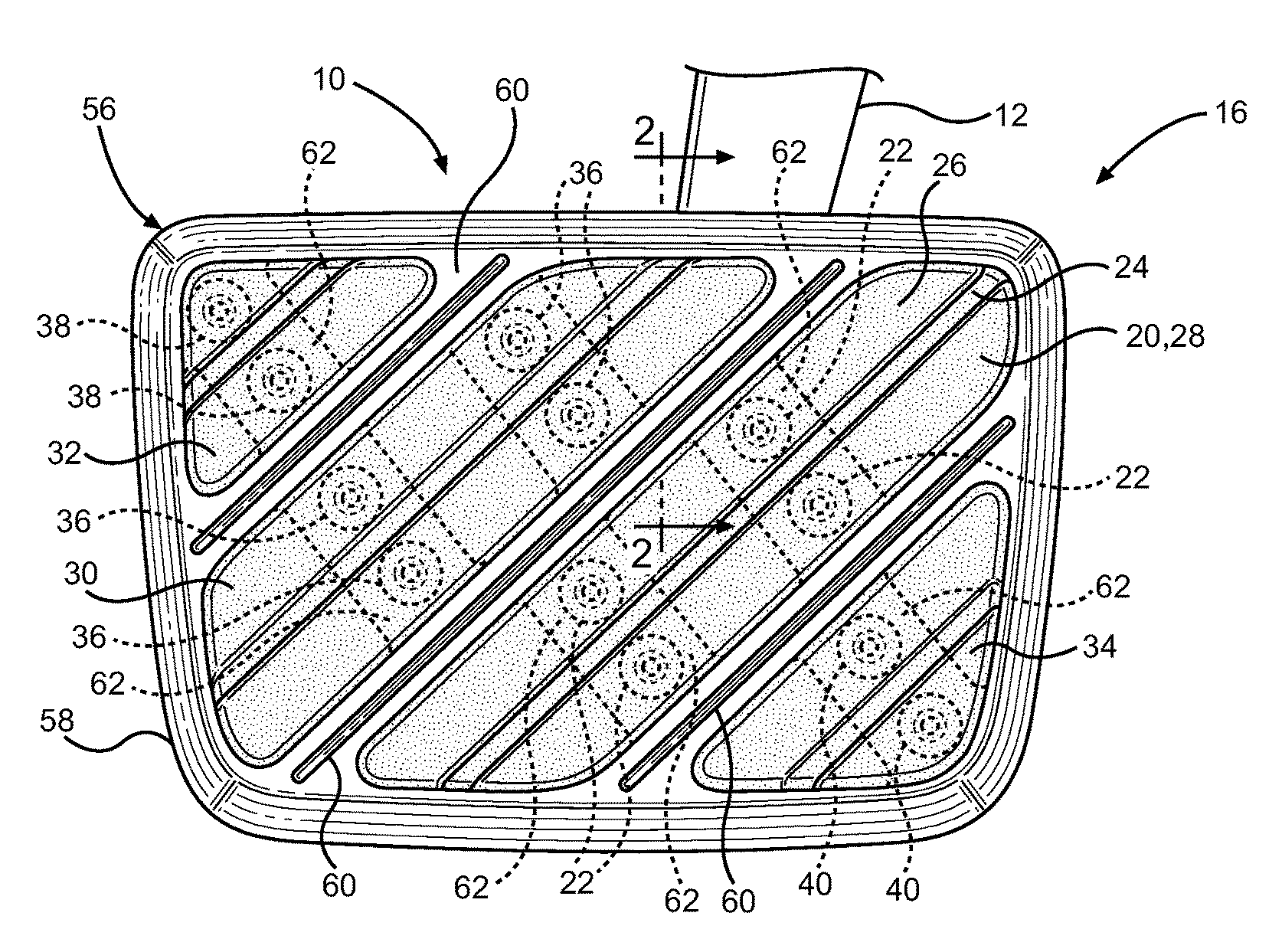

Some embodiments relate to a cover assembly for use with a vehicular plate member. The cover assembly includes a pad that is over-molded to a resilient member. The pad includes a primary contact member having an exterior surface with a relatively high coefficient of friction and disposed to be frictionally engagable with the vehicle operator's foot, the primary contact member being abradable through frictional engagement with the operator's foot. The pad can also include a connector member that is configured for attachment to the plate member. The cover assembly can also include a secondary contact member between the exterior surface of the primary contact member and the plate member. The secondary contact member is disposed completely below the primary contact member and thereby hidden from view prior to abrasion of the primary contact member, but disposed to frictionally engage the operator's foot subsequent to abrasion of the primary contact member.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- B60T Class
- 877 Applications Filed
- 780 Patents Issued To-Date
- 88.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B60T Class
- 33.53 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
