Hologram generation method and apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jan 4, 2016
filing date -
Jan 5, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

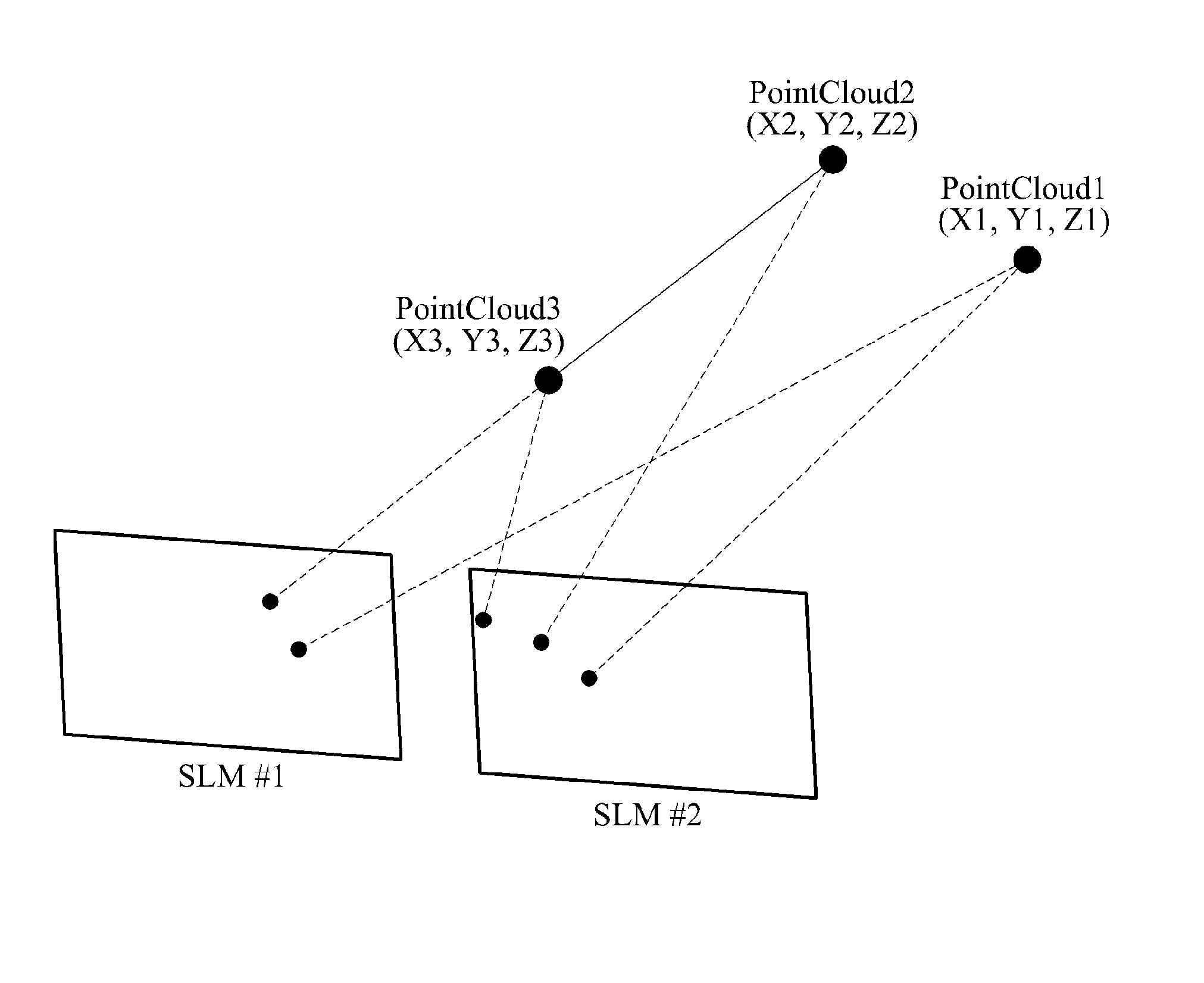

Provided is a hologram generation method including receiving three-dimensional (3D) data information, determining a first projection position onto which the 3D data information is projected on a hologram plane corresponding to a first spatial light modulator (SLM), and a second projection position onto which the 3D data information is projected on a hologram plane corresponding to a second SLM, generating a first Fresnel zone plate (FZP) pattern corresponding to the first projection position, and determining the first FZP pattern to be an FZP pattern corresponding to the second projection position.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- G03H Class
- 283 Applications Filed
- 211 Patents Issued To-Date
- 74.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G03H Class
- 28.57 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
