Image forming apparatus with cleaning function for intermediary transfer member
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Aug 26, 2016
filing date -
Aug 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

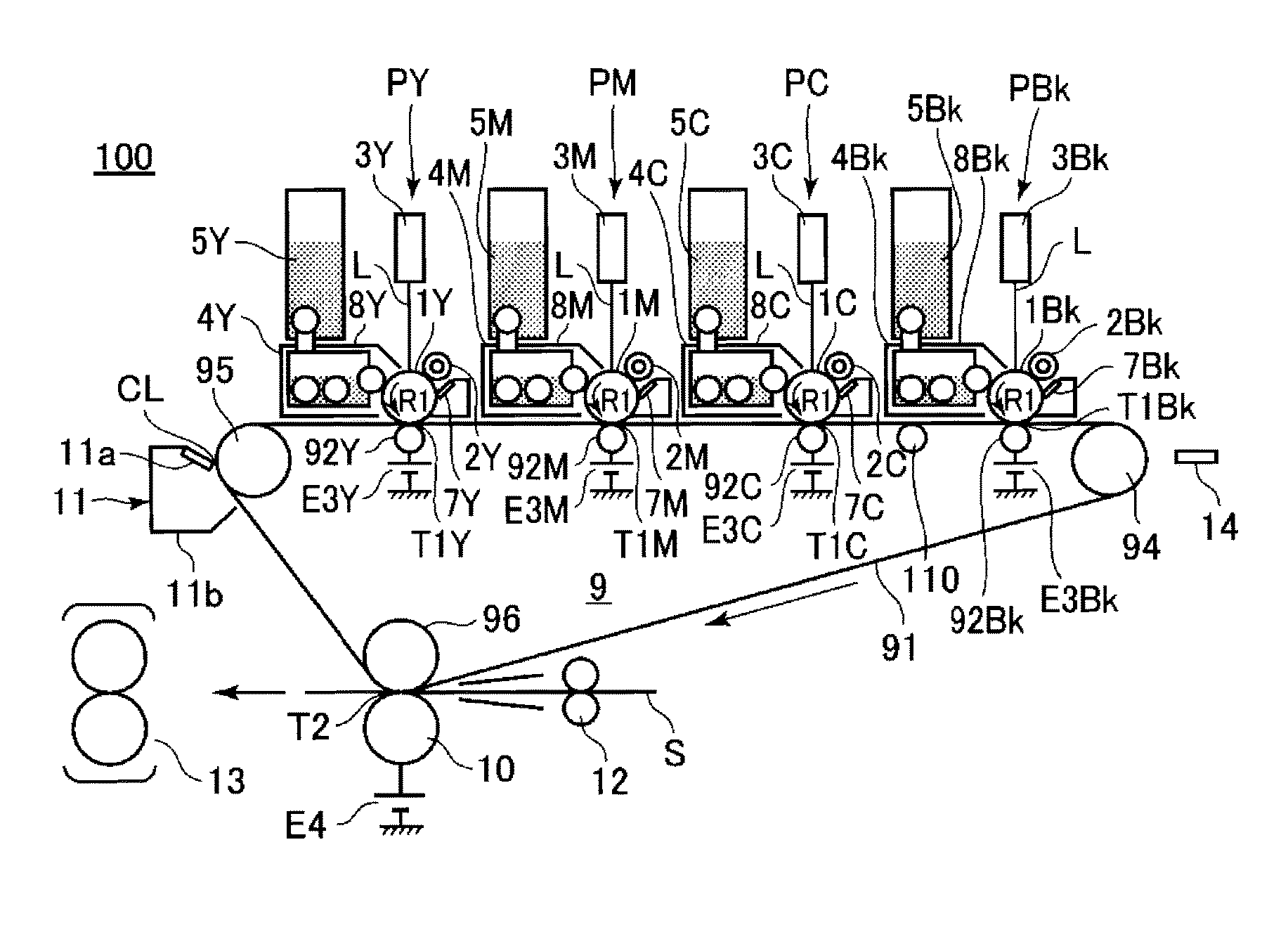

An image forming apparatus includes an image forming portion for forming a toner image; an intermediary transfer belt for receiving the toner image; a blade for cleaning the belt by removing residual toner therefrom; an ambient condition sensor for detecting an ambient condition; a memory for storing information relating to a use amount of the belt; and a controller for executing an operation in a mode in which a toner is deposited on the belt in an area corresponding to between a preceding sheet and a succeeding sheet during execution of a continuous image forming job for continuously forming the images on the sheets to supply the toner to the blade. The controller controls a frequency of the operations in the mode, on the basis of an output of the sensor during an image formation job and the information stored in the memory.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G03G Class
- 23.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
