Glass implemented display
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Nov 8, 2013
filing date -
Nov 9, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

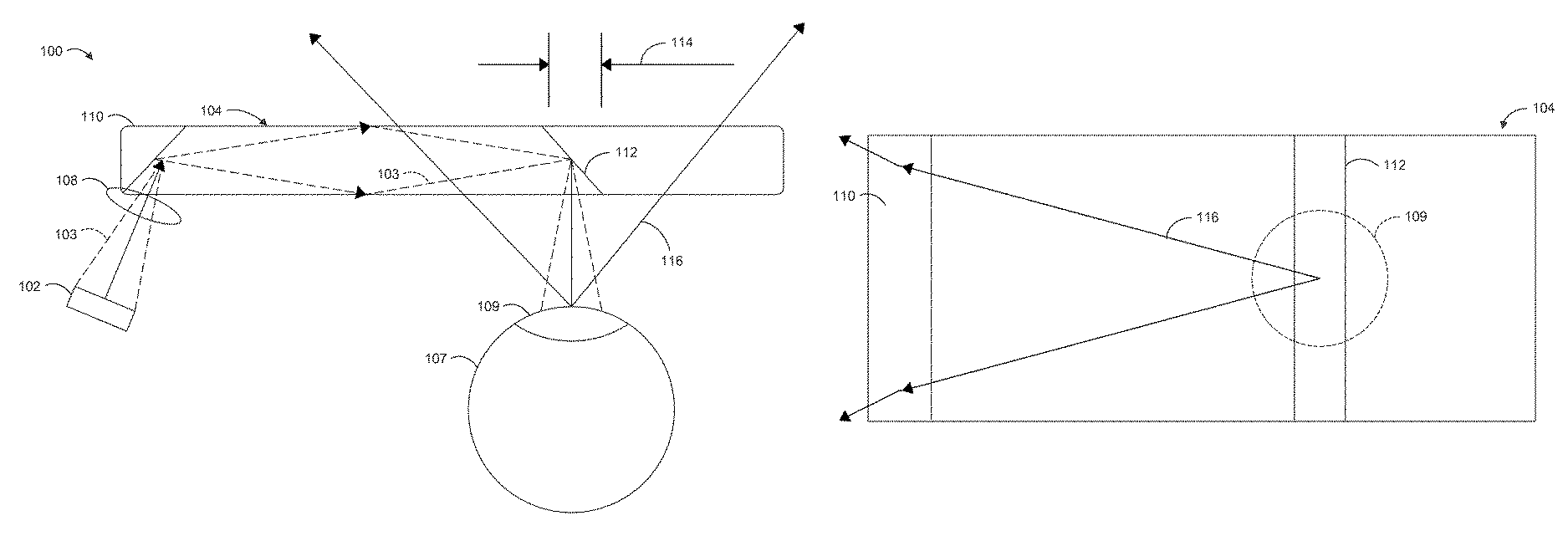

An optical system and methods are disclosed. In an aspect, an optical system can comprise a display device configured to emit an image information and an image guide optically coupled to the display device, wherein the image guide is configured to receive the image information and transmit the image information along a longitudinal axis of the image guide, and wherein the image guide has a thickness along a lateral axis between about 0.3 mm and about 1 mm. The optical system can further comprise a beam combiner disposed in the image guide, the beam combiner configured to transmit at least a portion of the received image information to exit the image guide.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2014074858 | Nov 08, 2013 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02B Class
- 28.28 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
