Electrical tuning of resonant scanning
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Dec 1, 2015
filing date -
Dec 1, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

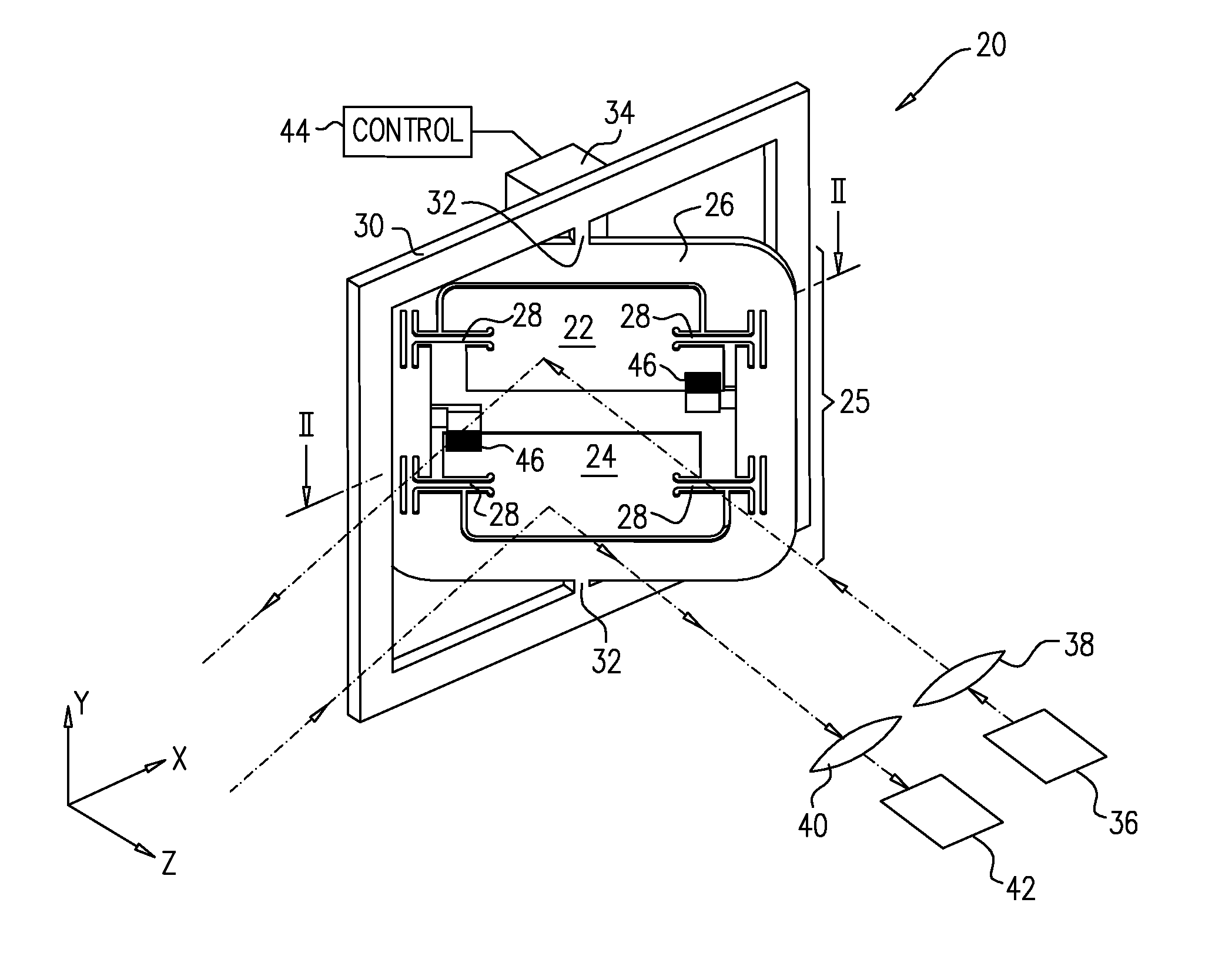

A scanning device includes a frame, having a central opening, and an array including a plurality of parallel mirrors contained within the central opening of the frame. Hinges respectively connect the mirrors to the frame and define respective, mutually-parallel axes of rotation of the mirrors relative to the frame. A main drive applies a driving force to the array so as to drive an oscillation of the mirrors about the hinges at a resonant frequency of the array. A sensor is configured to detect a discrepancy in a synchronization of the oscillation among the mirrors in the array, and an adjustment circuit applies a corrective signal to at least one of the mirrors in order to alleviate the detected discrepancy.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B81C Class
- 517 Applications Filed
- 370 Patents Issued To-Date
- 71.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B81C Class
- 11.11 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
