Automated decoupling of RF receive coil elements
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Sep 24, 2013
filing date -
Dec 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

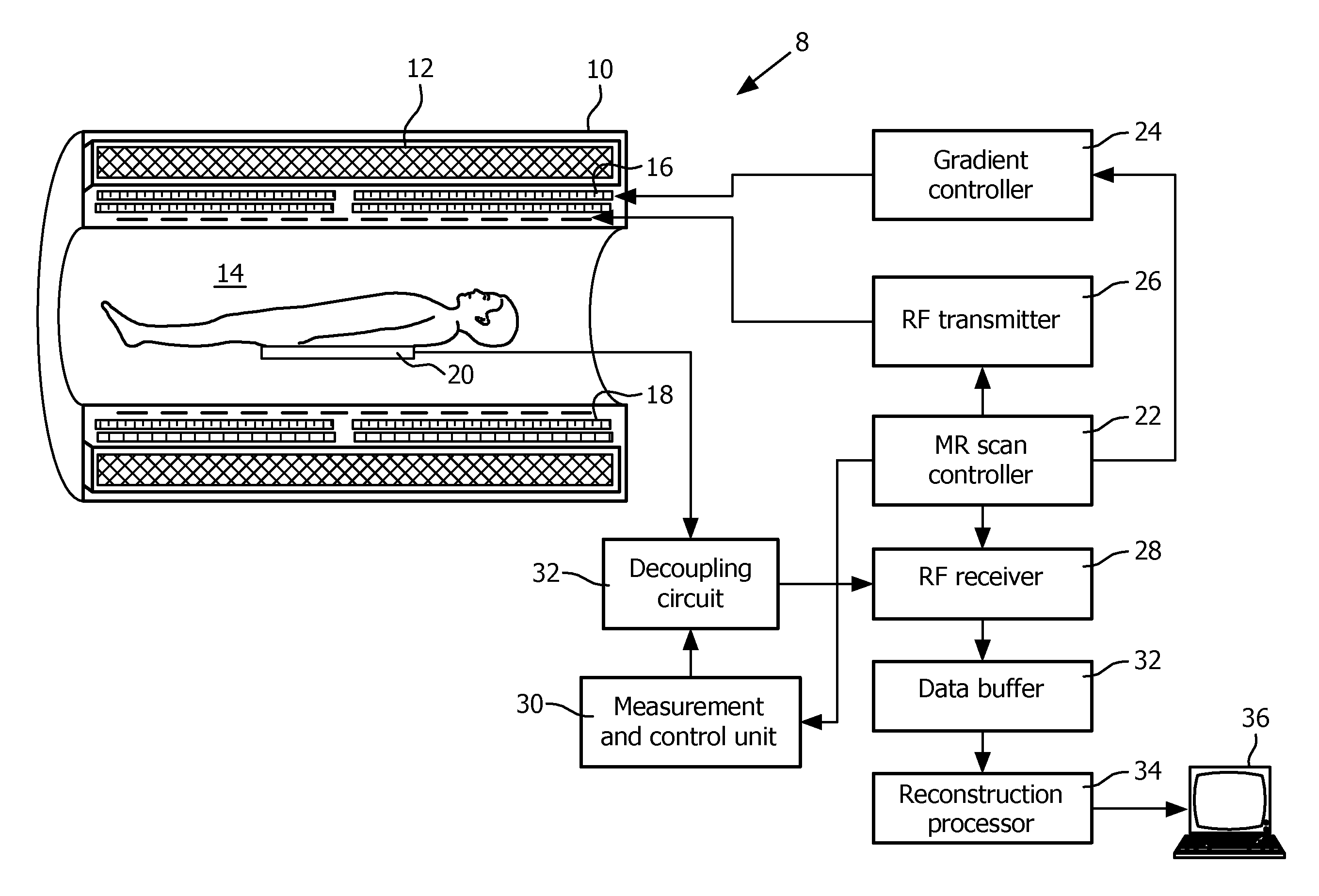

The invention discloses a decoupling circuit (32) disposed between adjacent RF receive coil elements to automatically decouple the adjacent MRI RF receive coil elements. In one embodiment, the invention involves to inject an RF signal into a first coil element, to measure the RF signal coupled from the first coil element into a second coil element and to adjust the capacitance of the decoupling circuit such as to minimize the coupling between the first and the second coil elements.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01R Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
