Battery system and method with capacity estimator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
May 15, 2013
filing date -
May 16, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

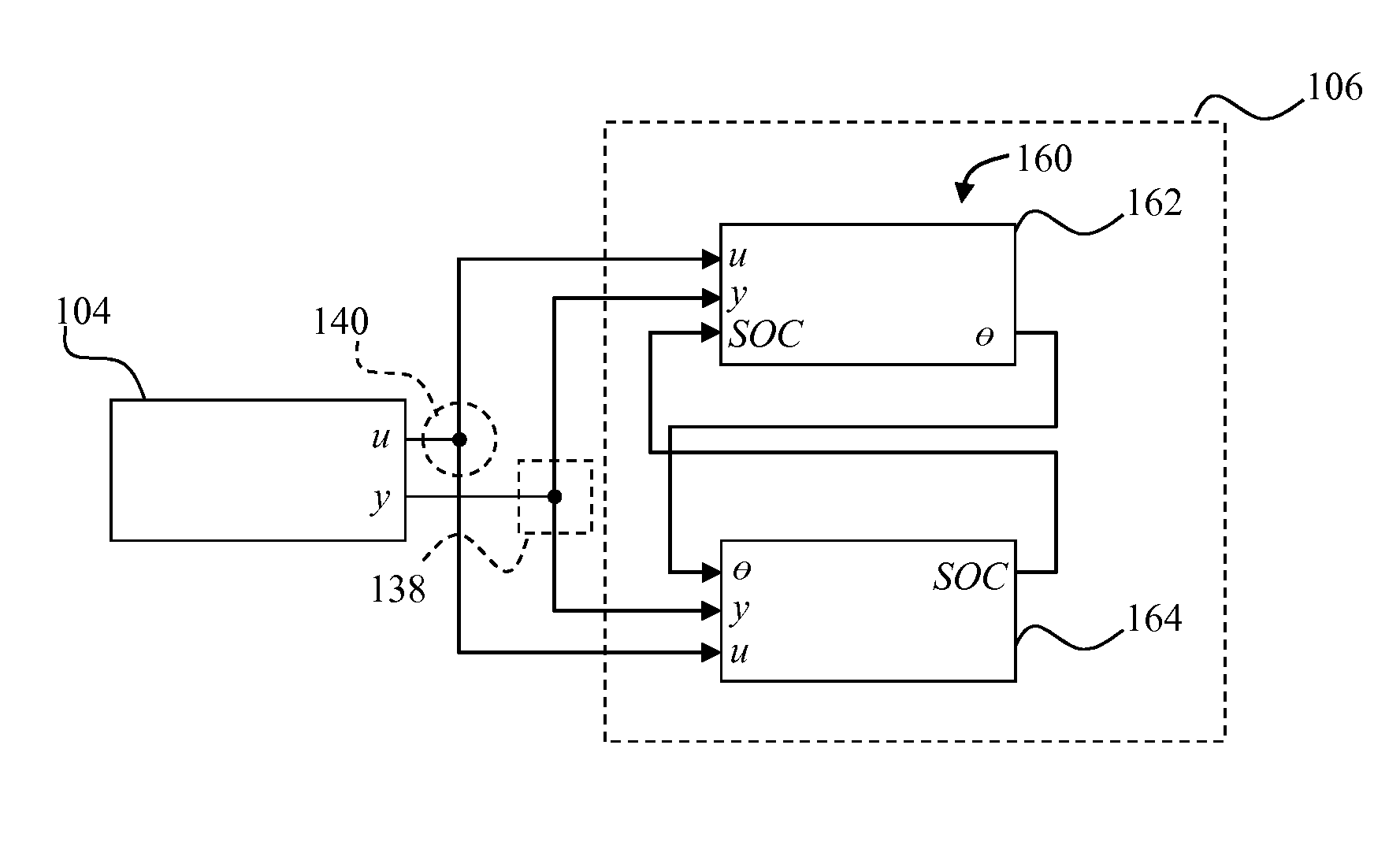

An electrochemical battery system in one embodiment includes at least one electrochemical cell, a current sensor configured to generate a current signal, a voltage sensor configured to generate a voltage signal, a memory in which command instructions are stored, and a processor configured to execute the command instructions to obtain the current signal and the voltage signal, and to generate an estimated cell nominal capacity (Cnom) of the at least one electrochemical cell by estimating a first leg Cnom during a first charging sequence using a first charging current, estimating a second leg Cnom during a second charging sequence using a second charging current, wherein the second charging current is at a current amplitude different from the current amplitude of the first charging current, and generating the cell Cnom based upon the first leg Cnom and the second leg Cnom.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01M Class
- 31.62 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
