Systems and methods for viewing data generated by rotational scanning in non-destructive testing

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9869660
SERIAL NO

15260861

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

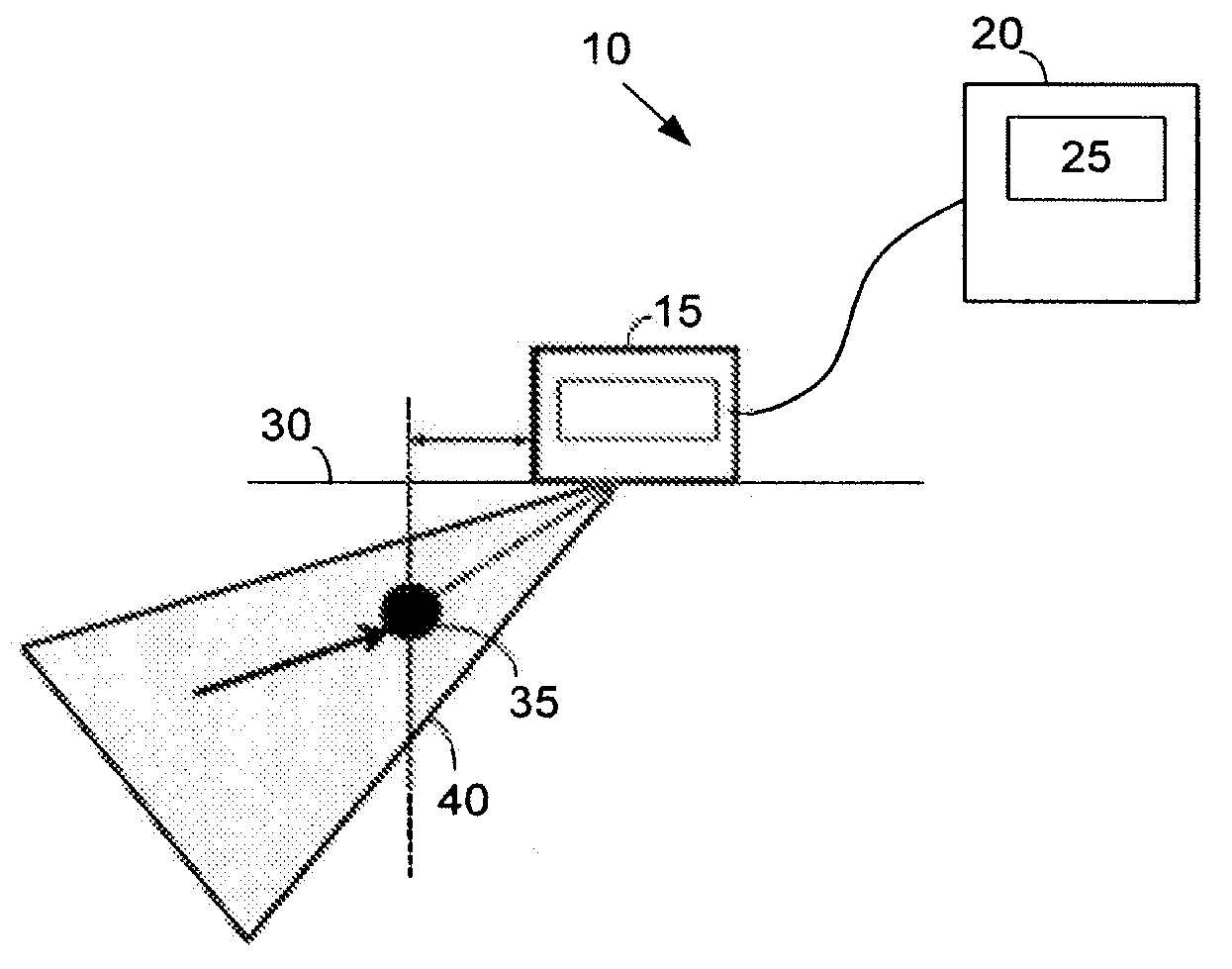

A non-destructive testing system for testing a work piece. The non-destructive testing system includes an ultrasonic probe, including a matrix of transducers, and a control unit including a display. The control unit is configured to control the ultrasonic probe. The ultrasonic probe and the control unit are configured to obtain multiple S-scan images. The ultrasonic probe and the control unit are configured to obtain a first S-scan image at a first direction orientation, and the ultrasonic probe and the control unit are configured to obtain a second S-scan image at a second direction orientation different from the first direction orientation. The control unit is configured to process the first and second S-scan images to provide at least an image upon the display.
