Method and apparatus for characterizing interfacial tension between two immiscible or partially miscible fluids
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Dec 14, 2012
filing date -
Dec 15, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

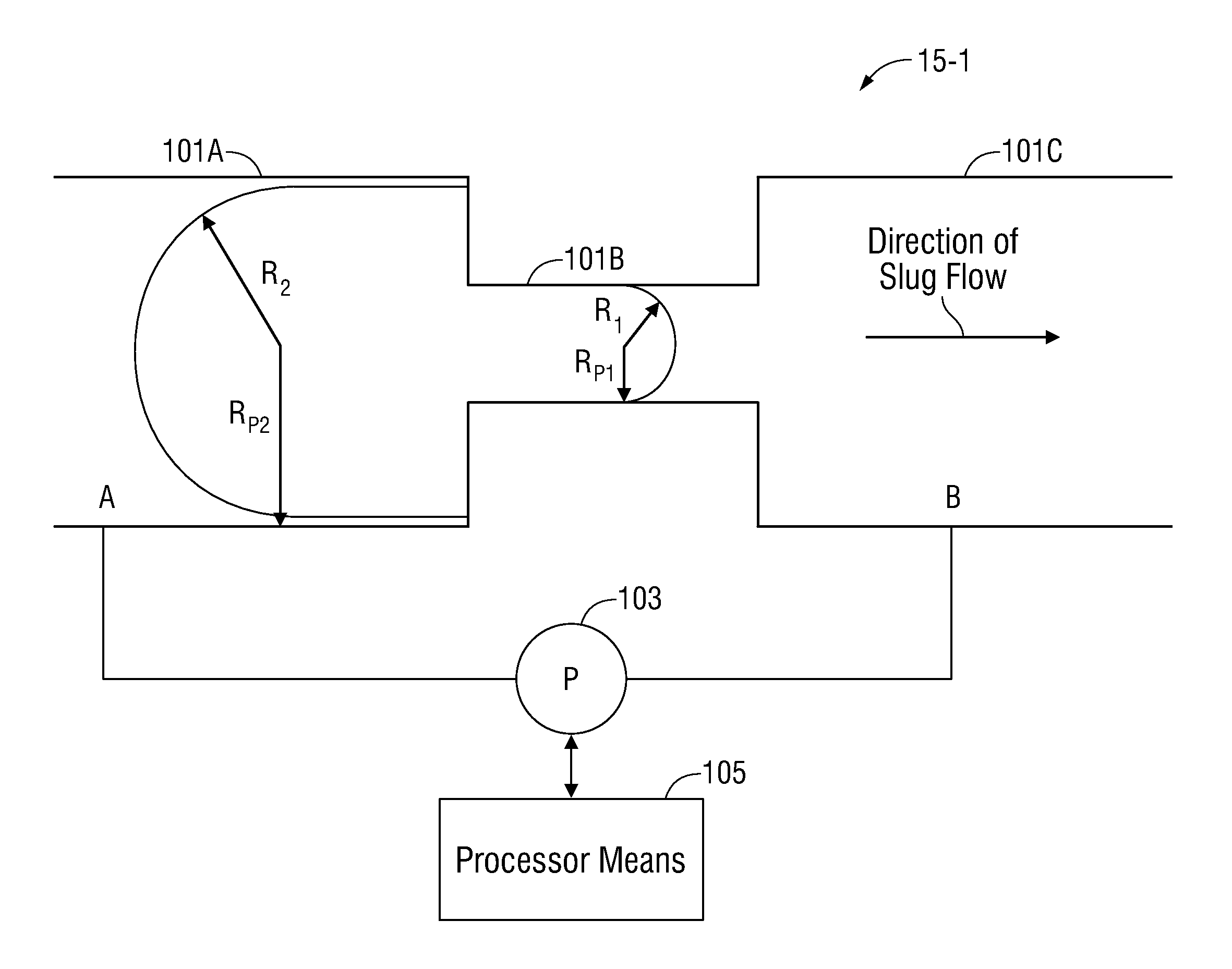

An apparatus (and method) for characterizing interfacial tension between a non-wetting phase fluid and a wetting phase fluid of a slug flow employs a capillary structure that is configured to contain a slug of the non-wetting phase fluid of the slug flow. The slug has a leading edge meniscus and a trailing edge meniscus, and the capillary structure has a venturi-like section. A pressure sensor is configured to measure differential pressure between first and second locations of the capillary structure. The first location is disposed upstream of the leading edge meniscus of the slug with the leading edge meniscus of the slug contained within the venturi-like section. The second location is disposed downstream of the trailing edge meniscus of the slug. Data processing means is configured to derive a measure of interfacial tension based upon the differential pressure measured by the pressure sensor and, optionally, geometry of the capillary structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G01N Class
- 8064 Applications Filed
- 6361 Patents Issued To-Date
- 78.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01N Class
- 40.30 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
