Systems and methods for distributed measurement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Apr 21, 2016
filing date -
Apr 21, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

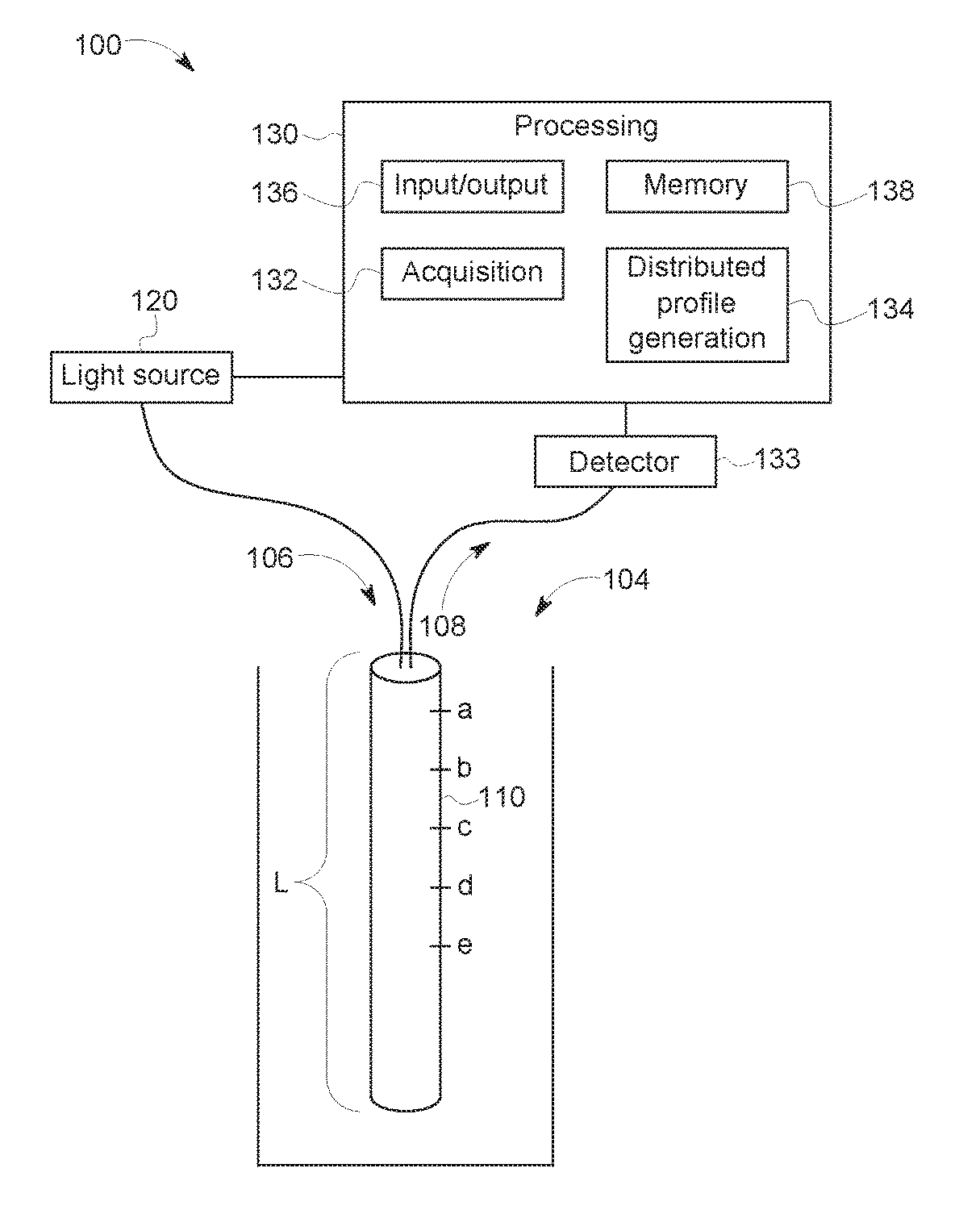

A measurement system includes a cable having a length, a light source, at least one detector, and at least one processor. The light source is operably coupled to the cable and is configured to transmit an optical signal to the cable. The at least one processor is operably coupled to the cable and configured to: receive a scattered signal from the cable responsive to the optical signal transmitted to the cable; map the scattered signal to the length of the cable; and de-convolve a spatial averaging effect of the scattered signal using a weighting profile corresponding to the light source and the cable to generate a distributed property profile defined along the length of the cable.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01J Class
- 1559 Applications Filed
- 1274 Patents Issued To-Date
- 81.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
