Frequency readout gyroscope
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Grant Date -
Jan 7, 2016
app pub date -
Jun 10, 2015
filing date -
Dec 12, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

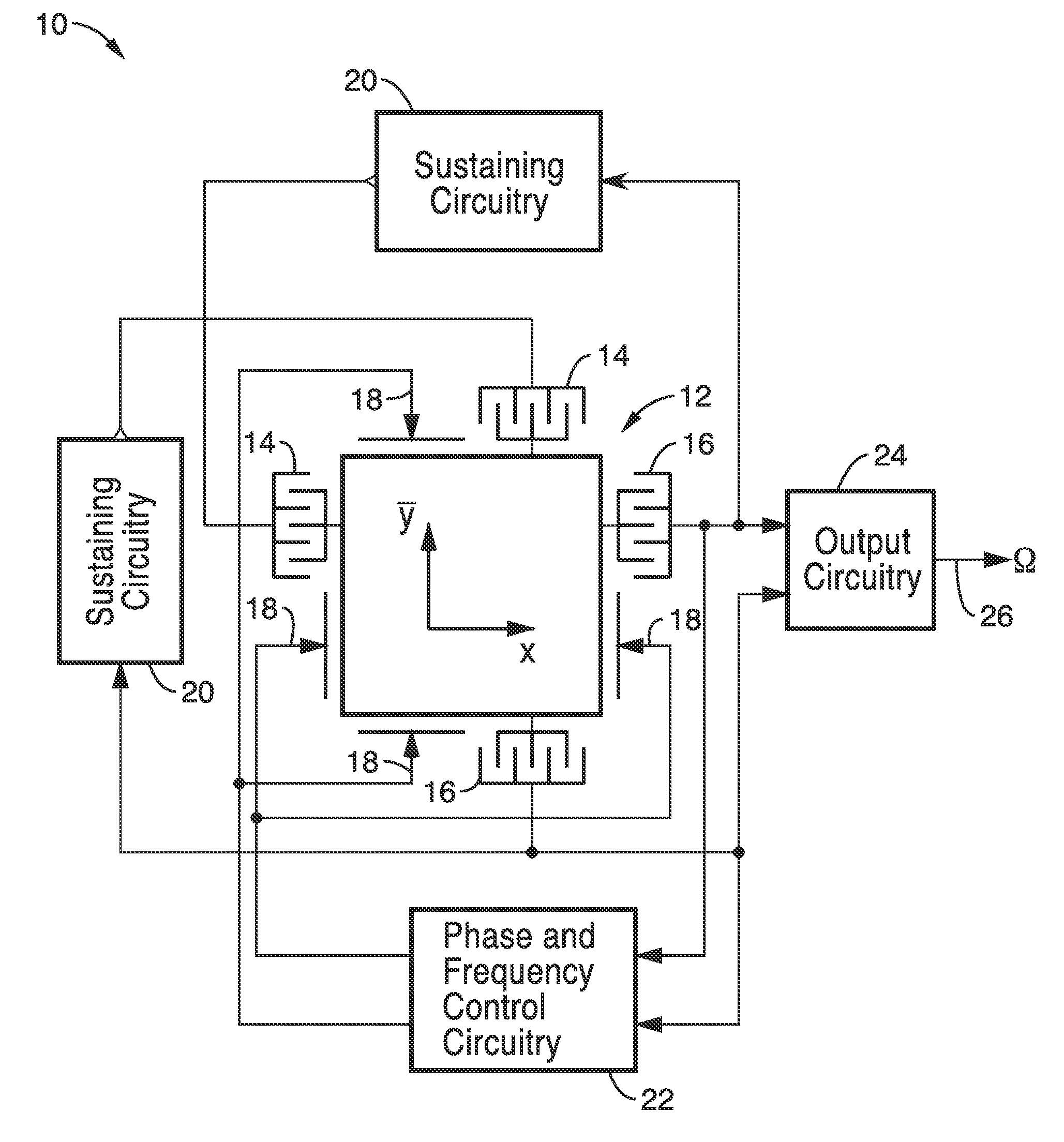

A frequency readout gyroscope is provided, having 2 or 3 axes, in which the frequency of the carrier associated with the oscillation of the proof mass changes while the amplitude stays constant. The invention departs from conventional gyroscopes which rely on measuring transducer sense axis displacement (amplitude modulation) to determine angular input rate. The invention utilizes what could be termed a form of frequency modulation, such as evaluating frequency phase difference between the axes of modulation. Examples include gyroscopes having either a quadrature or Lissajous FM mode of operation, in which angle random walk contribution from the electronics is reduced by approximately two orders of magnitude.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G01C Class
- 17.70 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
