Dynamic logo projection system and method of using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Grant Date -
Nov 16, 2017
app pub date -
May 12, 2016
filing date -
May 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

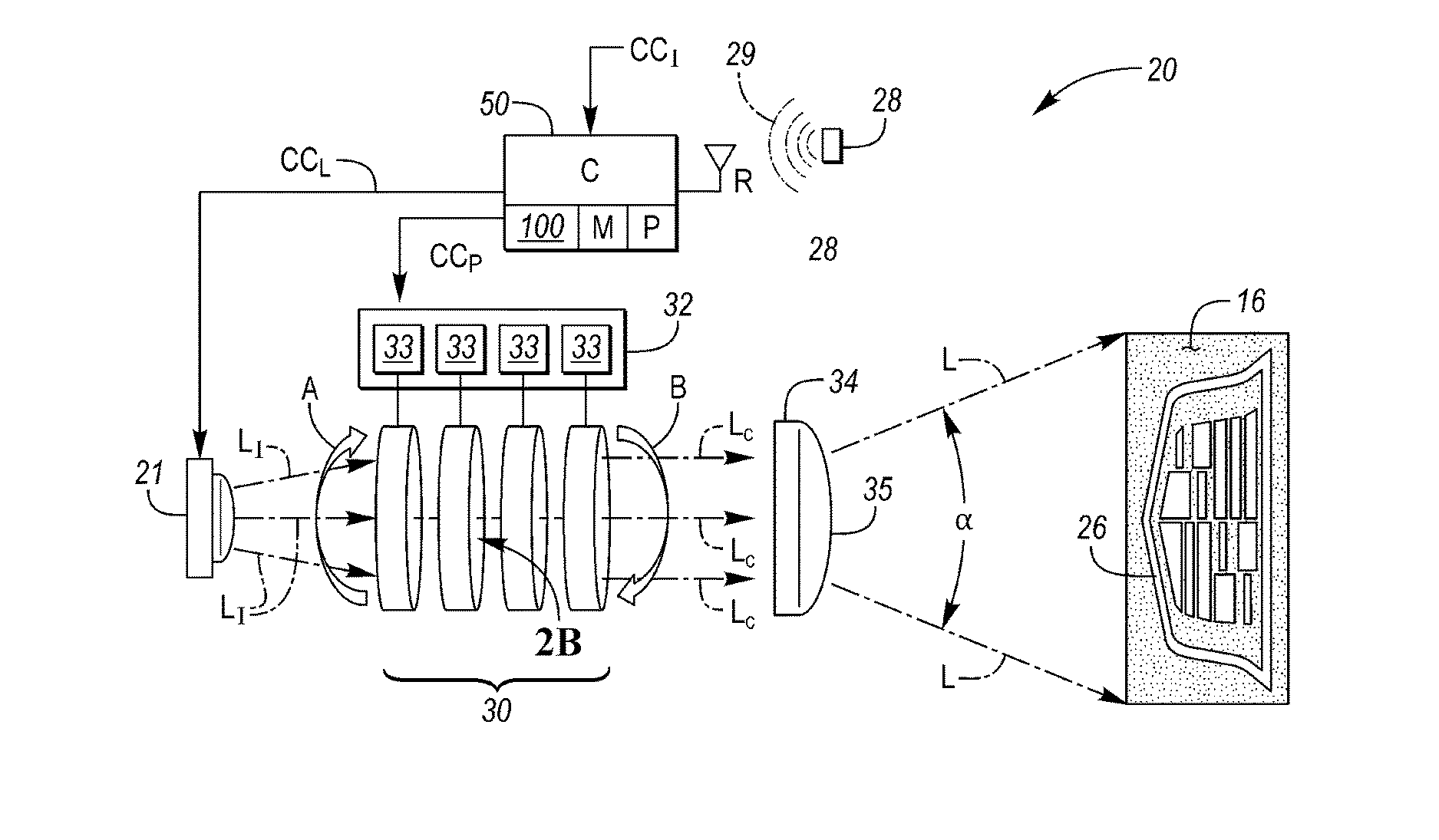

A system for dynamically projecting a logo onto a surface includes a light source, moveable lenses, and an actuator. The light source emits light toward the surface. The lenses are positioned with between the light source and the surface, with each lens having multiple transparent portions configured to permit some of the emitted light to pass through the lens in a corresponding light pattern. Each corresponding light pattern forms a different part of the logo. The actuator moves the lenses with respect to the emitted light in response to a control signal to thereby cause projection of the logo onto the surface. A vehicle includes a body having a door, road wheels in contact with a road surface, and the system which projects the logo onto the road surface proximate the door. The controller may be programmed to execute a method for projecting the logo.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G02B Class
- 28.28 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
