POWER TRANSMISSION APPARATUS FOR VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Grant Date -
N/A
app pub date -
Dec 7, 2016
filing date -
Sep 29, 2016
priority date (Note) -
Granted
status (Latency Note)
Importance
Abstract

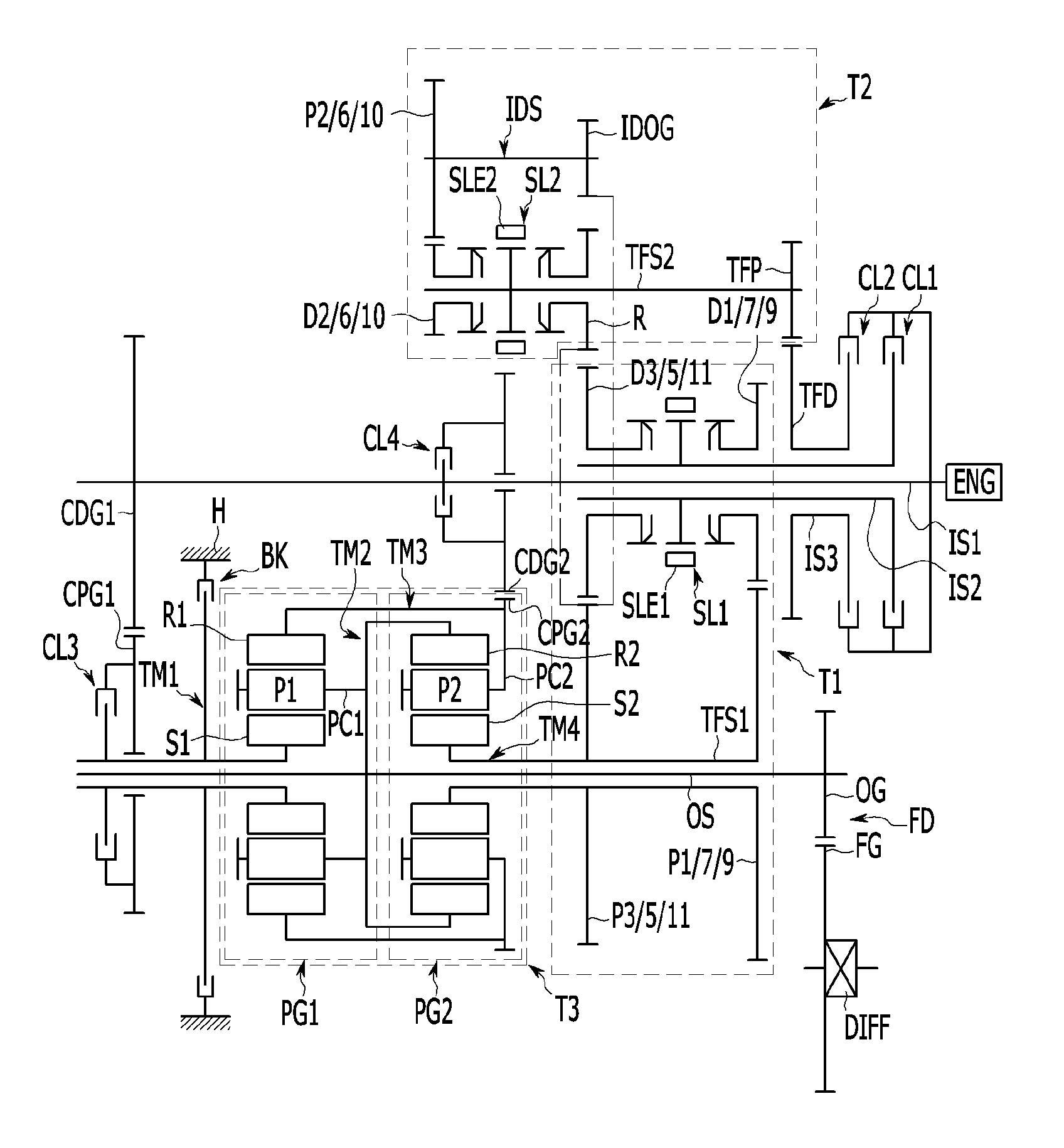

A power transmission apparatus may include an first shifting member receiving the torque of the engine from the second input shaft, changing the torque of the engine into first and second preliminarily shifted torques, and outputting the first and second preliminarily shifted torques; a second shifting member receiving the torque of the engine from the third input shaft, changing the torque of the engine into third and fourth preliminarily shifted torques, and outputting the third and fourth preliminarily shifted torques; and a third shifting member changing the torque of the engine selectively transmitted from the first input shaft and the first preliminarily shifted torque to the fourth preliminarily shifted torque selectively transmitted from the first shifting member or the second shifting member into eleven forward speed stages and one reverse speed stage, and outputting the eleven forward speed stages and the one reverse speed stage.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16H Class
- 0 % this patent is cited more than
- 7 Age
