Attachment method and system to install components, such as tip extensions and winglets, to a wind turbine blade
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Grant Date -
Nov 10, 2016
app pub date -
May 7, 2015
filing date -
May 7, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

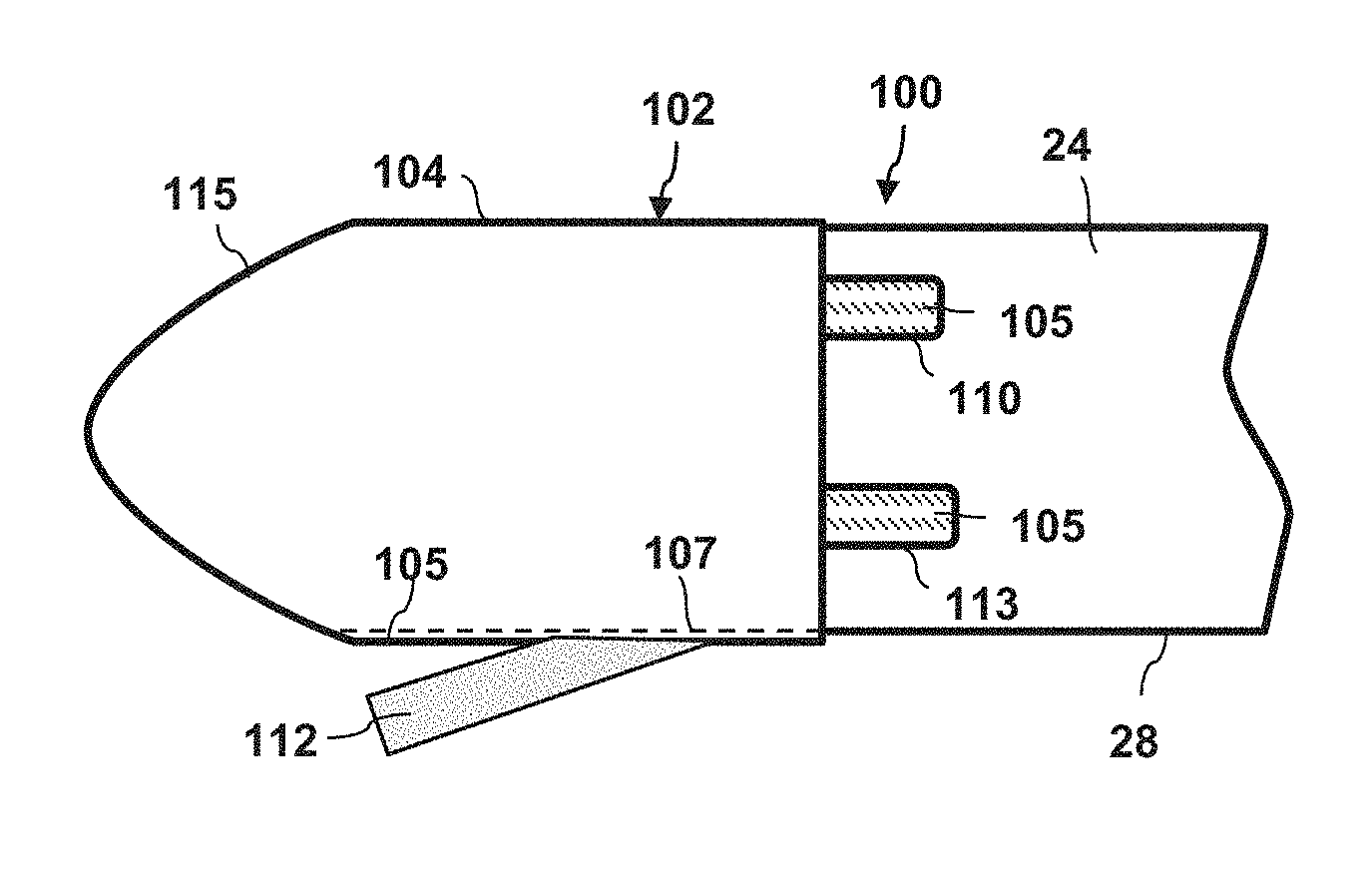

A method for installing an add-on component onto a tip of a wind turbine blade, the associated blade, and the component, are provided. The add-on component has a span-wise end and a separated trailing edge, and is slidable onto the blade tip. Strips of a double-sided adhesive tape are attached onto either or both pressure and suction side surfaces of the blade adjacent the blade tip, or onto interior surfaces of the add-on component, the tape strips having a release liner on an opposite exposed side thereof. An extension tail is configured with the release liner that extends beyond the span-wise end of the add-on component when the add-on component is placed and held at a desired position on the blade. The add-on component is slid onto and maintained in position on the blade tip and, starting from the tape strip furthest from the separated trailing edge, extension tails of the respective tape strips are sequentially peeled through the separated trailing edge and away from the add-on component.
First Claim
Other Claims data not available
Family
International Classification(s)
- B29C:SHAPING OR JOINING OF PLASTICS; SHAPING OF SUBSTAN....
- D05C:EMBROIDERING
- B63H:MARINE PROPULSION OR STEERING
- F03B:MACHINES OR ENGINES FOR LIQUIDS
- F04D:NON-POSITIVE-DISPLACEMENT PUMPS
- F03D:WIND MOTORS
- B64C:AEROPLANES; HELICOPTERS
- F01D:NON-POSITIVE-DISPLACEMENT MACHINES OR ENGINES, e.g....
- A46D:MANUFACTURE OF BRUSHES
- B44C:PRODUCING DECORATIVE EFFECTS
- B32B:LAYERED PRODUCTS, i.e. PRODUCTS BUILT-UP OF STRATA....
- 2015 Application Filing Year
- B29C Class
- 5693 Applications Filed
- 4194 Patents Issued To-Date
- 73.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B29C Class
- 44.15 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
