Bearing outer race retention during high load events
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Nov 23, 2015
filing date -
Nov 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

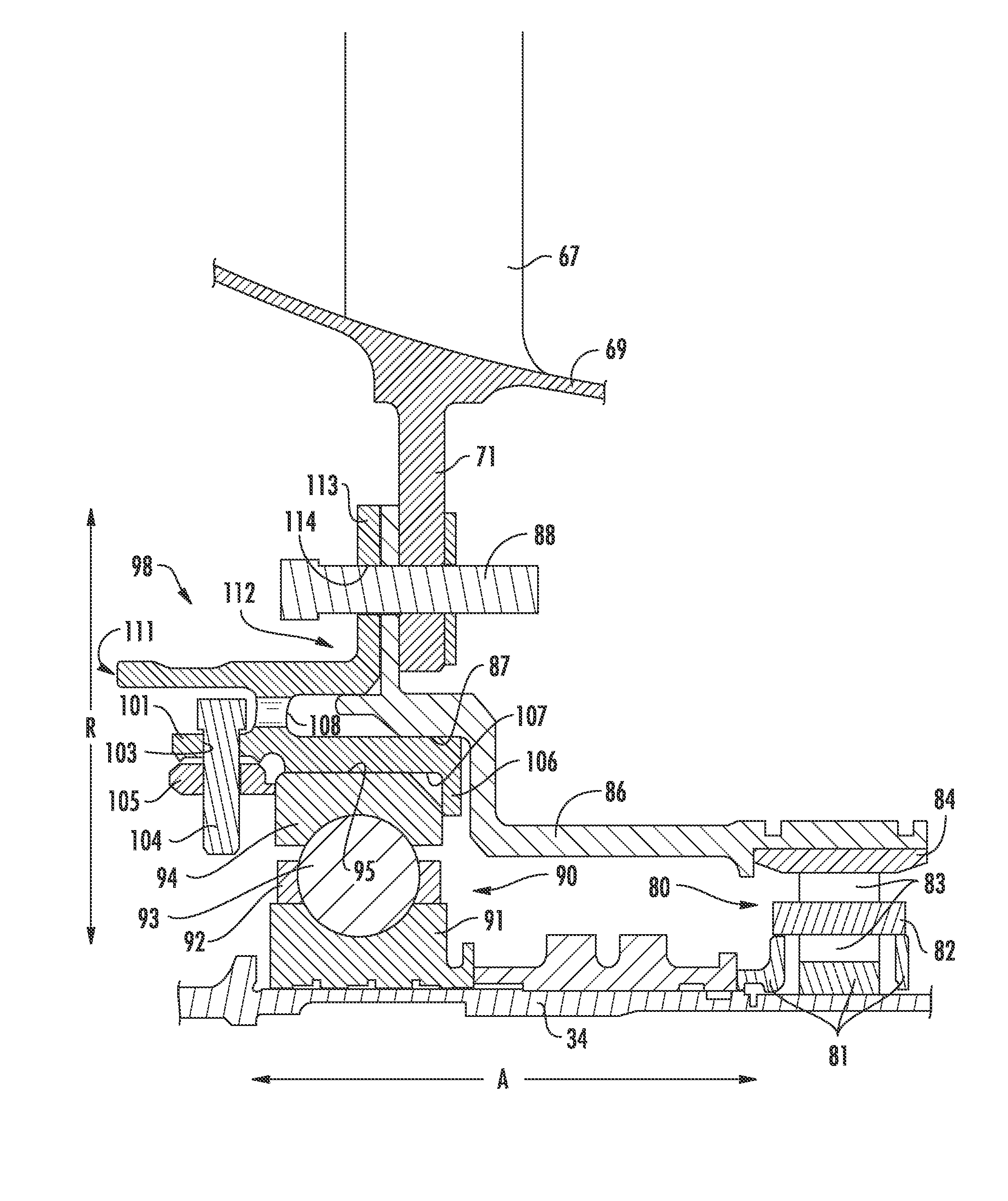

A housing for retention of the outer race of a bearing of a gas turbine engine includes an arrangement of spring fingers that yields a lightweight housing capable of withstanding very high radial loads combined with very high torsional windup and axial thrust load. Controlled circumferential gaps on both sides of each spring finger limit the deflection and self-arrest the distortion of the housing. An axial gap is created on the aft end by a portion of the spring finger beam structure that opposes an axial face of the housing and limits the axial distortion. A radial gap created between interface hardware of the housing and the inner retention housing also acts to retain the spring finger housing under load in a radial direction.
