Articles for high temperature service and method for making
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Dec 12, 2014
filing date -
Dec 12, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

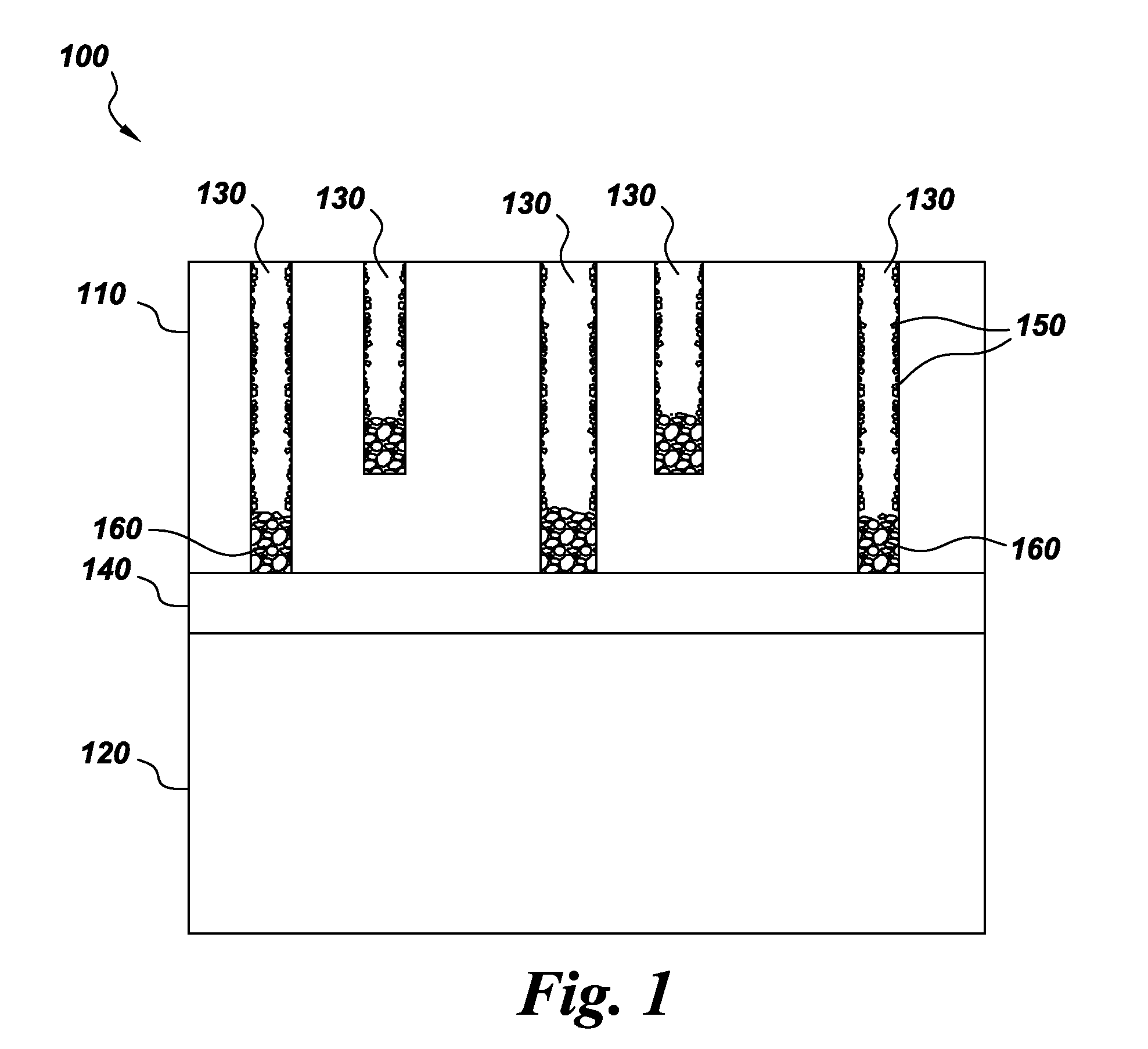

Articles having coatings that are resistant to high temperature degradation are described, along with methods for making such articles. The article comprises a coating disposed on a substrate. The coating comprises a plurality of elongated surface-connected voids. The article further includes a protective agent disposed within at least some of the voids of the coating; the protective agent comprises a substance capable of chemically reacting with liquid nominal CMAS to form a solid crystalline product outside the crystallization field of said nominal CMAS. This solid crystalline product has a melting temperature greater than about 1200 degrees Celsius. The method generally includes disposing the protective agent noted above within the surface connected voids of the coating at an effective concentration to substantially prevent incursion of CMAS materials into the voids in which the protective agent is disposed.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- C23C Class
- 2649 Applications Filed
- 2034 Patents Issued To-Date
- 76.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- C23C Class
- 32.86 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
