Rotating turbine component with preferential hole alignment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jul 30, 2013
filing date -
Aug 6, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

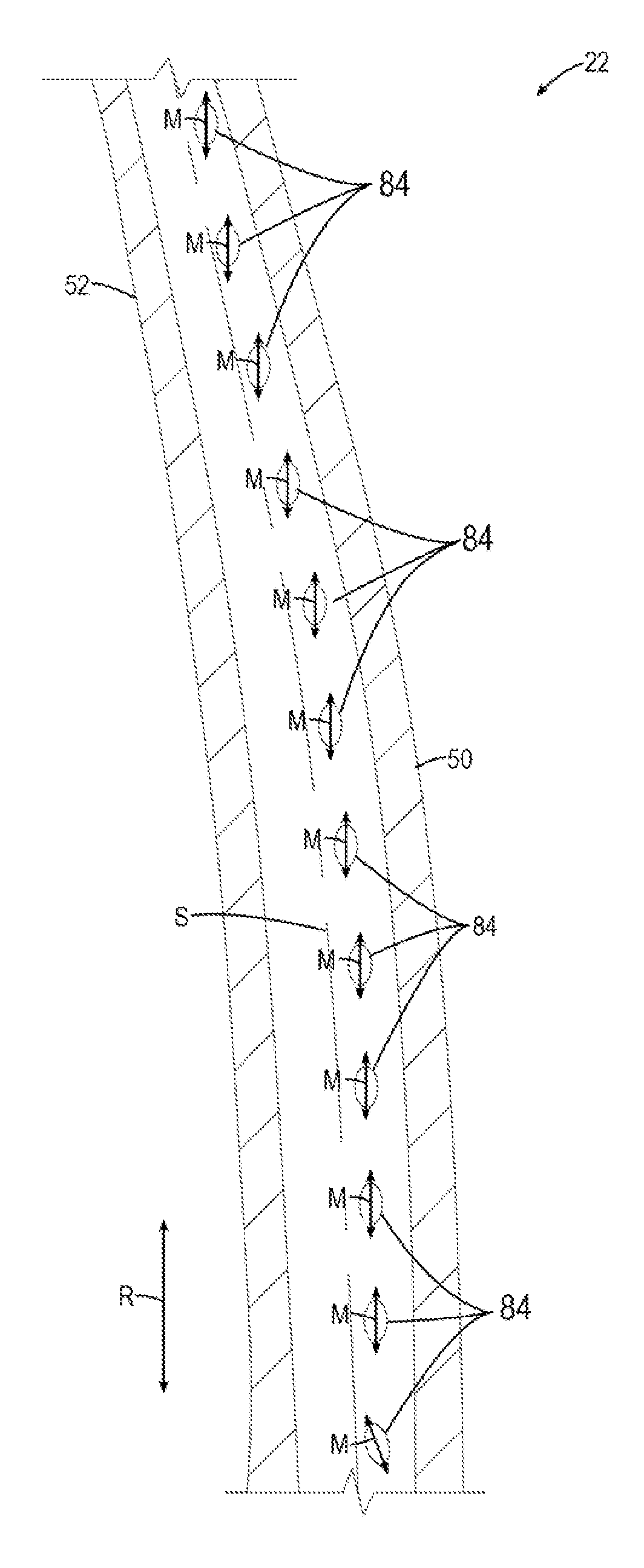

A turbine airfoil includes: a concave pressure sidewall and a convex suction sidewall joined together at a leading edge and a trailing edge, and extending between a root and a tip; an internal rib extending between the pressure sidewall and the suction sidewall; and a crossover hole formed in the rib, the crossover hole having a noncircular cross-sectional shape with a major axis defining a maximum dimension of the cross-sectional shape; wherein the major axis of the crossover hole lies in plane with the rib and is non-parallel to an imaginary curvilinear lateral centerline which defines a locus of points lying halfway between the pressure and suction sidewalls. The orientation of the crossover holes minimizes stress concentration caused by the presence of the crossover holes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23P Class
- 1216 Applications Filed
- 880 Patents Issued To-Date
- 72.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23P Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
