Turbine rotor for an exhaust gas turbine and method for producing the turbine rotor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Mar 20, 2013
filing date -
Mar 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

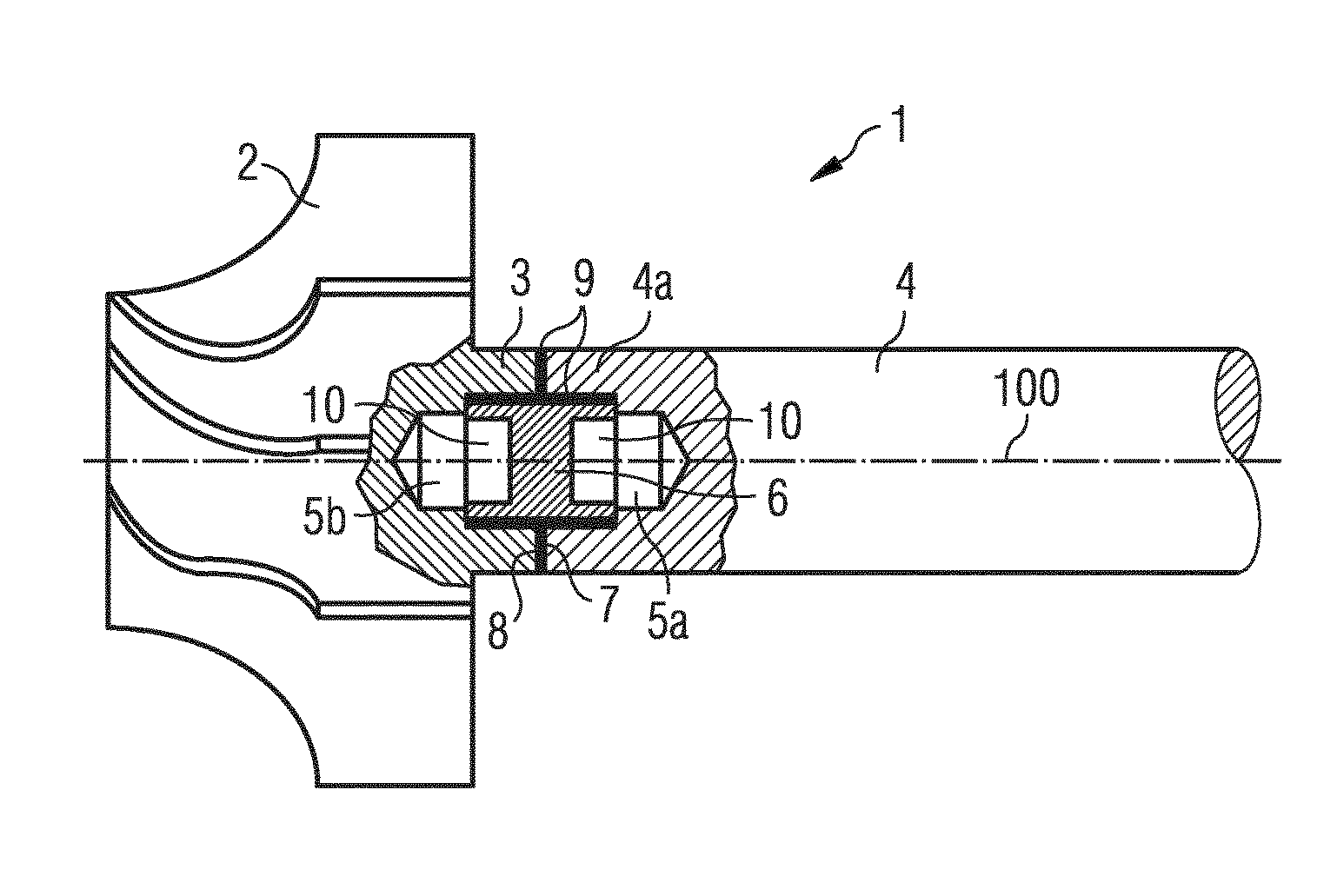

A turbine rotor for an exhaust gas turbine has a turbine rotor wheel made of a highly heat-resistant metal alloy and a rotor shaft made of steel. A rotor wheel hub and a rotor shaft end are connected to each other in a metallurgical bond by way of a solder connection. The rotor shaft end and/or the rotor wheel hub is formed with a central recess, which acts as a thermal choke. A closing plug is arranged in the respective recess, forming a closed cavity with the recess and closing off the recess toward the respective end face. The solder connection is formed between the end faces of the rotor wheel hub and the rotor shaft, between the closing plug and the rotor wheel hub, and between the closing plug and the rotor shaft.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23K Class
- 1742 Applications Filed
- 1525 Patents Issued To-Date
- 87.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B23K Class
- 37.97 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
