Dual manual disengagement mechanism for an electric transit door operator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Apr 6, 2015
filing date -
Apr 6, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

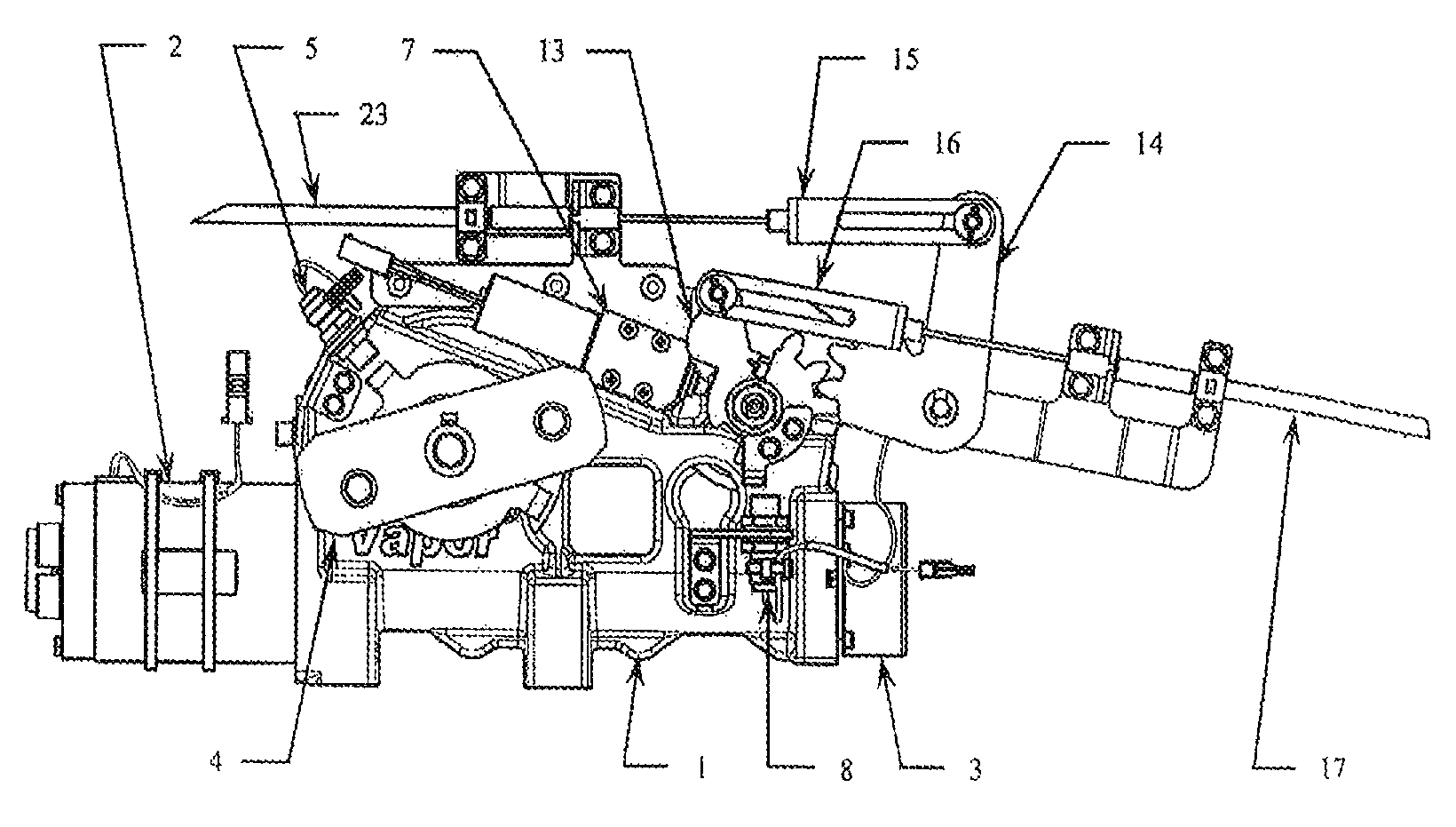

A dual manual disengagement mechanism for an electric transit door operator having a disengagement shaft extending from the operator comprises a first pinion lever (3) secured to the disengagement shaft, a second pinion lever (14) intermeshed with the first pinion gear, a first cable (17) connected to the first pinion-lever via a clevis end (15) having an elongate slot, a second cable (23) connected to the second pinion lever via a clevis end (16) having an elongate slot. The length of the slots in the clevis ends is such that the pulling of one cable to rotate the disengagement shaft will not cause a tug on the other cable.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E05F Class
- 531 Applications Filed
- 417 Patents Issued To-Date
- 78.54 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- E05F Class
- 32.88 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
