Sheet conveying device and image forming apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Dec 16, 2016
filing date -
Dec 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance

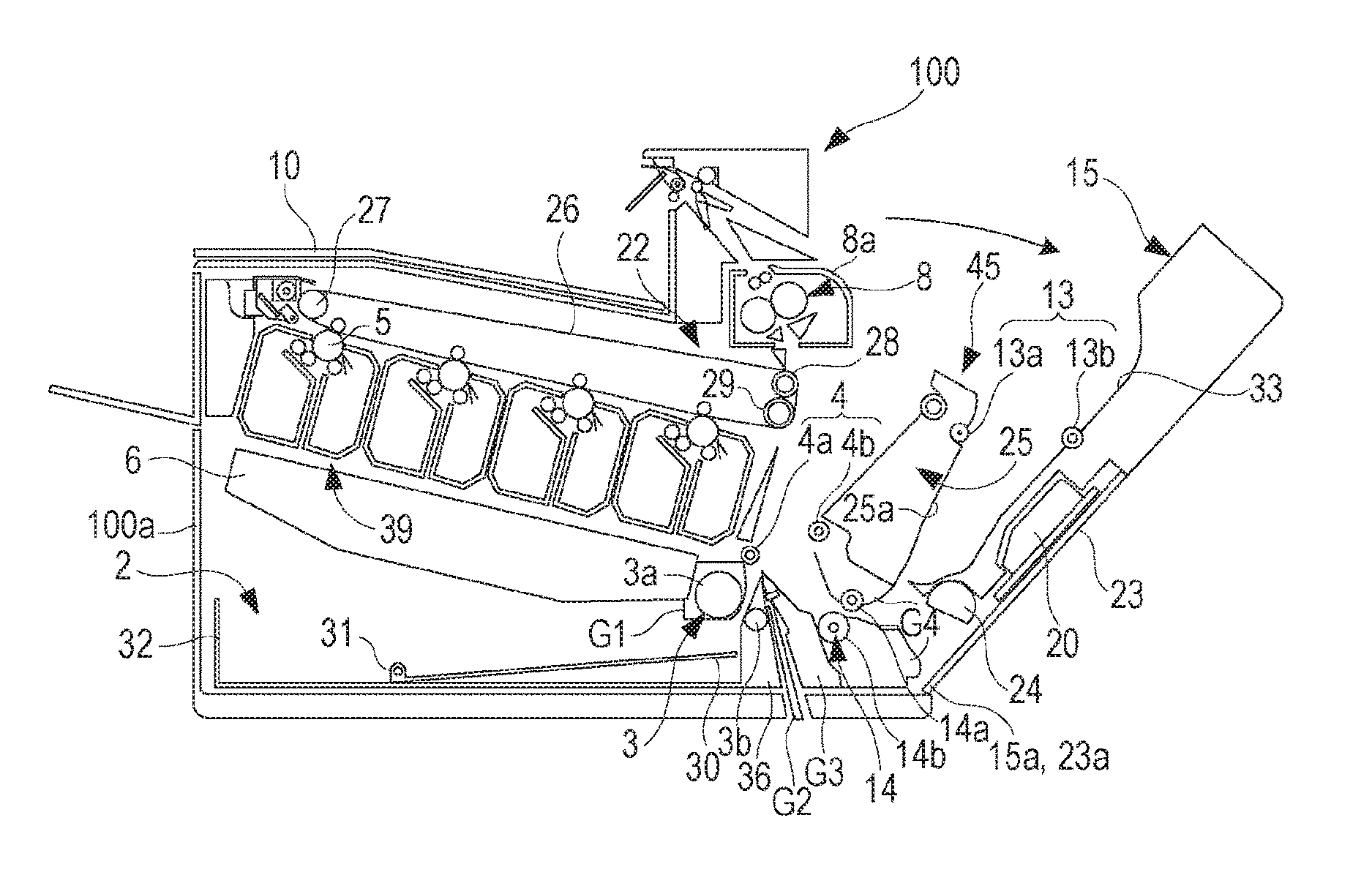

Abstract
A sheet conveying device includes a third pivoting guide member located between a first pivoting guide member on a side of fixed guide members and a second pivoting guide member on a side of an opening/closing member. In a state in which an upstream conveying path and a re-conveying path are formed, the first pivoting guide member pivots toward the third pivoting guide member to expand the upstream conveying path when pushed by a sheet conveyed from the upstream conveying path, and the third pivoting guide member pivots toward the first pivoting guide member to expand the re-conveying path when pushed by a sheet conveyed from the re-conveying path.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65H Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
