Device for warning a rotorcraft pilot by means of tactile signals and making use of a trim actuator connected to a flight control member
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
May 28, 2015
filing date -
May 28, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

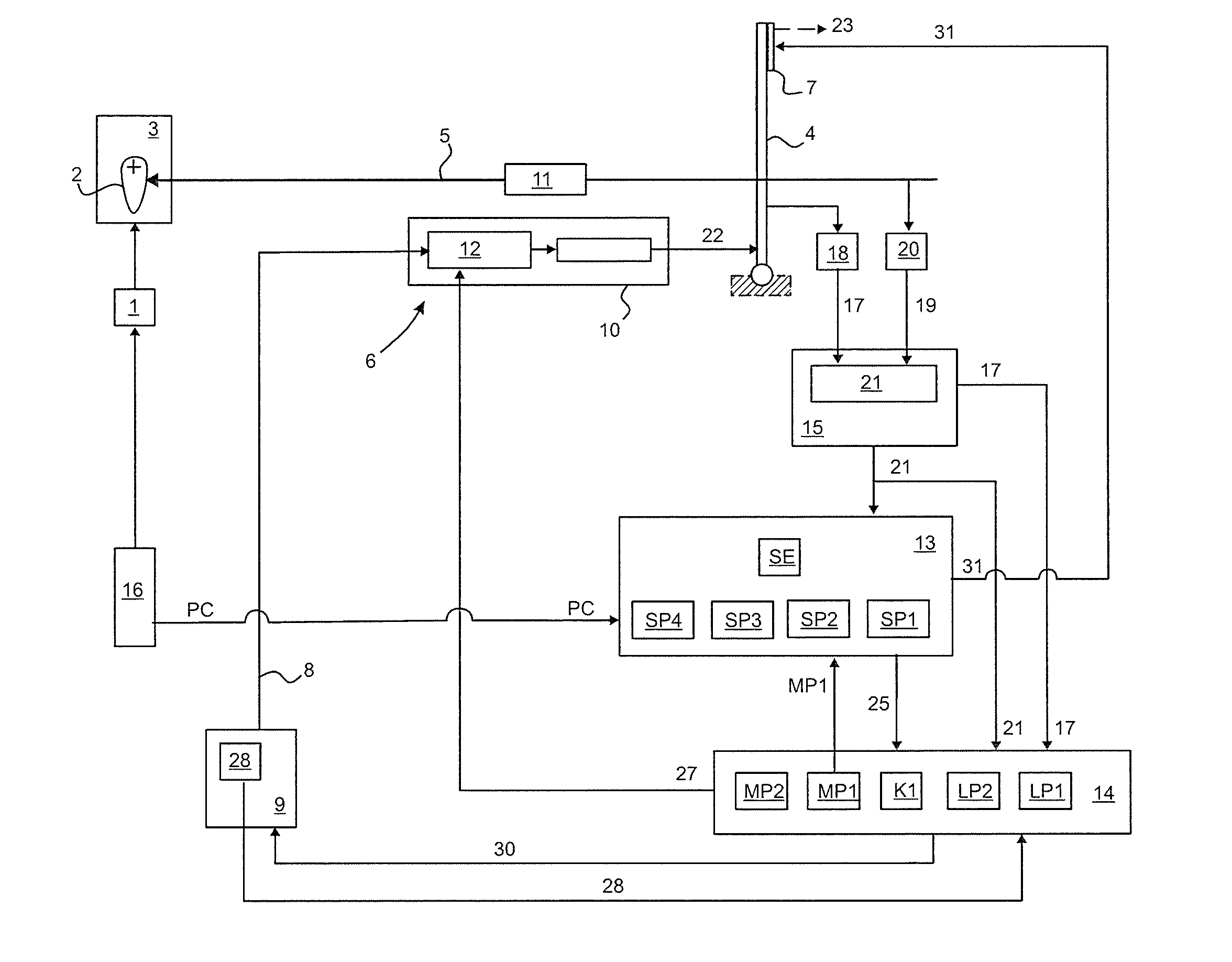

A method of using a tactile signal warning device forming part of a human-operated flight control member of a rotorcraft. The warning device makes use of an anchorable motorized trim actuator for generating a resisting force against movement of the flight control member. The warning device comprises a warning unit that, as a function of a power margin (MP1) calculated by a predictor unit in compliance with a current regulation rating of the power plant and on condition that state data indicates that an autopilot is activated in a higher operating mode, acts to generate an order to activate the trim actuator depending on the conditions under which the flight control member is being moved as identified by a force management unit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G08B Class
- 2670 Applications Filed
- 2238 Patents Issued To-Date
- 83.83 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G08B Class
- 21.50 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
