Multi-material joint assembly, joint and method for a vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Jan 8, 2016
filing date -
Jan 8, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

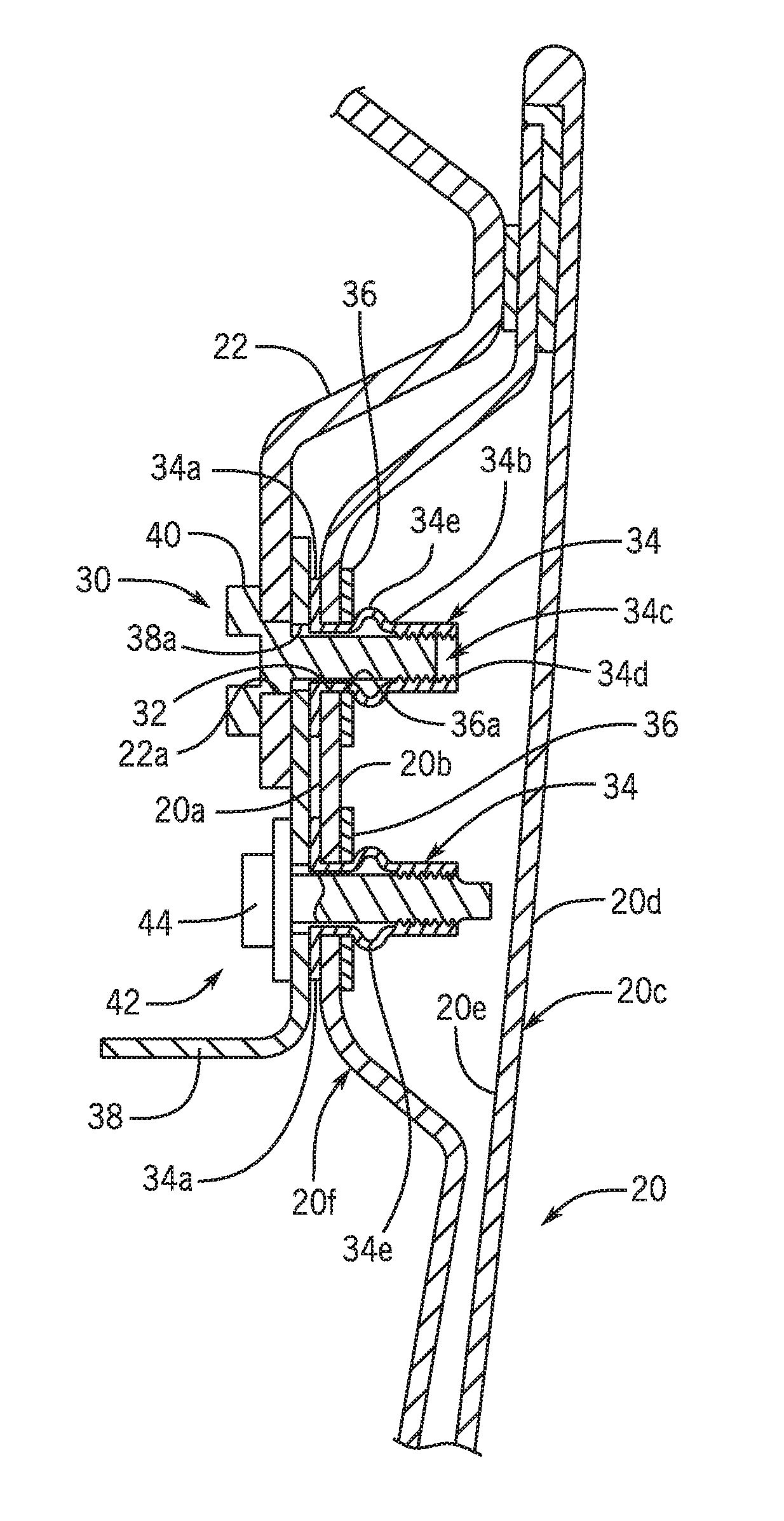

A multi-panel joint assembly, joint and method for a vehicle includes a first panel forming an outer skin on the vehicle, a second panel having a second panel flange portion overlapping the first panel, a third panel having a third panel flange portion overlapping the second panel flange portion, throughholes in registry with one another defined respectively in the first panel, the second panel flange portion, and the third panel flange portion, a rivet nut received through the throughole of the first panel, a fastener received through the throughholes of the second and third panels and threadedly secured to the rivet nut for securing the second and third panels to the first panel, and a washer interposed between the first panel and a deformed portion of the rivet nut for protecting the first panel from being damaged by the deformed portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60K Class
- 2914 Applications Filed
- 2276 Patents Issued To-Date
- 78.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60K Class
- 24.10 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
