Vehicular object detection device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Mar 8, 2017
filing date -
May 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

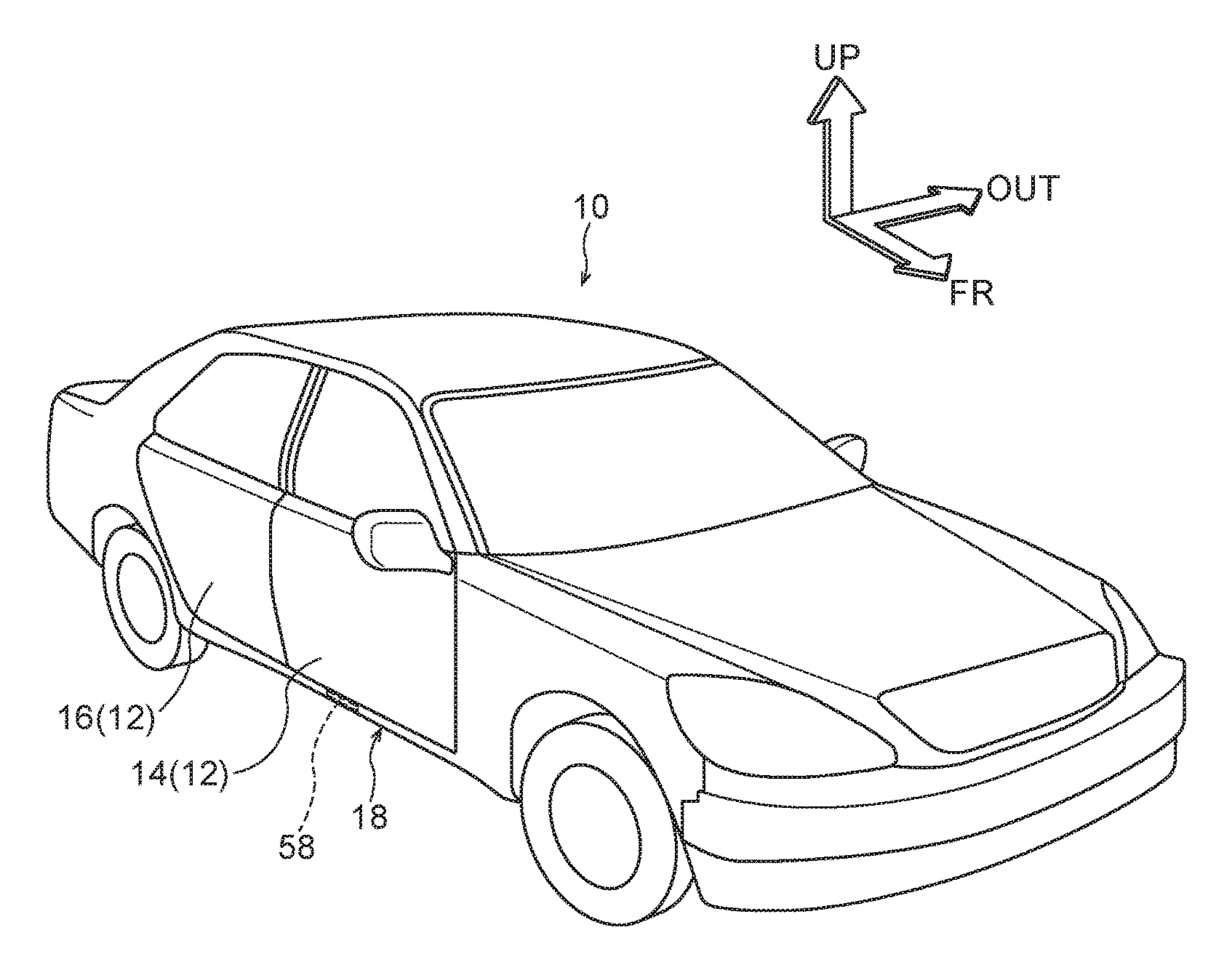

A vehicular object detection device including: a rocker section that extends substantially along a vehicle front-rear direction, at a lower side of a side section of a vehicle, and that is configured by plural rocker configuration members; and an object detection sensor that is disposed in the rocker section and that detects an object at at least one of a side or the lower side of the vehicle, wherein: among the plural rocker configuration members, a rocker configuration member disposed at a vehicle width direction outer side of the object detection sensor is configured by a resin, or the rocker configuration member disposed at the vehicle width direction outer side of the object detection sensor is formed with a detection opening that is open toward a vehicle outer side at a position corresponding to a transceiver of the object detection sensor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B62D Class
- 20.92 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
