Apparatus and method for electrical power management in a vehicle system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Mar 30, 2015
filing date -
Mar 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

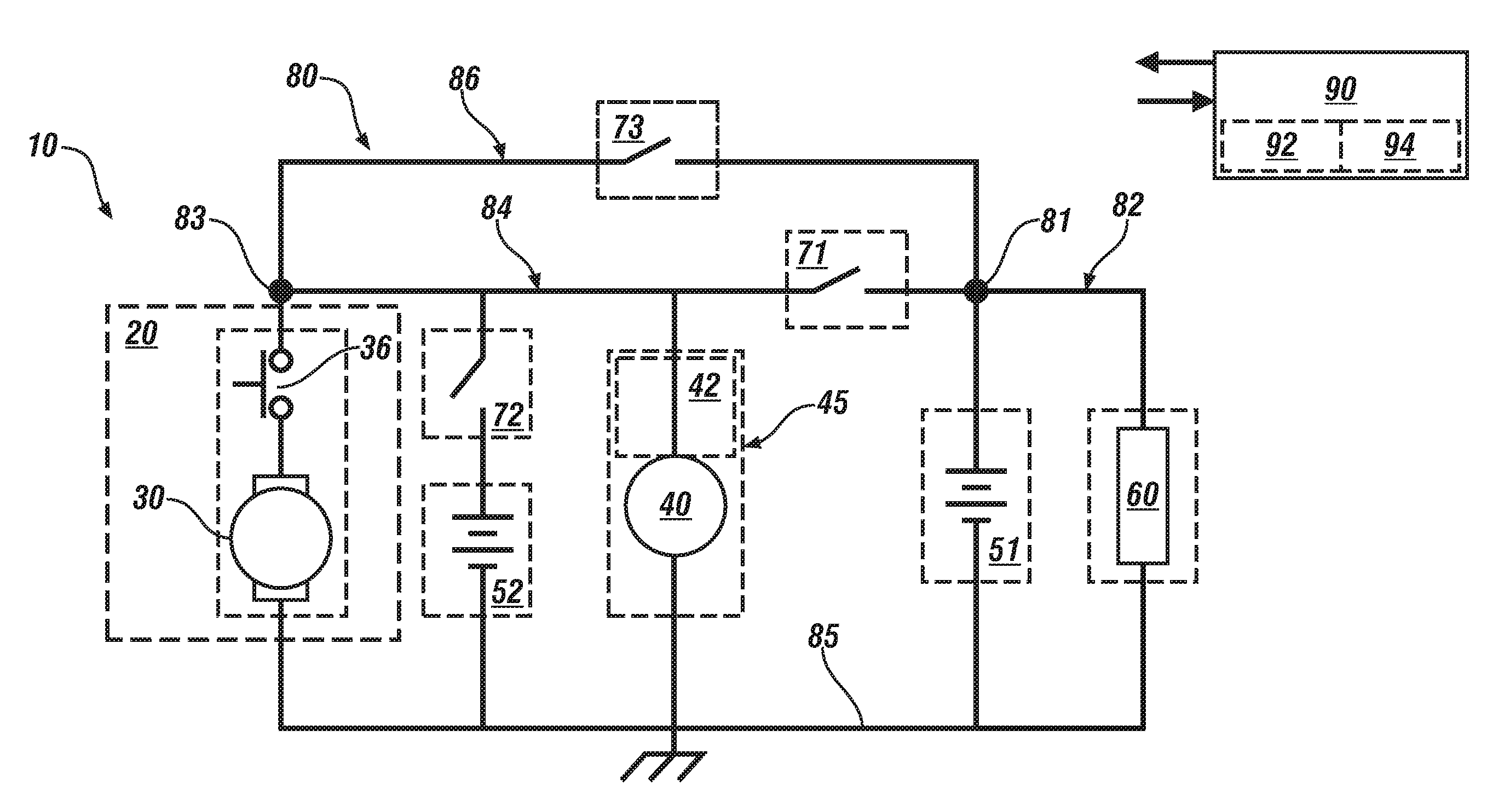

An electric power management system for a vehicle includes a first power bus arranged in parallel with a second power bus between first and second nodes. A third power bus couples a first battery and an auxiliary load at the second node. The second power bus couples a starter, a second battery and a generator at the first node, and selectively couples the first node to the second node when a first switch is activated. The second battery couples to the first node when a second switch is activated and the engine starter couples to the first node when a starter switch is activated. The second power bus couples the first node to the second node when a third switch is activated. A controller monitors states of charge of the first battery and the second battery and controls activations of the first switch, the second switch and the third switch.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- F02N Class
- 284 Applications Filed
- 234 Patents Issued To-Date
- 82.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- F02N Class
- 25.78 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
