Vehicle storage container with multi-function, multi-segment articulated door assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Apr 26, 2016
filing date -
Apr 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

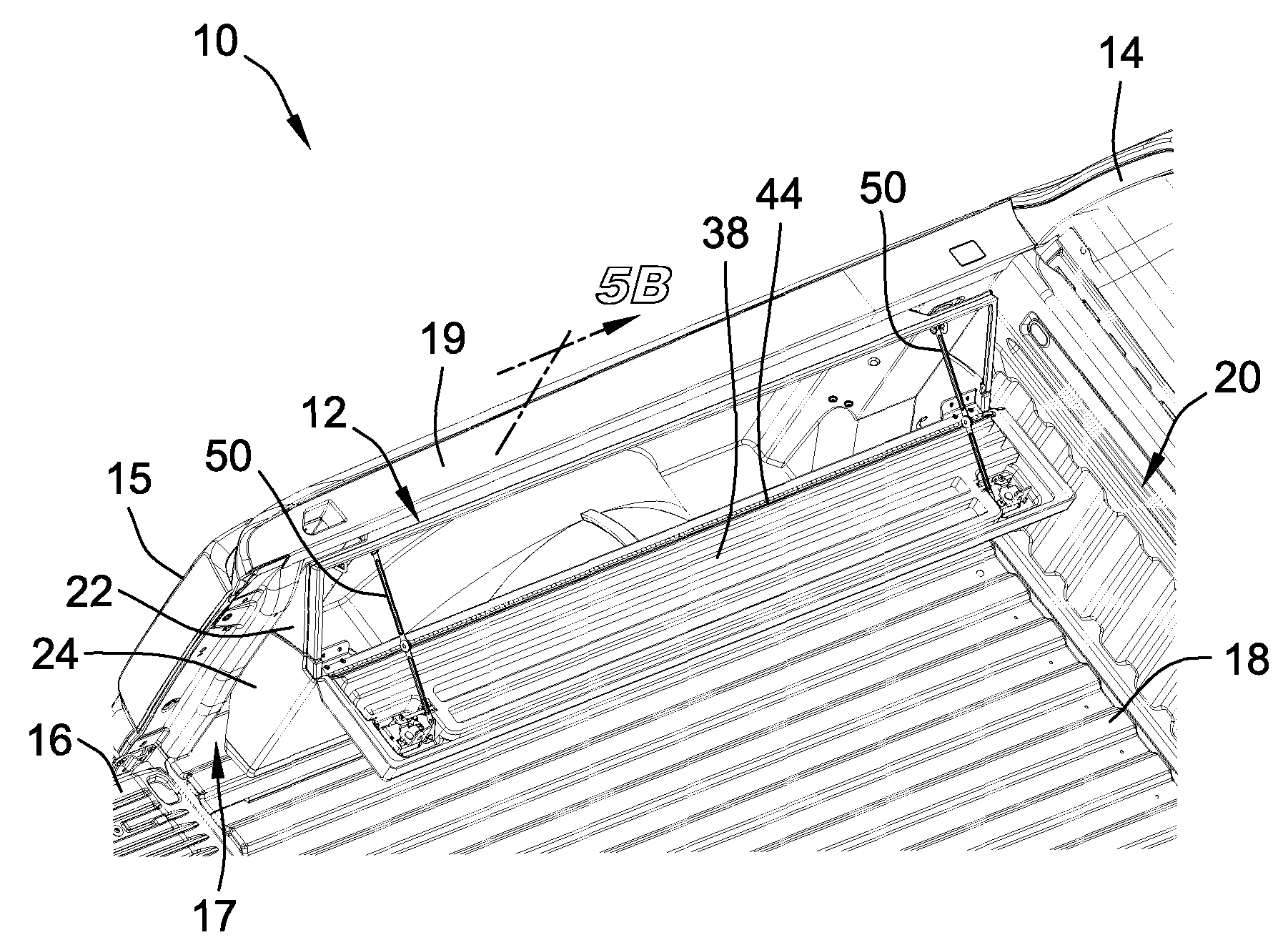

Disclosed are vehicle storage containers, methods for making and methods for using vehicle storage containers, and motor vehicles with utility storage containers. Disclosed, for example, is a utility storage container for a motor vehicle. The utility storage container includes a container basin that attaches to the vehicle body and stows within the vehicle's cargo compartment. The container basin includes multiple sidewalls projecting from a base to cooperatively define a basin opening. An articulated door assembly includes a first door segment pivotably coupled to the container basin to transition the door assembly between a closed position, whereat the door segments cooperatively cover the basin opening, and a full-open position, whereat the door segments uncover the opening. A second door segment is pivotably coupled to the first door segment to transition the door assembly between the closed position and a half-open position, whereat the second door segment partially uncovers the basin opening.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- E06B Class
- 1055 Applications Filed
- 752 Patents Issued To-Date
- 71.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- E06B Class
- 38.94 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
