Tank
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Mar 28, 2016
filing date -
Sep 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

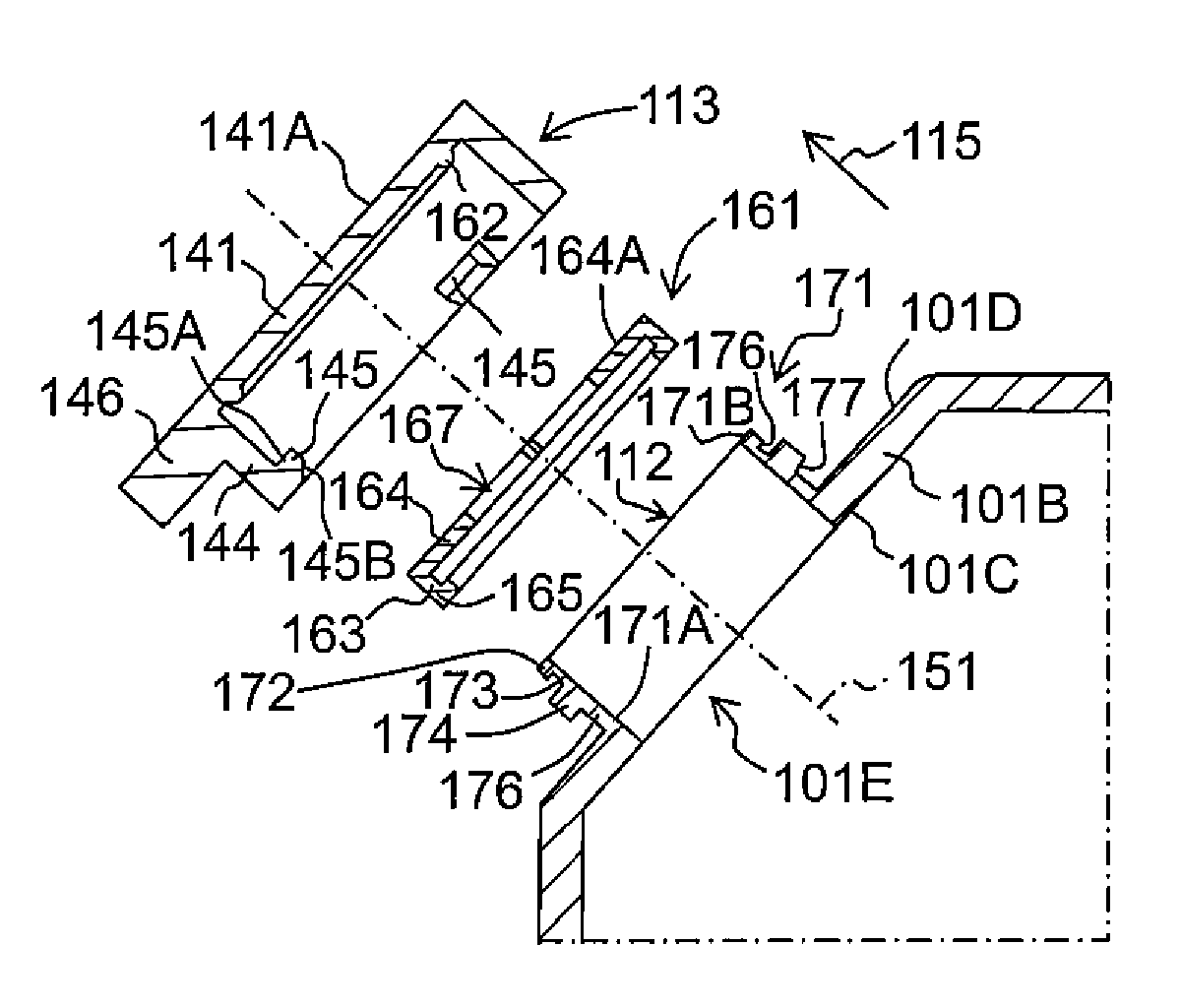

There is provided a tank including: a liquid storage chamber; an outer wall having an inner surface and an outer surface; a cylindrical wall; an inlet port; an outlet port; and a cap for the inlet port. The cap has a seal portion configured to contact an inner circumferential surface of the cylindrical wall or of the outer wall defining the inlet port, or contact an end surface of the cylindrical wall exposed to the outside of the tank, in a state that the cap is installed in the inlet port; and a plurality of stoppers each of which has an abutting surface configured to contact the tank toward the first direction under a condition that the cap is being moved toward the first direction from the state of being installed in the inlet port.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B41J Class
- 2975 Applications Filed
- 2517 Patents Issued To-Date
- 84.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
