Power tool with pyrotechnic lockout
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Mar 4, 2016
filing date -
Mar 12, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

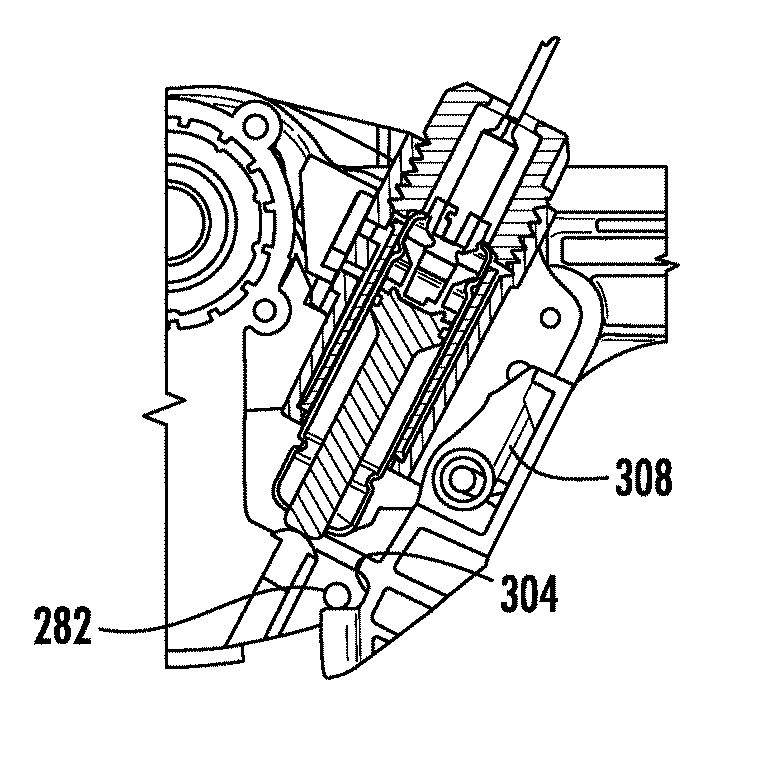

A power tool assembly includes a workpiece support surface, a latch movable between a first latch position whereat a drop arm assembly cannot be moved from a first position whereat a shaping device does not extend above the workpiece support surface to a second position whereat the shaping device extends above the workpiece support surface, to a second latch position whereat the drop arm assembly can be moved from the first position to the second position, an actuator housing configured to receive an actuator device, and a reaction plug configured to be selectively seated with the actuator housing, the reaction plug configured such that when an actuator device is installed in the actuator housing and the reaction plug is moved from an unseated position to a fully seated position, the reaction plug forces the actuator device to move the latch from the first latch position to the second latch position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B27G Class
- 64 Applications Filed
- 36 Patents Issued To-Date
- 56.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B27G Class
- 60.87 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
