Information processing apparatus

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9867307
SERIAL NO

15298684

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

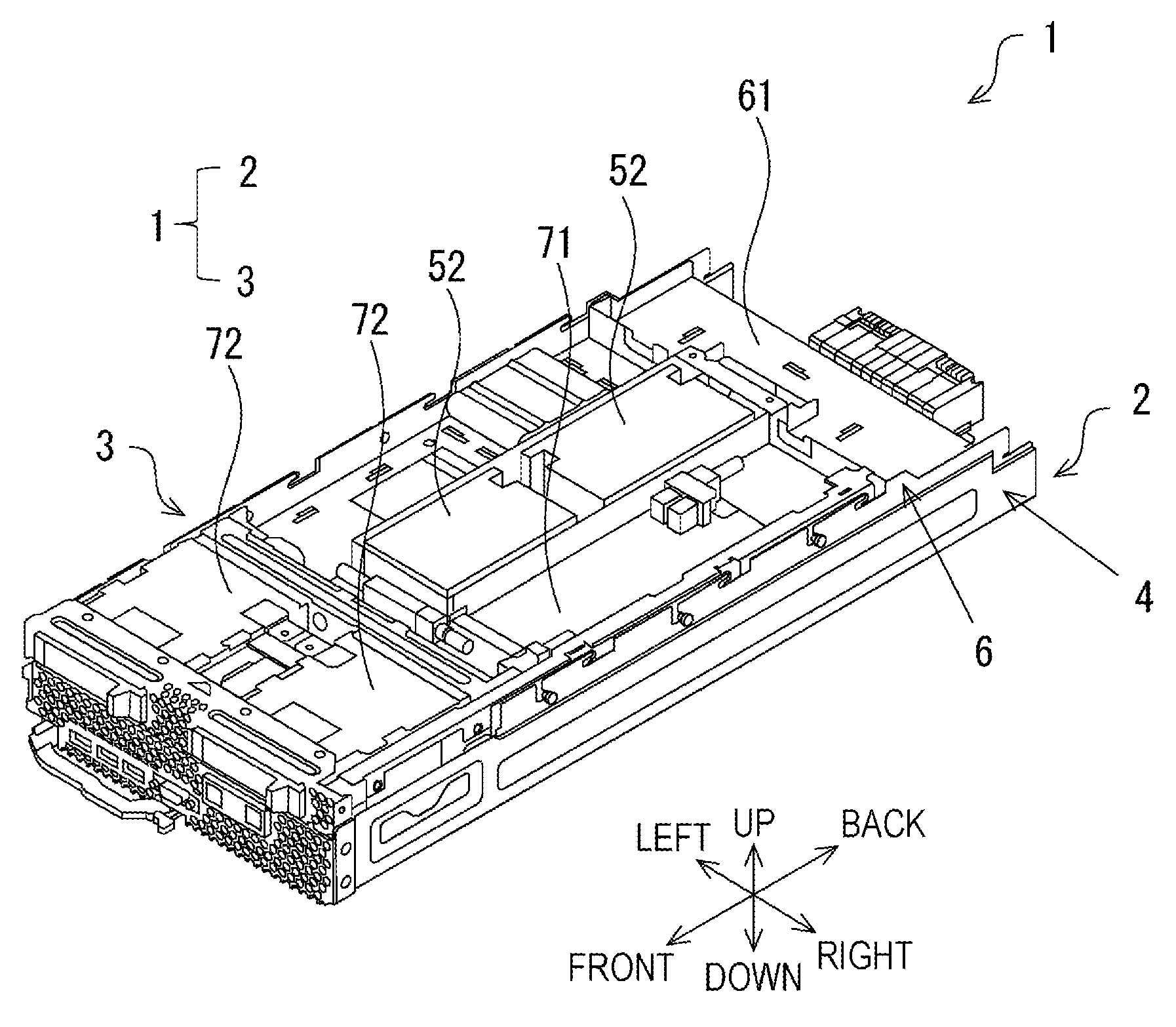

An information processing apparatus includes a lower unit having a circuit board on which first electronic components are mounted and also having a chassis in which the circuit board is mounted at a bottom, an upper surface of the chassis being open; and an upper unit having a tray member detachably attached to the chassis and also having second electronic components mounted at a bottom of the tray member, the upper unit being stacked on the lower unit; wherein the upper unit has a connector board attached to the tray member, having a first and a second connectors, the first connector being fitted to a board-side connector on the circuit board, the second connector being electrically connected to the second electronic components, and an opening is formed at the bottom of the tray member, the first connector and the board-side connector being mutually fitted through the opening.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
FUJITSU LIMITED1-1 KAMIKODANAKA 4-CHOME NAKAHARA-KU KAWASAKI-SHI KANAGAWA 211-8588

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Hori, Kazunori Kawasaki, JP 4 33
Kurosaki, Keitaro Kawasaki, JP 3 23

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 5 Citation Count
  • H05K Class
  • 23.52 % this patent is cited more than
  • 7 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges45012521444514421101 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7081 - 90010020030040050060070080090010001100120013001400

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Jul 9, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Jul 9, 2029
