Electrical connection box and wire harness
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 21, 2016
filing date -
Apr 22, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

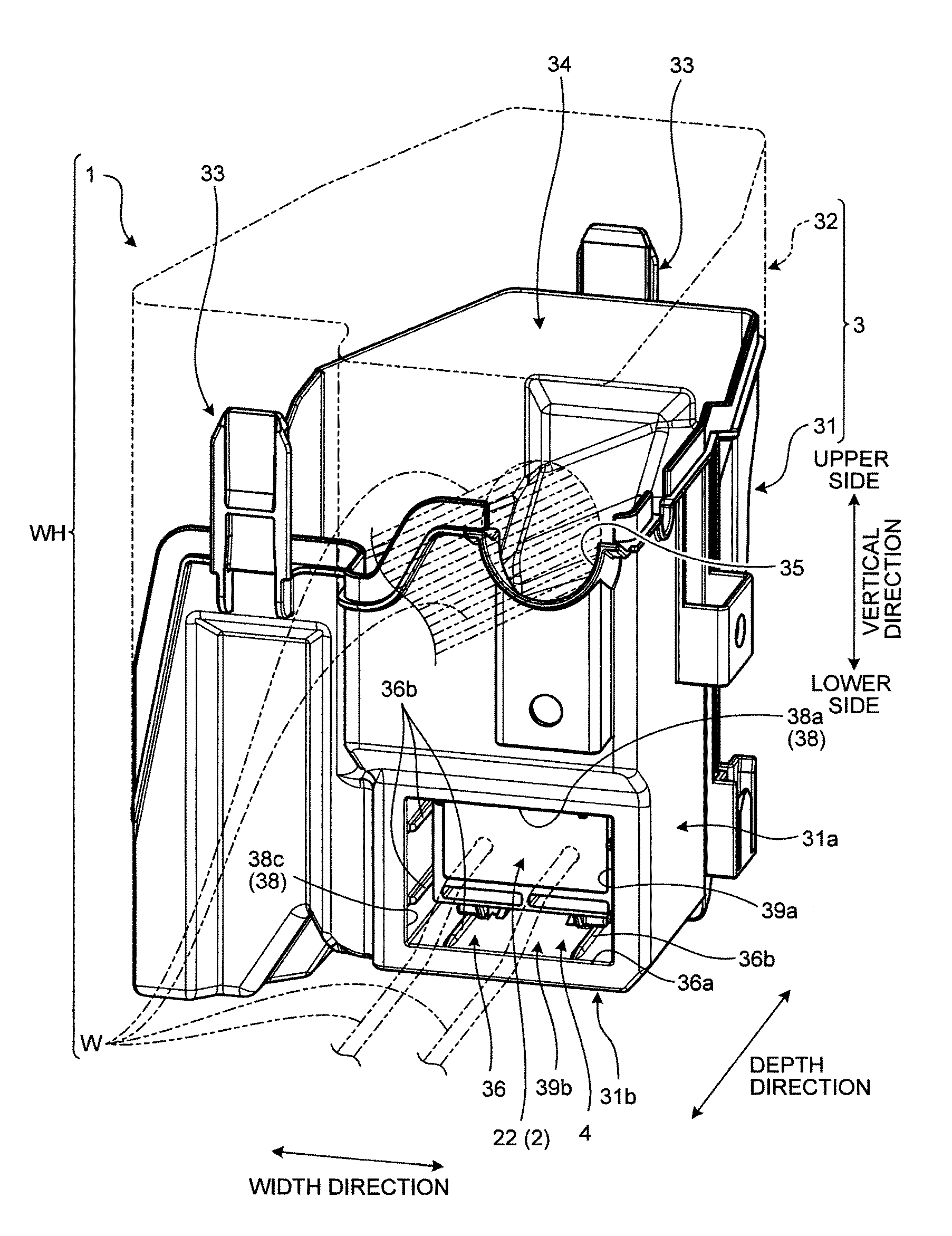

An electrical connection box that is applied to a wire harness includes: a housing that includes a housing space portion that is formed therein and houses therein a first electronic component, and a housing recessed portion that is partitioned below the housing space portion in a vertical direction by a partition wall portion, closed on one side in a horizontal direction, provided with an opening on the other side in the horizontal direction, and houses therein a second electronic component; and a latch mechanism that is positioned within the housing recessed portion and latches the second electronic component and the housing in a state that the second electronic component is housed in the housing recessed portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
