Ball grid array system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jan 7, 2014
filing date -
Jan 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

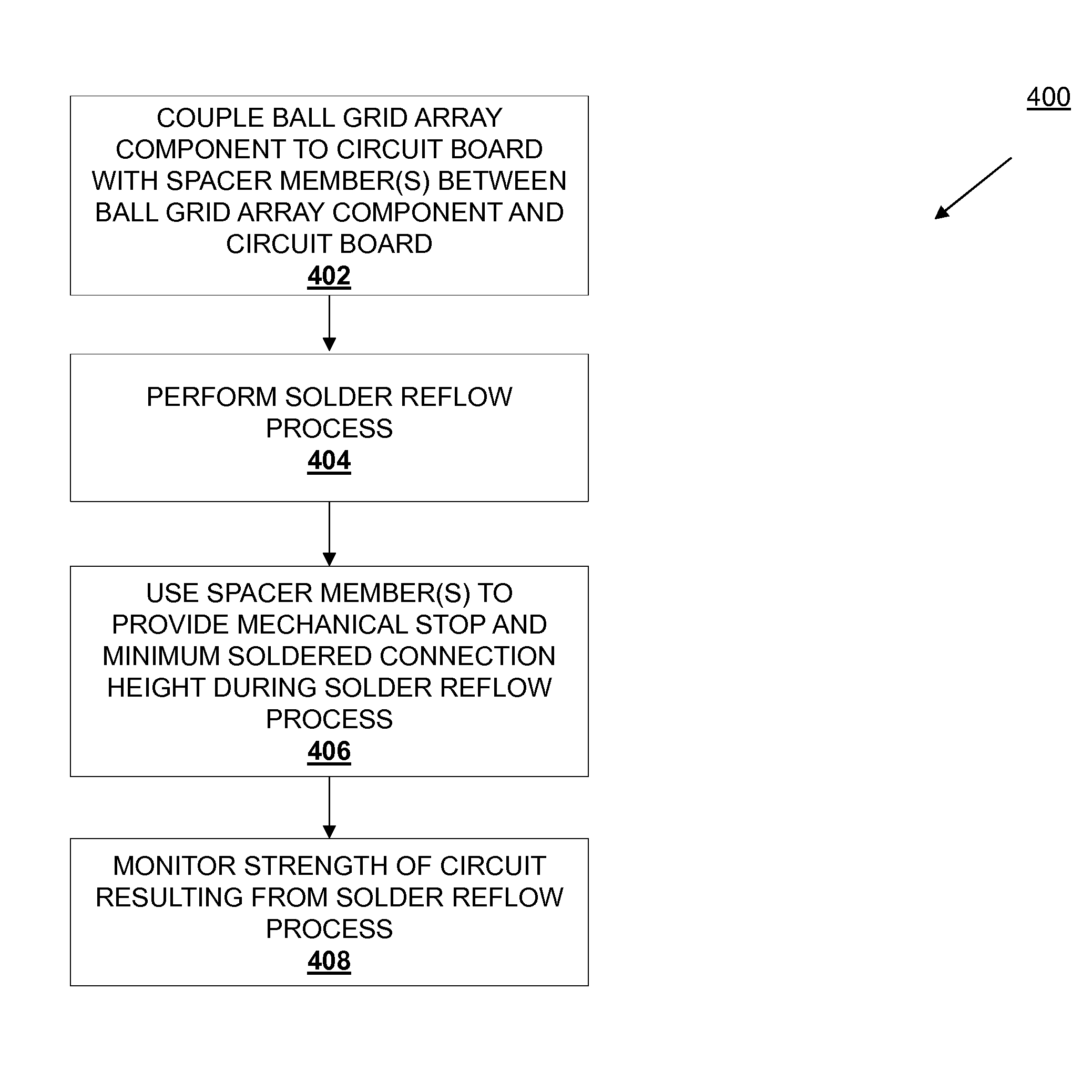

Systems and methods for providing a ball grid array connection include providing a circuit board having a circuit board surface including a plurality of pads. A ball grid array component includes a plurality of solder balls. The ball grid array component is coupled to the circuit board to position each of the plurality of solder balls adjacent a respective one of the plurality of pads. A solder reflow process is then performed to produce a plurality of soldered connections from each of the plurality of solder balls and a respective one of the plurality of pads. At least one spacer member is provided between the ball grid array component and the circuit board during the solder reflow process to provide a mechanical stop between the ball grid array component and the circuit board and a minimum height for each of the plurality of soldered connections.
