Printed wiring board
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Dec 7, 2016
filing date -
Feb 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

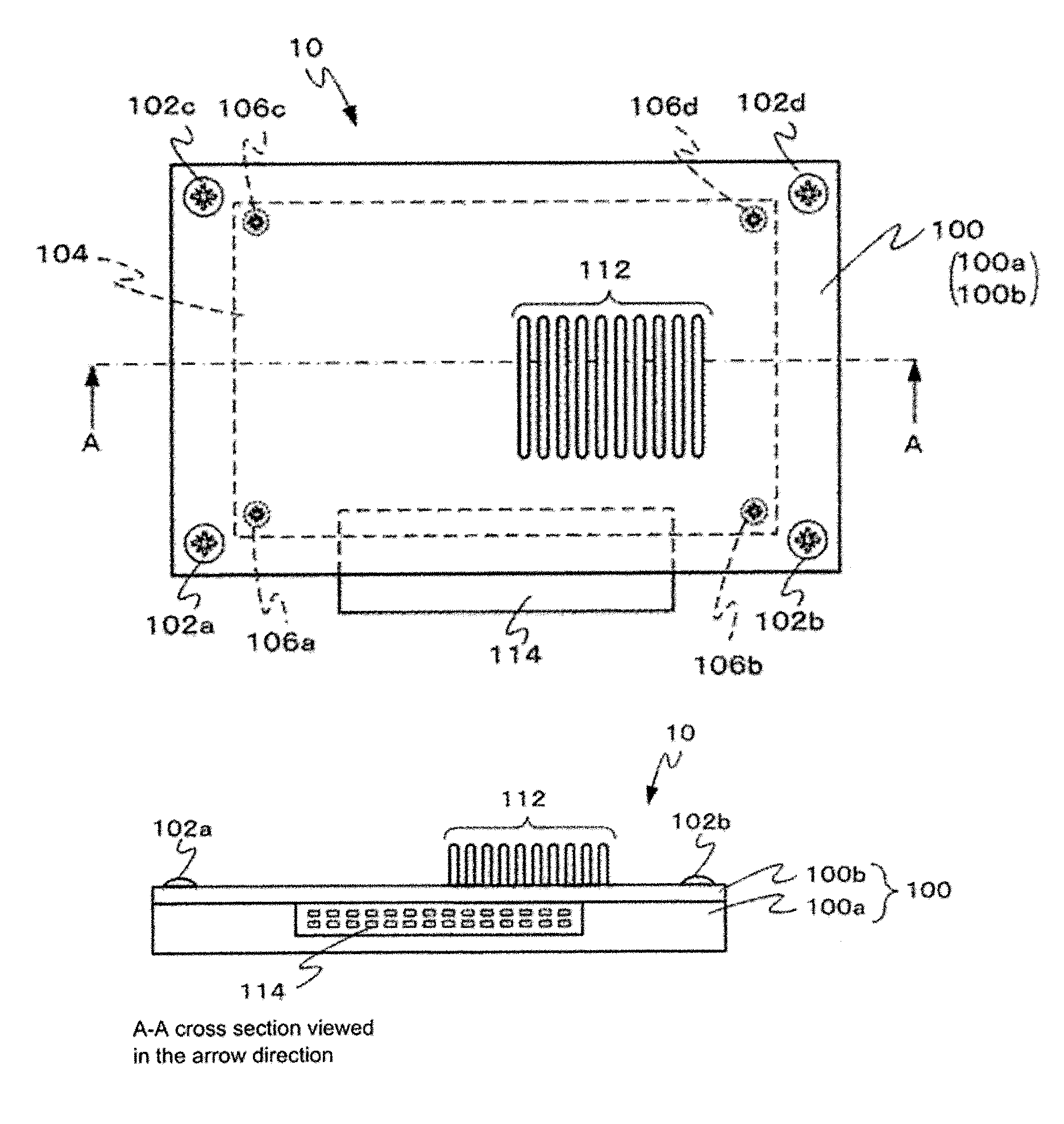

A printed wiring board includes a first outer surface, a second outer surface, and an electronic circuit. The second outer surface is opposite to the first outer surface. The electronic circuit includes at least one specific design circuit block and at least one common design circuit block. The at least one specific design circuit block is provided on the first outer surface and designed in accordance with a specification of a device to which the printed wiring board is applied. The at least one common design circuit block is for a common use regardless of the specification of the device. The at least one common design circuit block is provided on the second outer surface.
