Frequency-generating circuit and communications apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Feb 6, 2017
filing date -
Feb 6, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

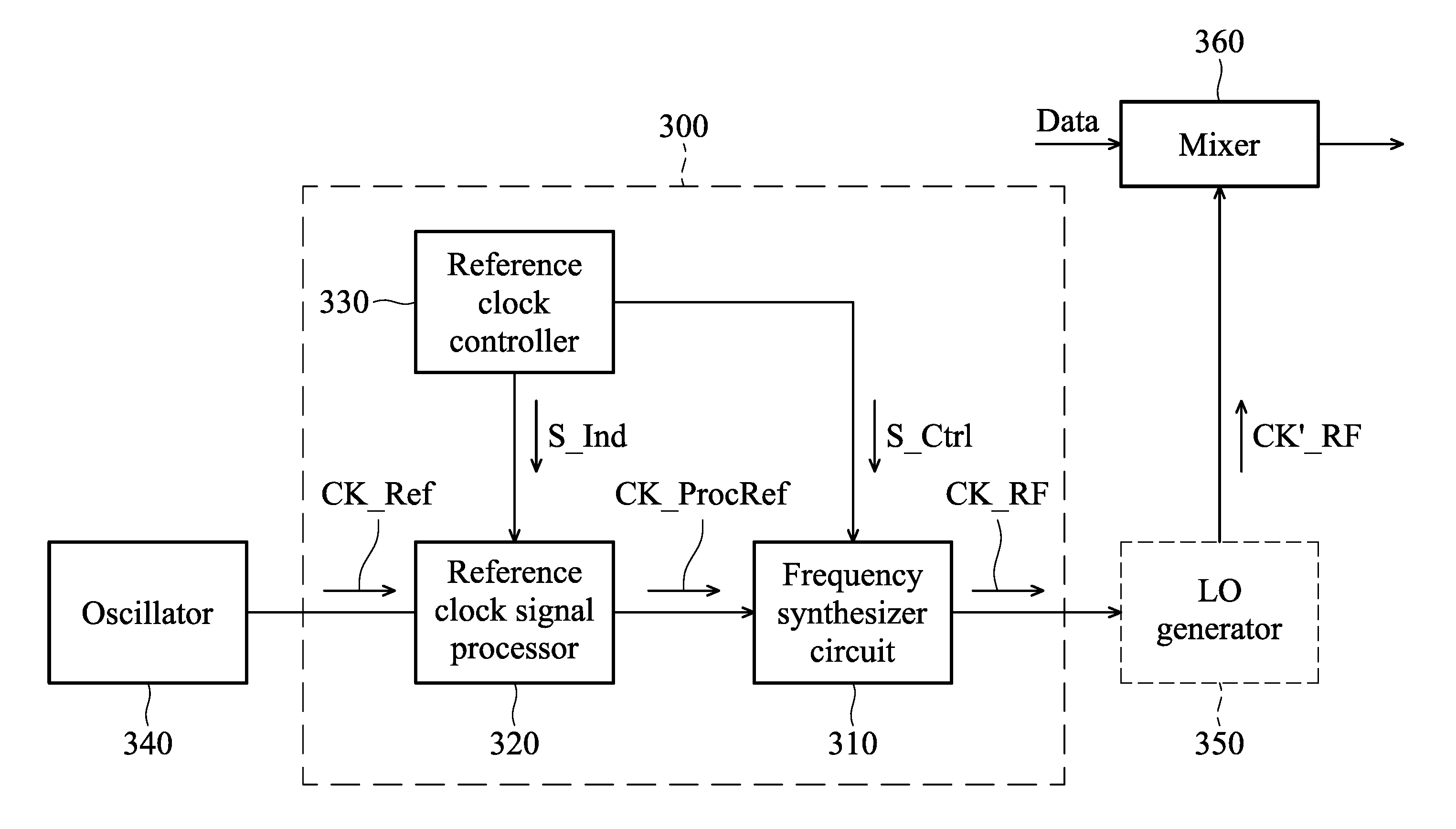

A frequency-generating circuit includes a frequency synthesizer circuit and a reference clock signal processor. The frequency synthesizer circuit receives a processed reference clock signal and generates a radio-frequency clock signal according to the processed reference clock signal. The reference clock signal processor receives an original reference clock signal from an oscillator and processes the original reference clock signal according to an indication signal to generate the processed reference clock signal. The indication signal is generated according to a required reference clock frequency of a communications apparatus. When the required reference clock frequency is high, a frequency of the processed reference clock signal is a multiple of a frequency of the original reference clock signal, and when the required reference clock frequency is low, the frequency of the original reference clock signal is a multiple of the frequency of the processed reference clock signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H03L Class
- 681 Applications Filed
- 583 Patents Issued To-Date
- 85.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
