Optimizing radio frequency (RF) coverage in remote unit coverage areas in a wireless distribution system (WDS)
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Mar 10, 2017
filing date -
Sep 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance

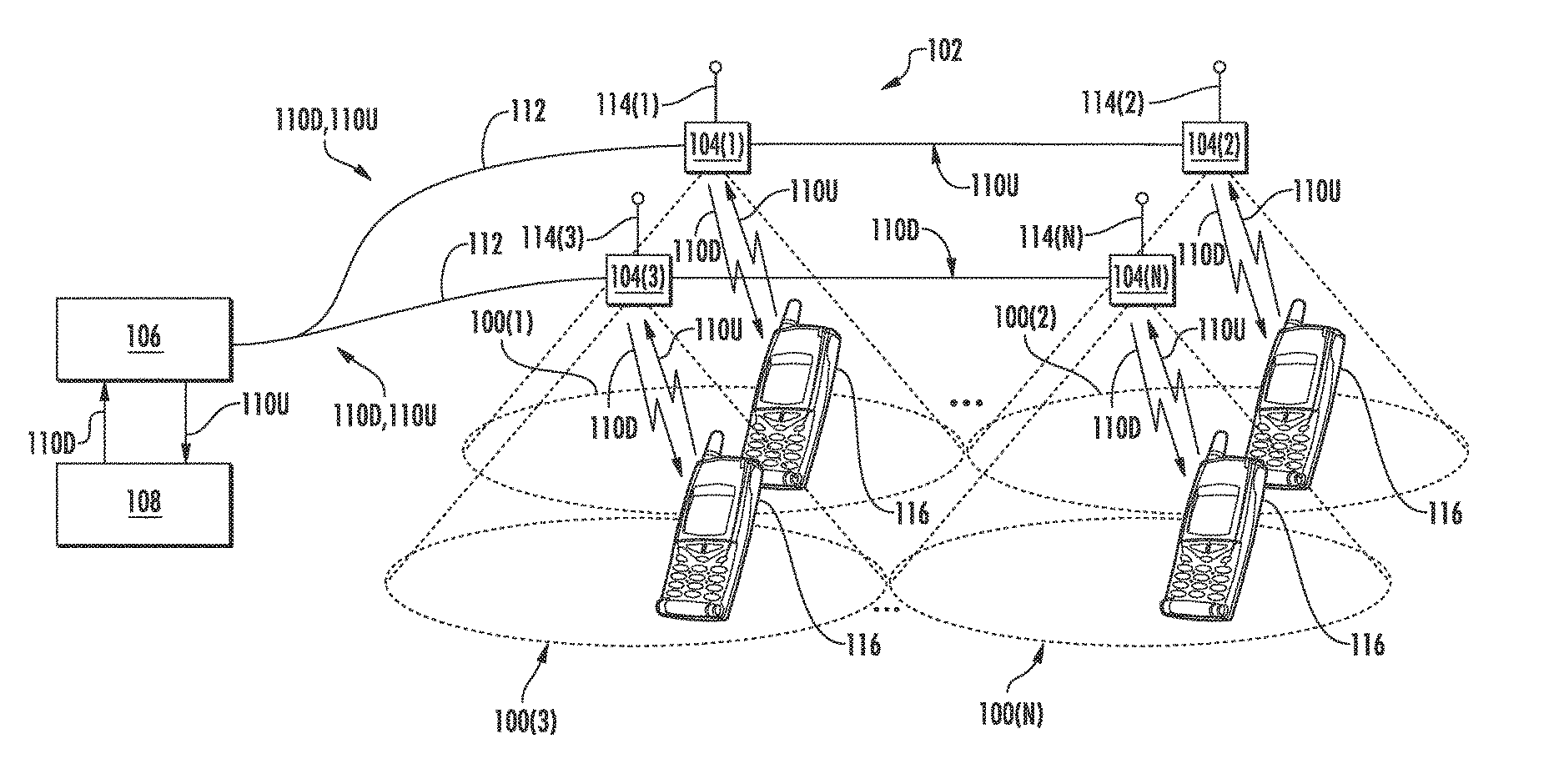

Abstract
Embodiments of the disclosure relate to optimizing radio frequency (RF) coverage in remote unit coverage areas in a wireless distribution system (WDS). A control circuit is configured to selectively determine at least one selected remote unit group comprising two or more remote units selected from a plurality of remote units in the WDS. A first remote unit in the selected remote unit group is configured to transmit an RF signal. The control circuit is configured to determine a first prediction deviation and a second prediction deviation, respectively. The control circuit determines correction factor(s) for selected correction point(s) based on the first prediction deviation and the second prediction deviation. The control circuit optimizes RF coverage in coverage area(s) based on the determined correction factor(s), thus improving RF performance and capacity of the WDS.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04W Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
