Two-way radio harvester and transmitter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
N/A
app pub date -
Nov 8, 2016
filing date -
Nov 8, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

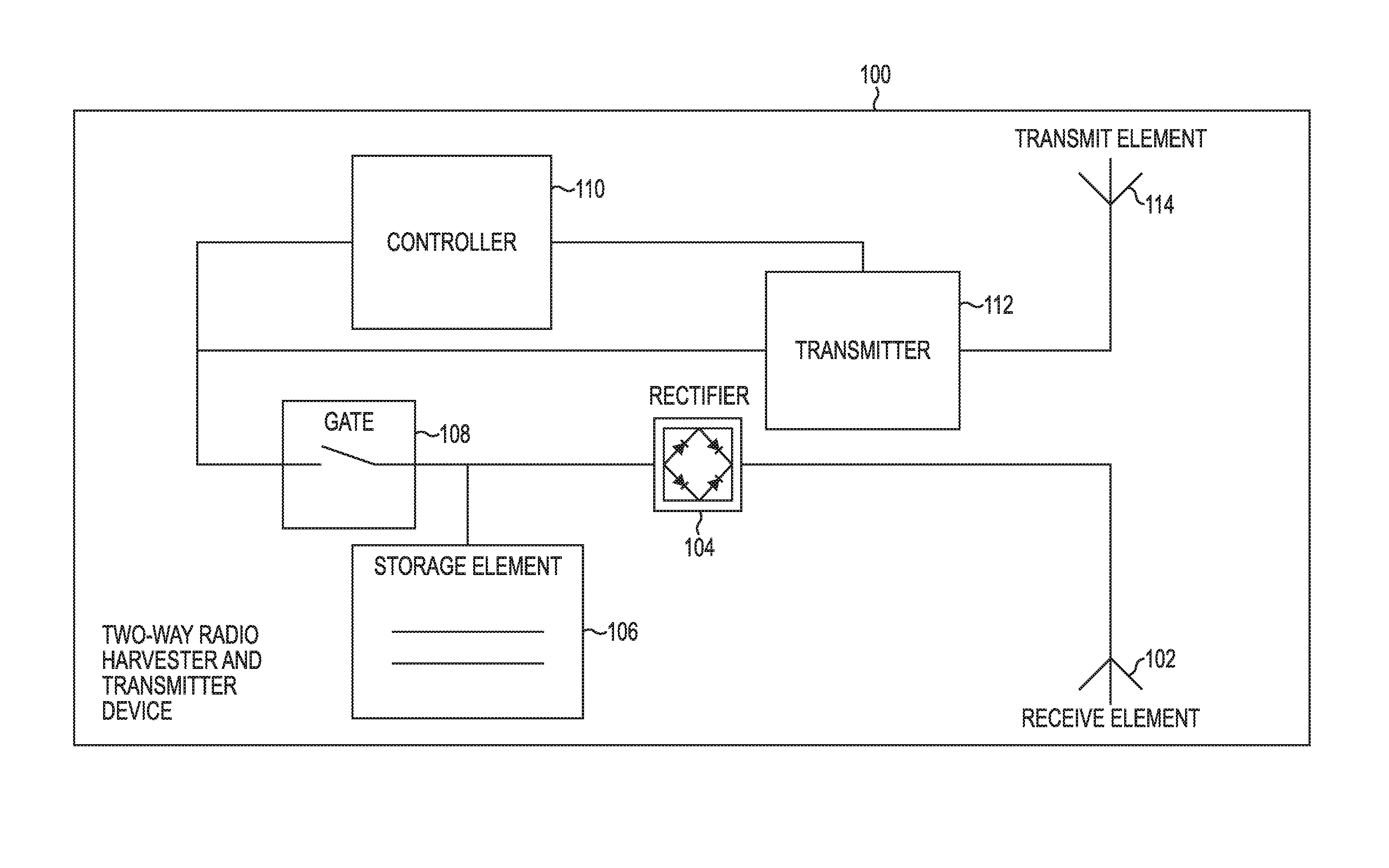

Devices, methods, systems, and computer-readable media for a two-way radio harvester and transmitter are described herein. One or more embodiments include a two-way radio harvester and transmitter comprising a rectifier connected between a receive element and a storage element to harvest and convert a signal into direct current (DC) power and store the DC power, a gate coupled to the storage element and a controller to allow the DC power in the storage element to power the controller when the gate reaches a power threshold and closes, and a transmitter connected between the controller and a transmit element to convert data containing information about preselected items by the controller into radio frequency (RF) signals to be transmitted by the transmit element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04B Class
- 10354 Applications Filed
- 8441 Patents Issued To-Date
- 81.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 21 Citation Count
- H04B Class
- 94.52 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
