Image forming device including correction process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Sep 27, 2016
filing date -
Sep 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

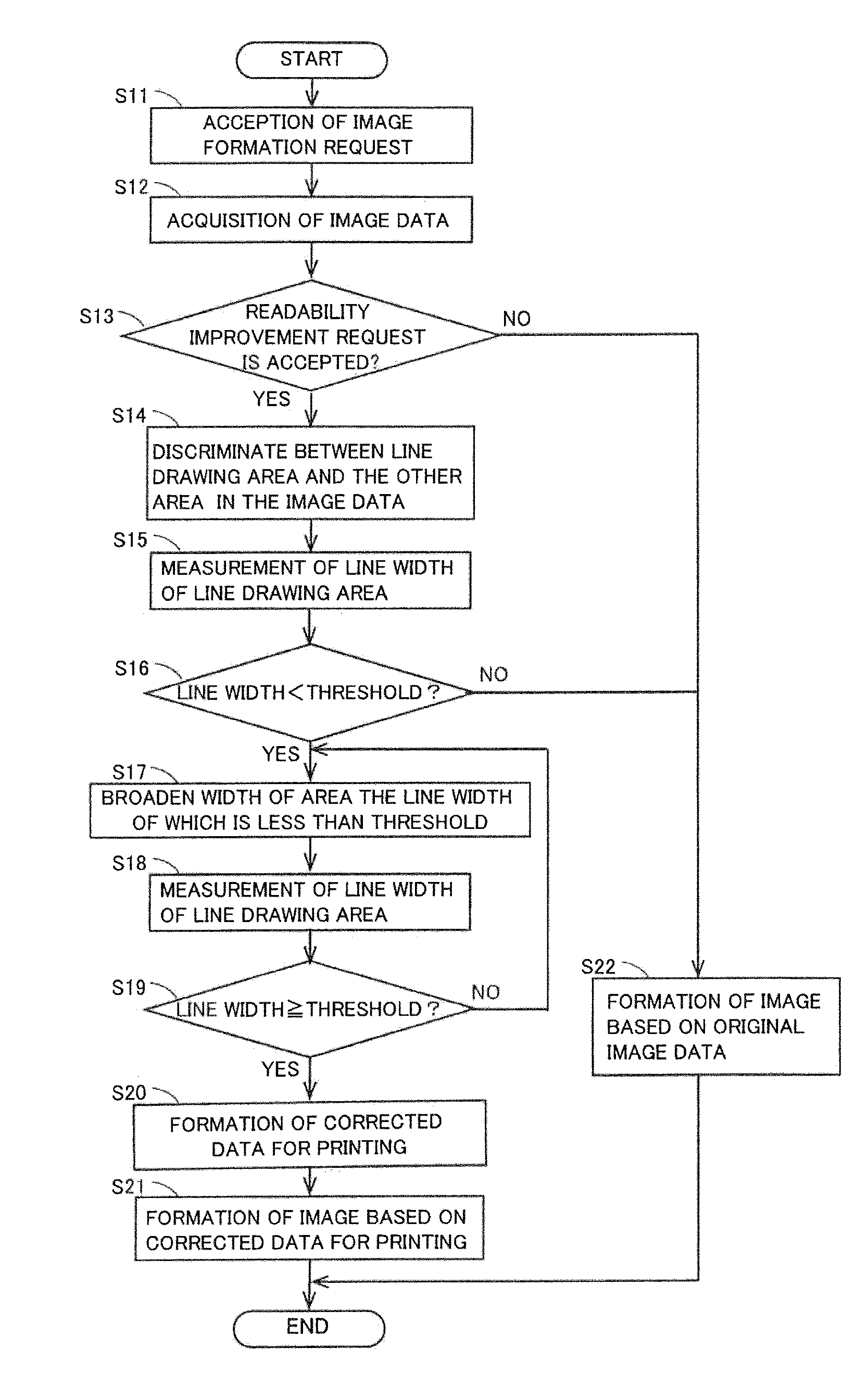

The image forming device includes an image formation request accepting section, an image data acquisition section, a readability improvement request accepting section, an area discriminating section, a line width measuring section, a correction object extracting section, a correction processing section, and an image forming section. The area discriminating section discriminates between a line drawing area and an area other than the line drawing area in the image data, and extracts a letter and a line. The line width measuring section measures the line width of the line or the letter. The correction object extracting section extracts an area where the line width measured by the line width measuring section is lower than the predetermined threshold as a correction object. The correction processing section broadens the width of the area determined as the correction object up to the predetermined value, to form corrected data for printing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
