Frequency shift keying (FSK) demodulator and method therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jun 7, 2017
filing date -
Jun 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

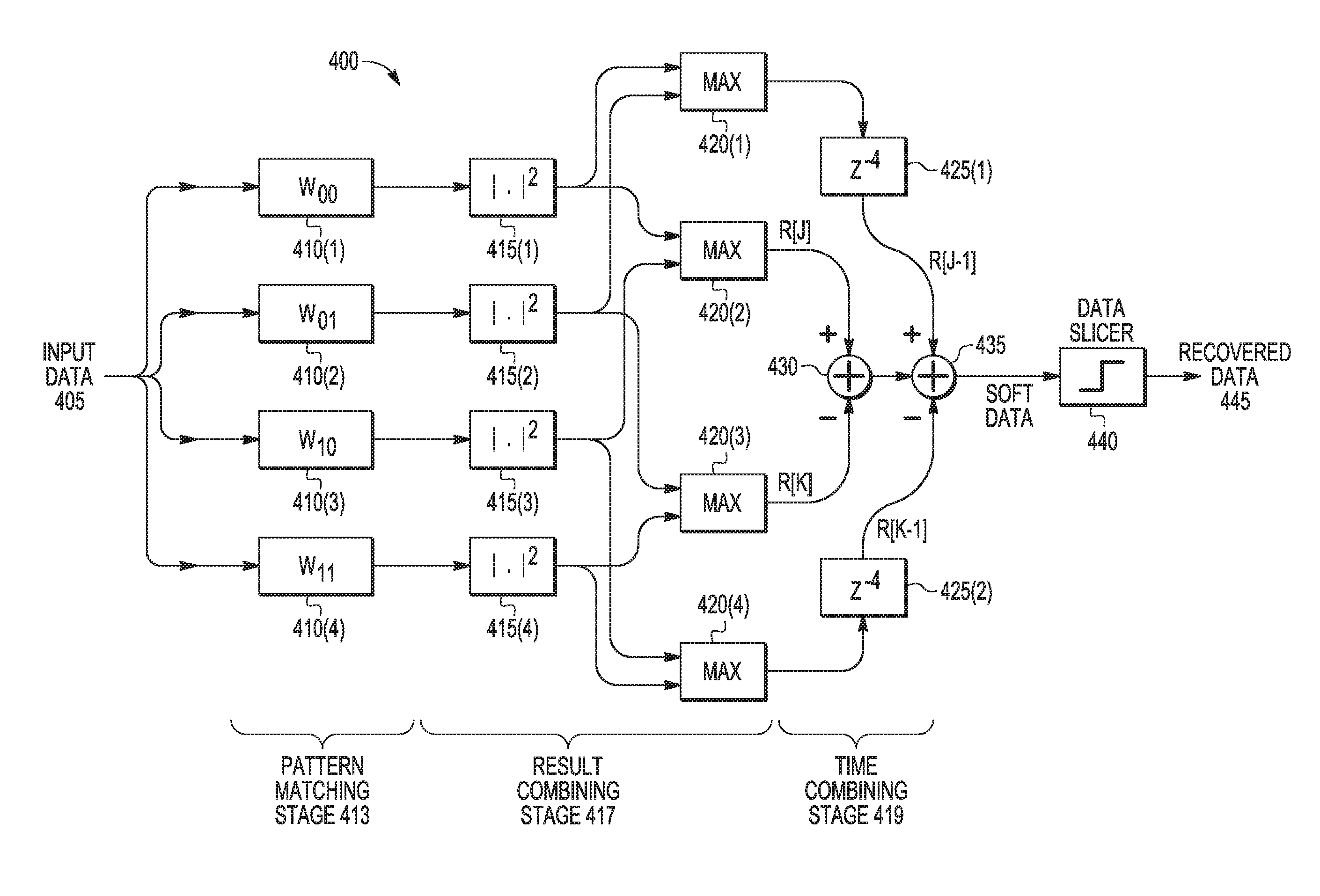

A method of operating frequency shift keying (FSK) demodulator for demodulating symbols includes providing current and previous buffered portions of an input signal to correlation circuits of the FSK demodulator, where each buffered portion persists for a symbol duration time period. The correlation circuits output first correlation metrics that indicate a likelihood of whether the buffered portions match a respective target pattern. The first correlation metrics are combined into a set of first correlation results, which are delayed by at least the symbol duration time period. The current and next buffered portions are provided to the correlation circuits, which output second correlation metrics that are combined into a set of second correlation results. The set of second correlation results are combined with the delayed set of first correlation results to produce a demodulation decision that indicates a most likely symbol value encoded in the current buffered portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04L Class
- 17.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
