Mobile communication device with wireless communications unit and wireless power receiver
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
May 20, 2015
filing date -
May 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

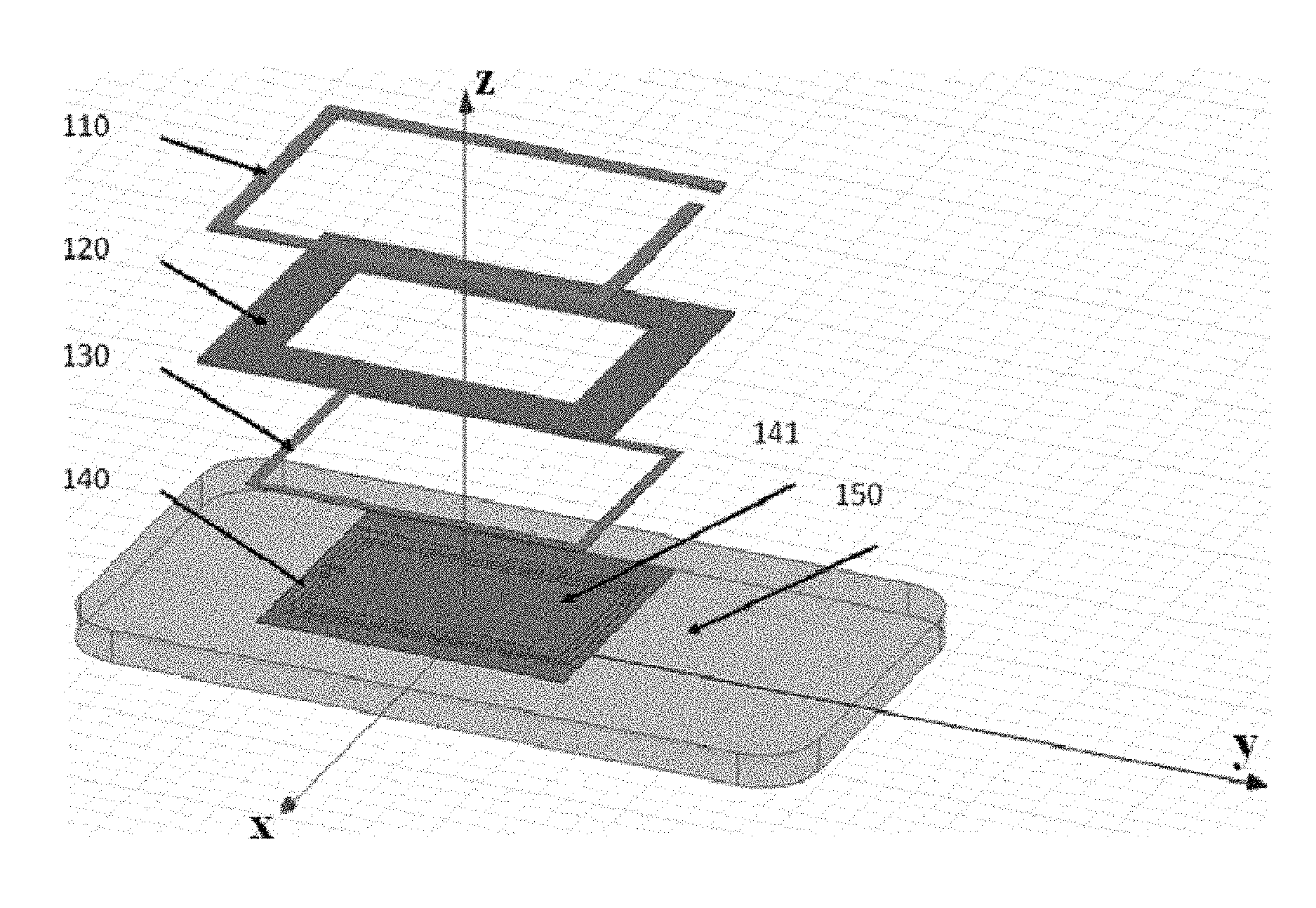

A mobile communication device having a wireless power receiver and wireless communications unit, in which inductors of the communications unit and the power receiver are in close proximity to each other, is provided. The mobile communication device includes a wireless communications unit including a first inductor configured to transmit and receive data via inductive coupling, and a wireless power receiver. The wireless power receiver includes a second inductor which is disposed above the first inductor and receives power via inductive coupling, a ferrite shield disposed between the first inductor and the second inductor, and a compensator disposed between the first inductor and the ferrite shield. Compensator is adapted to compensate for variations in the inductance of the first inductor caused by the ferrite shield.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
