Analog-to-digital converter, radiation detector and wireless receiver
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Jul 5, 2016
filing date -
Jul 7, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

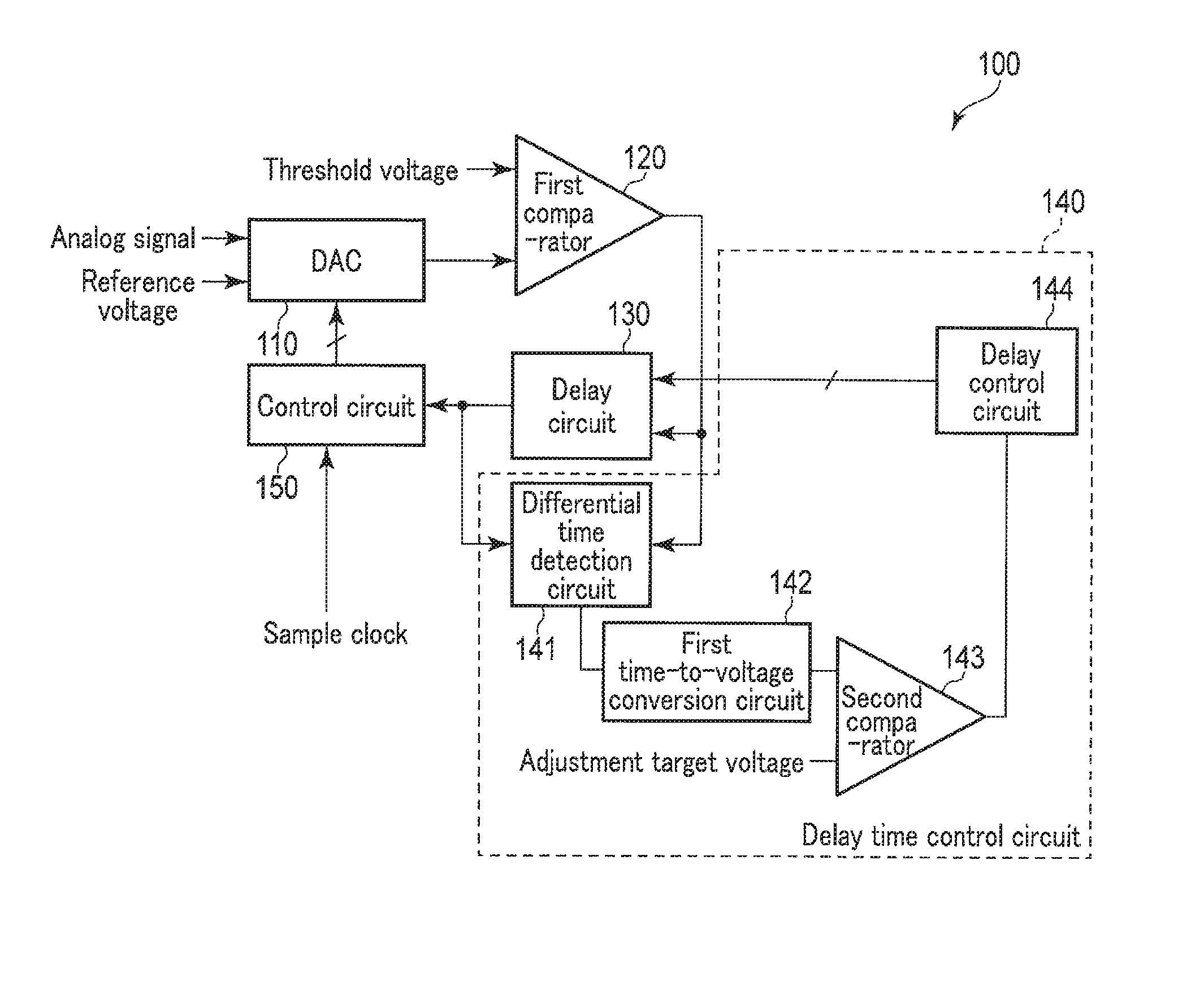

According to an embodiment, an analog-to-digital converter includes a detection circuit, a first conversion circuit, a second comparator, a delay control circuit, a control circuit. A detection circuit detects a differential time signal corresponding to a delay time by using a comparison signal and a delay comparison signal. A first conversion circuit generates a differential voltage by performing time-to-voltage conversion on the differential time signal. A second comparator generates a digital delay determination signal by comparing the differential voltage and an adjustment target voltage. A delay control circuit generates a delay control signal controlling the delay time in accordance with a delay determination signal. A control circuit generates a control signal by using the delay comparison signal in an analog-to-digital conversion period.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H03K Class
- 21.67 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
