Digital phase-locked loop supply voltage control
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
May 23, 2016
filing date -
Sep 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

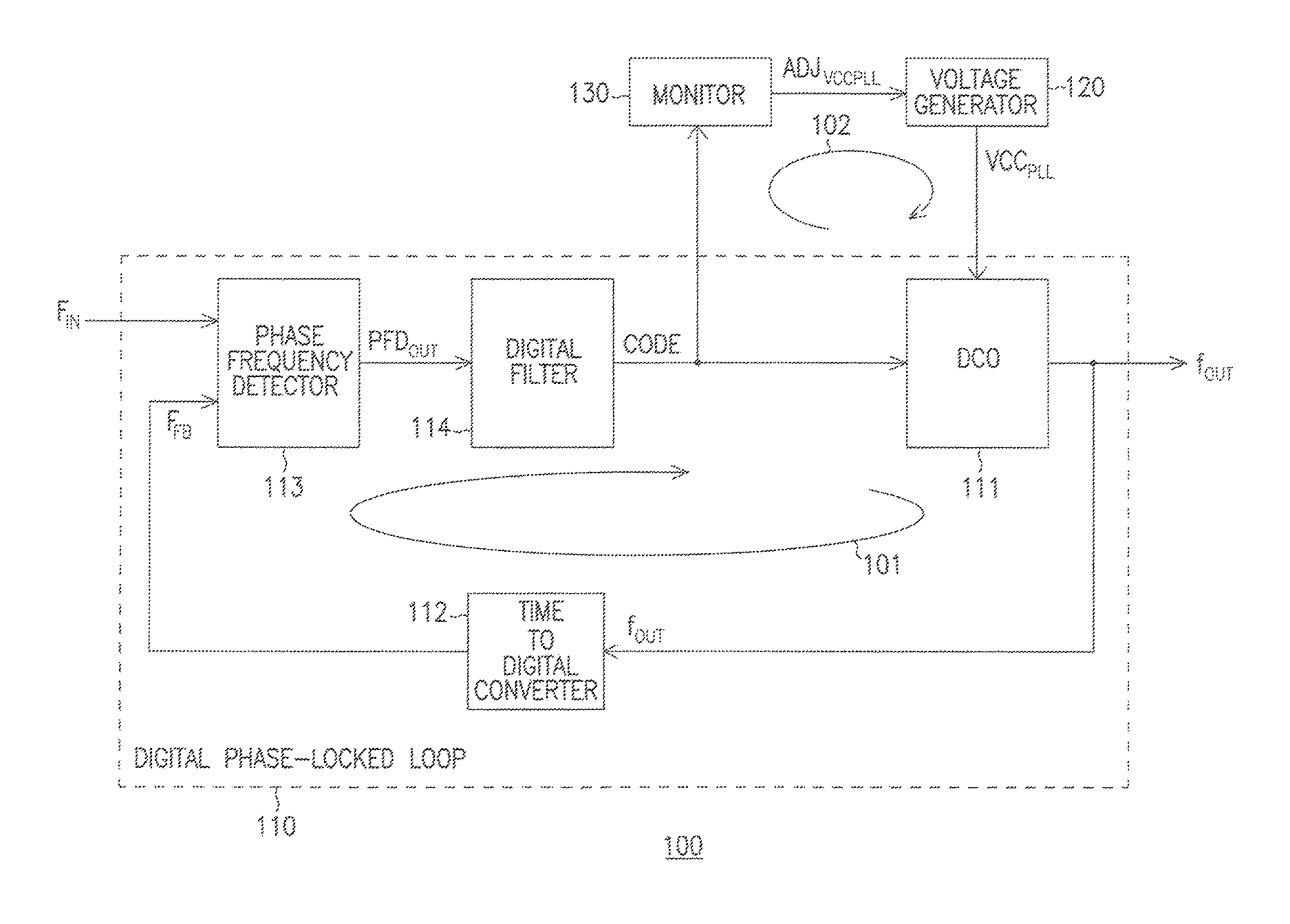

Some embodiments include apparatuses and methods having a digitally controlled oscillator (DCO) in a digital phase-locked loop (PLL) and a control loop. The DCO can generate an output signal having a frequency based on a value of a digital information. The control loop can adjust a value of a supply voltage of the DCO based on the value the digital information. Additional apparatuses and methods are described.
