Hollow supports and anchors for mechanical resonators
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
Jun 9, 2016
app pub date -
Mar 28, 2014
filing date -
Oct 20, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

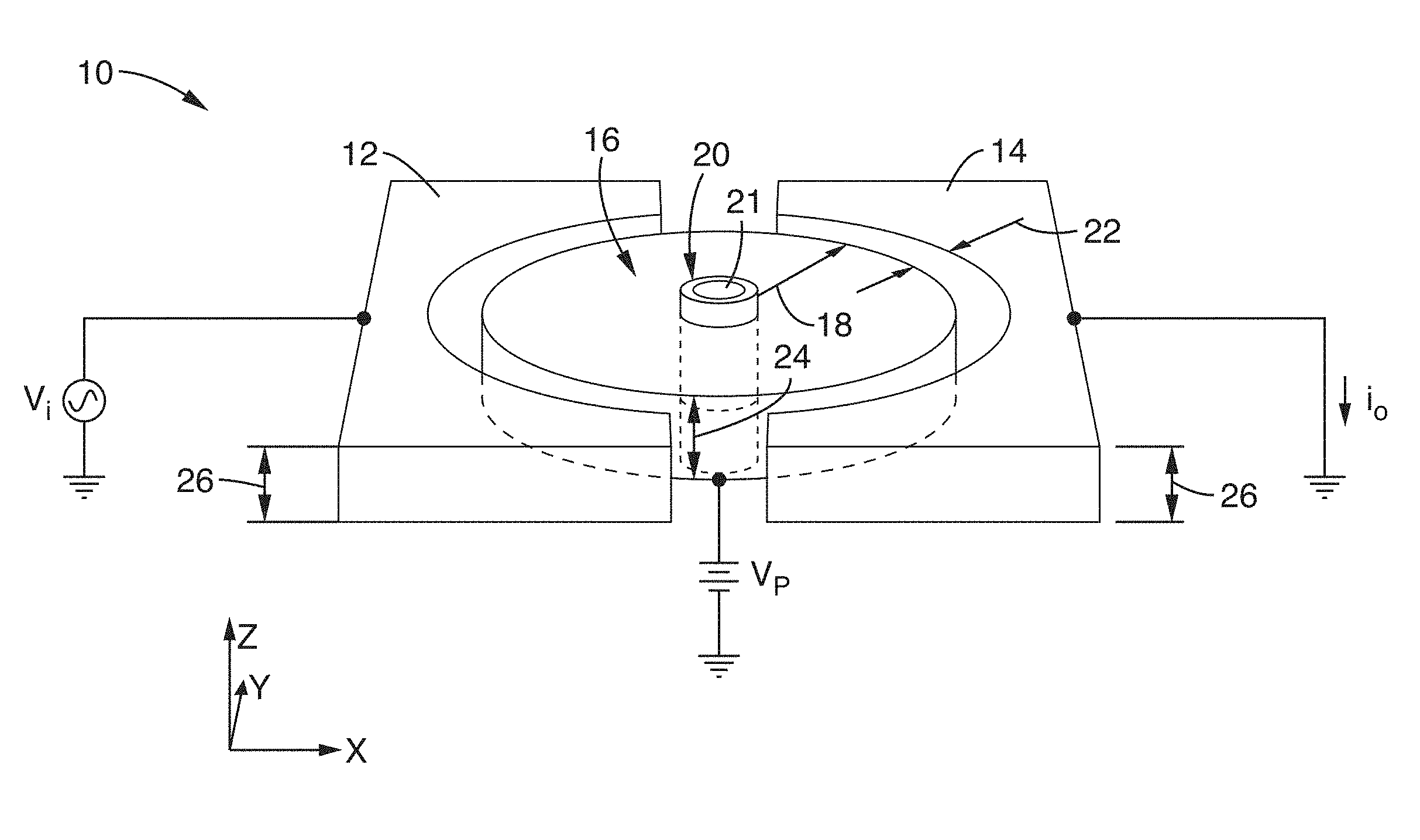

A micromechanical resonator having one or more anchoring stems which are hollow to increase resonator Q factor. By way of example a micromechanical disk resonator embodiment is shown utilizing a resonant micromechanical disk anchored by a stem between at least one electrode used for input and output. To increase resonator Q, a hollow stem is utilized in which an outer thickness of stem material surrounds a hollow area interior of the stem, or that is fabricated with a plurality of vias and/or fabricated substructures containing hollow spaces in the stem material. Measurements have confirmed that Q values can be increased using the hollow core stems by a factor of 2.9 times in certain implementations and operating modes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H01P Class
- 503 Applications Filed
- 453 Patents Issued To-Date
- 90.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01P Class
- 35.54 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
