Flexible photovoltaic modules having junction box supporting flaps
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 14, 2014
filing date -
Apr 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

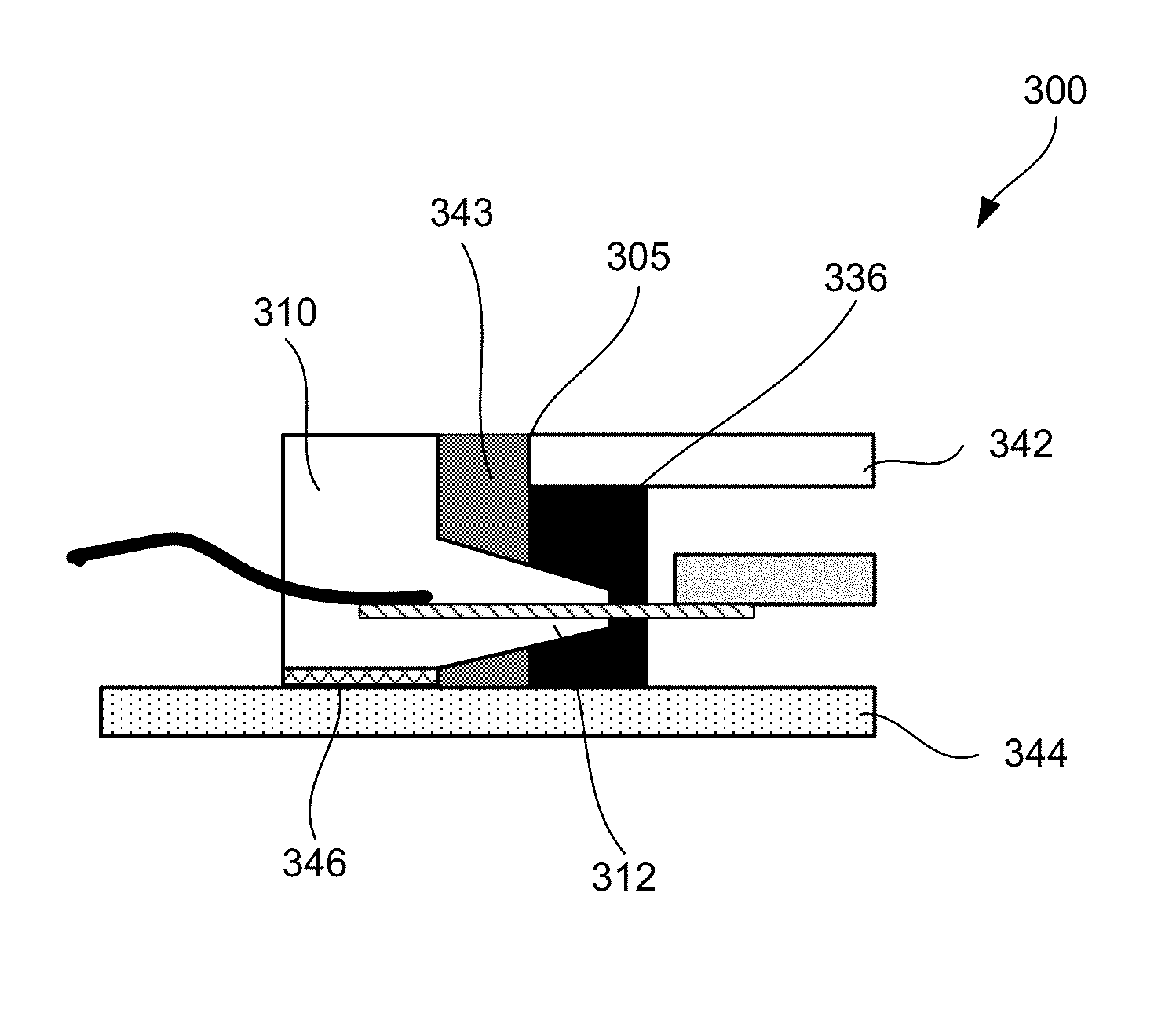

Provided are flexible photovoltaic modules having flaps for supporting junction boxes. Junction boxes are used for making electrical connections to photovoltaic cells sealed inside the modules. A flap may be formed by one or two flexible sealing sheets extending beyond the boundary of the photovoltaic cells. A junction box is attached to the front surface of the flap. In certain embodiments, a flap is formed by one sealing sheet, such as a back side sheet. Materials of the back side sheet may be different from materials of the front side sheet and be selected to ensure support to the junction box. Additional support to the junction box may be provided by extending one of its edges in between the two sealing sheets. This edge extension or other features may be used for mechanical protection of electrical leads extending between the junction box and photovoltaic cells.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H01L Class
- 23828 Applications Filed
- 21803 Patents Issued To-Date
- 91.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
