Power conversion device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Apr 21, 2015
filing date -
Jun 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

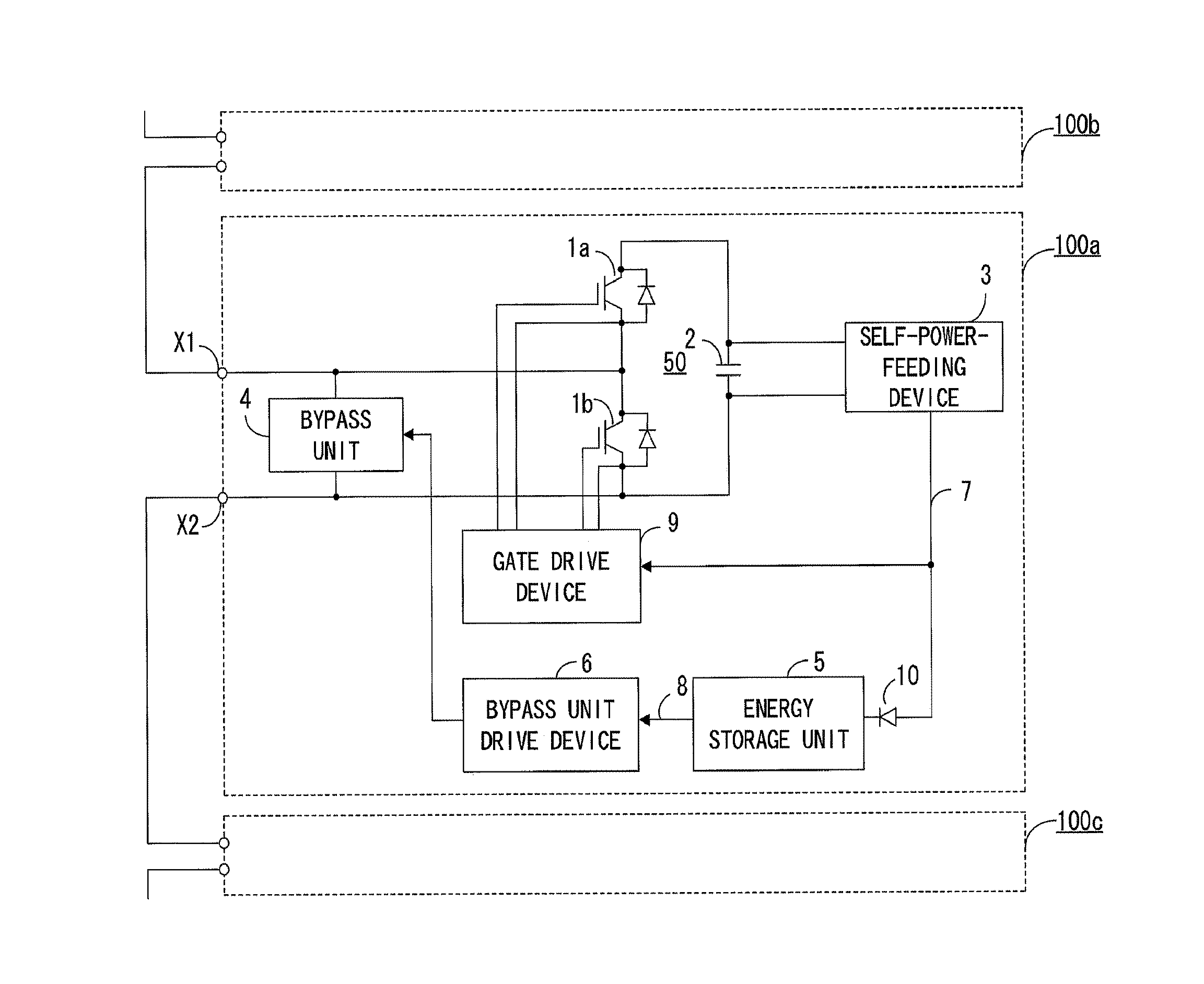

A power conversion device including: an energy storage unit which receives and stores voltage of a self-power-feeding device; and a bypass unit drive device which, when voltage of the self-power-feeding device becomes smaller than a predetermined lower limit value, causes a bypass unit to perform short-circuiting operation by power stored in the energy storage unit. Thus, by appropriately setting the above voltage lower limit value as a threshold value for the short-circuiting operation, it becomes possible to swiftly and reliably perform short-circuiting protection operation even if a cell converter has failed, thus it is possible to always safely continue the operation of the power conversion device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02M Class
- 2758 Applications Filed
- 2286 Patents Issued To-Date
- 82.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H02M Class
- 19.31 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
