Compressor, motor included therein, and method for manufacturing the motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Dec 15, 2014
filing date -
Dec 30, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

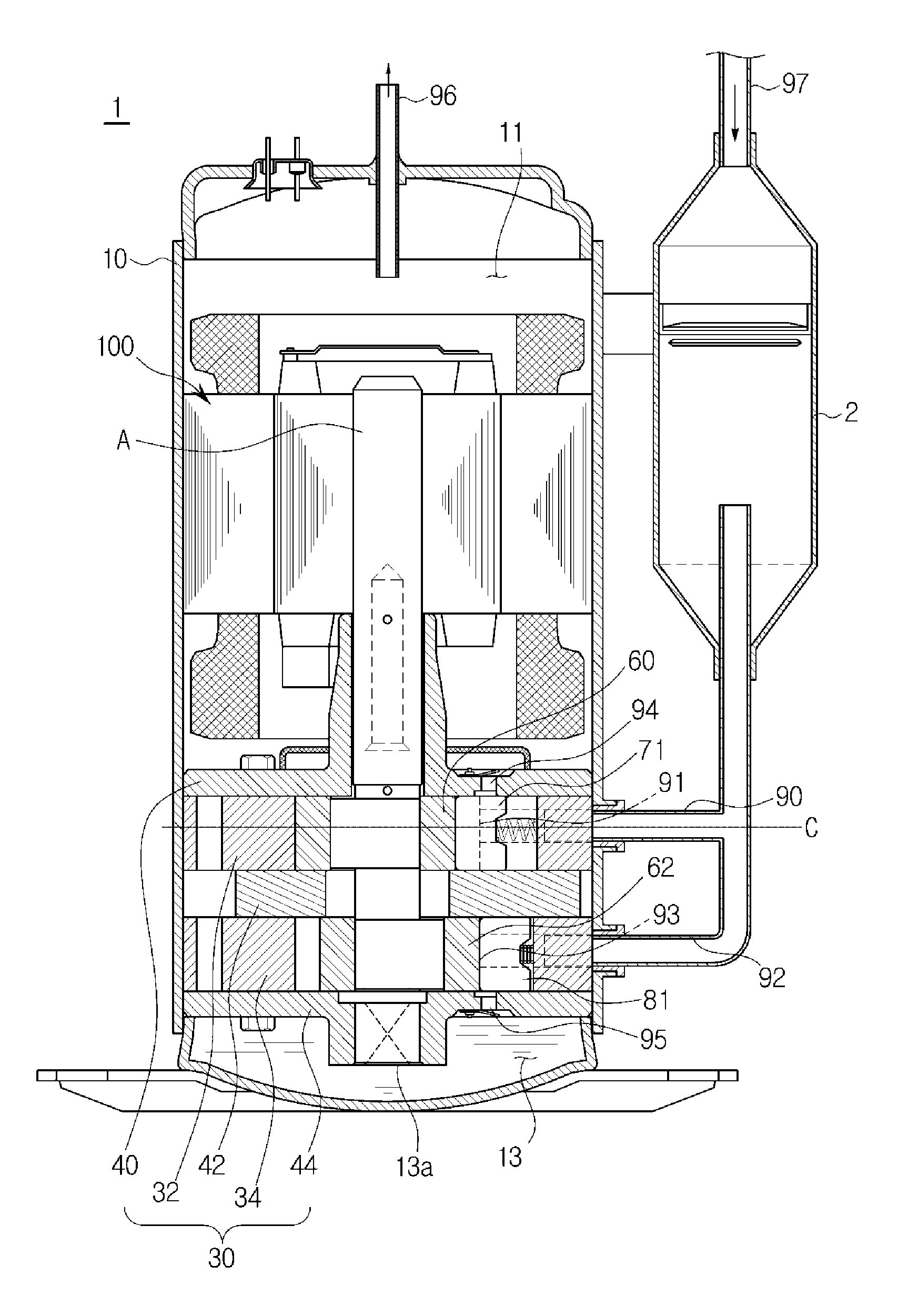

A compressor includes a motor which includes a stator assembly configured to include a stator in which a hollow is formed, a plurality of coils formed by a winding wound on the stator, and an insulator for insulating the stator from the coils, and a rotor inserted into the hollow, configured to rotate about a rotation axis. The rotor includes a plurality of poles, and a curvature radius of an outer circumference of a center part of the poles is different from a curvature radius of an outer circumference of an edge part of the poles. A method for fabricating a motor includes coupling a stator hook formed in a busbar assembly having a plurality of busbars to a hook engaging part formed in the stator assembly having the plurality of coils, and fusing a winding onto a folded plate connected to the plurality of busbars.
First Claim
Family
International Classification(s)
- 2014 Application Filing Year
- H02K Class
- 2148 Applications Filed
- 1788 Patents Issued To-Date
- 83.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02K Class
- 23.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
