Charger, battery pack charging system and cordless power tool system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Nov 10, 2016
filing date -
Dec 30, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

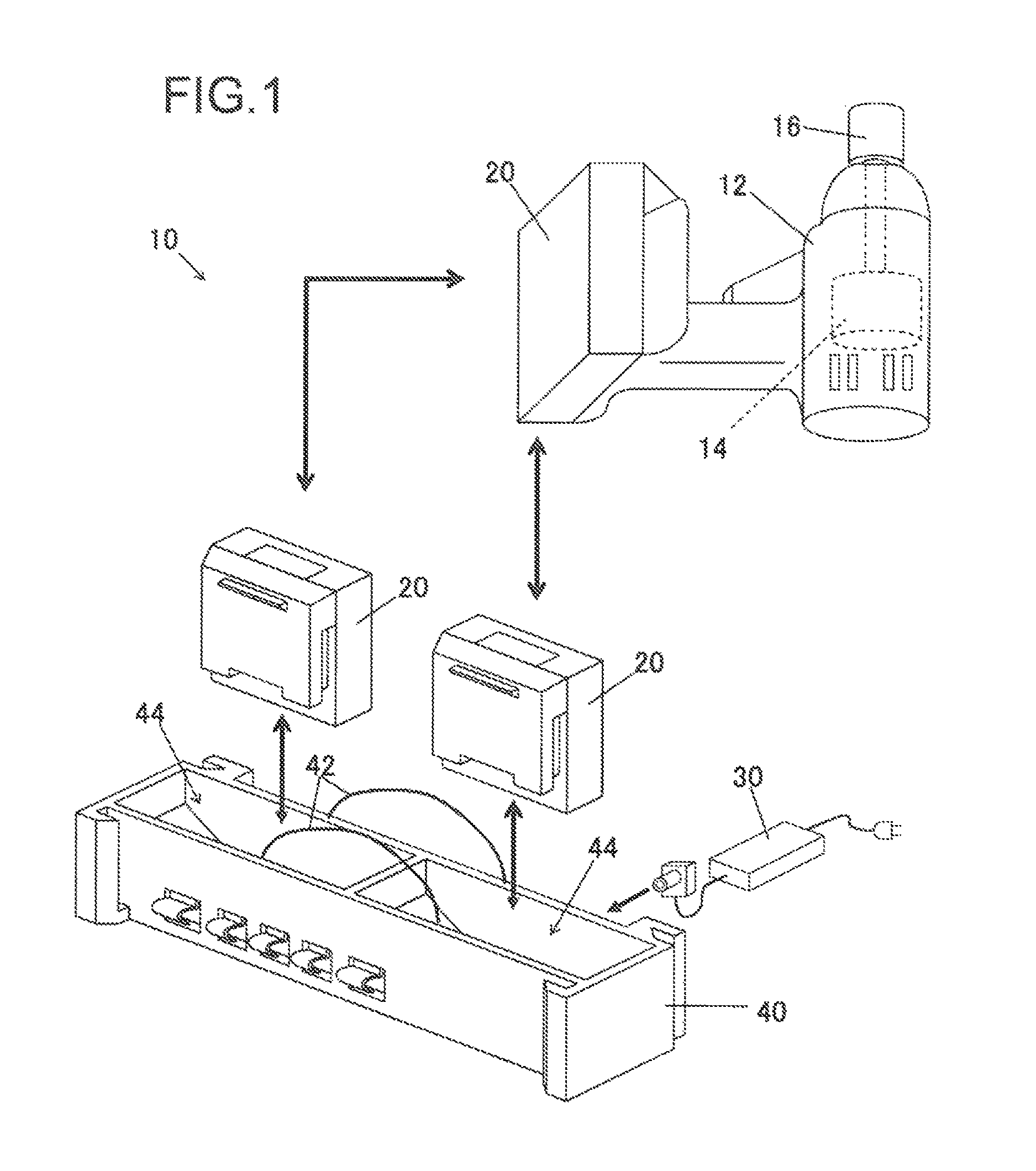

A charger charges a rechargeable battery pack of a cordless power tool. The charger includes at least one wall that at least partially defines a battery pack receiving space for the battery pack, a first guide extending away from the at least one wall, and a second guide extending away from the at least one wall and spaced from the first guide. The at least one wall, the first guide and the second guide are configured to guide the battery pack to a prescribed position relative to the at least one wall. The first guide and the second guide each include a portion inclined relative to the insertion direction by an angle of inclination such that the distance between the inclined portion of the first guide and the inclined portion of the second guide decreases in the insertion direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H02J Class
- 5140 Applications Filed
- 3941 Patents Issued To-Date
- 76.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02J Class
- 22.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
