Hanger for mounting cables
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Mar 25, 2016
filing date -
Mar 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

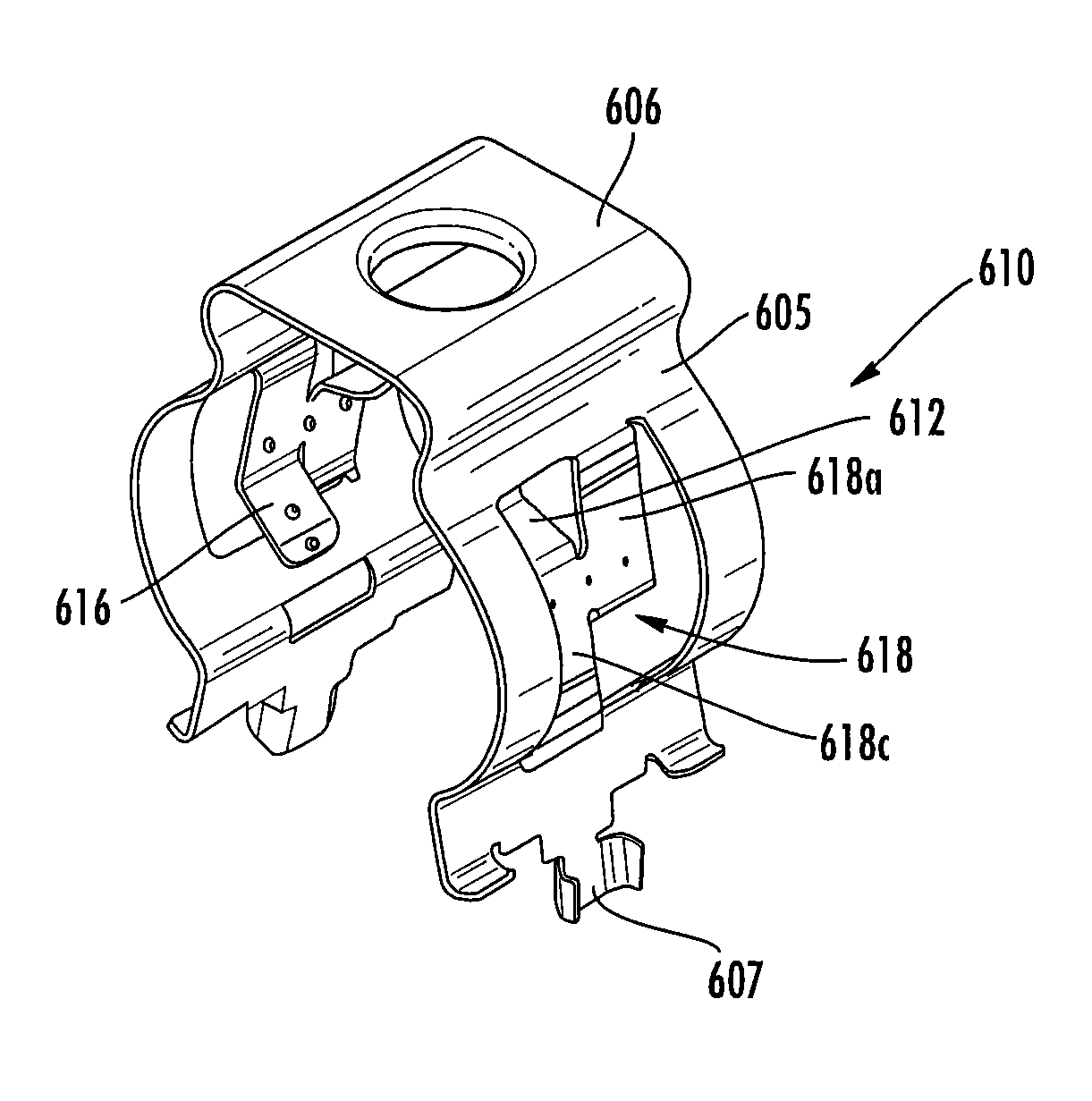

A cable hanger includes: a base panel having opposed ends; a pair of arms, each of the arms attached to a respective end of the base panel and having a free end; a pair of locking projections, each of the locking projections attached to a respective free end of the arms; and a pair of gripping members, each gripping member attached to a respective arm, each gripping member having opposed ends, wherein one of the ends of each gripping member is fixed to the arms and the other of the ends of each gripping member is fixed to the arm or to the base panel. The arms and locking projections are configured to spread apart to enable insertion of a cable between the arms, wherein the gripping projections engage and grip the cable, and wherein the locking projections are configured to be inserted into the aperture of the supporting structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16L Class
- 1971 Applications Filed
- 1425 Patents Issued To-Date
- 72.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 60 Citation Count
- F16L Class
- 99.74 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
