Dual-polarized antenna
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Issued Date -
N/A
app pub date -
Mar 19, 2015
filing date -
Sep 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

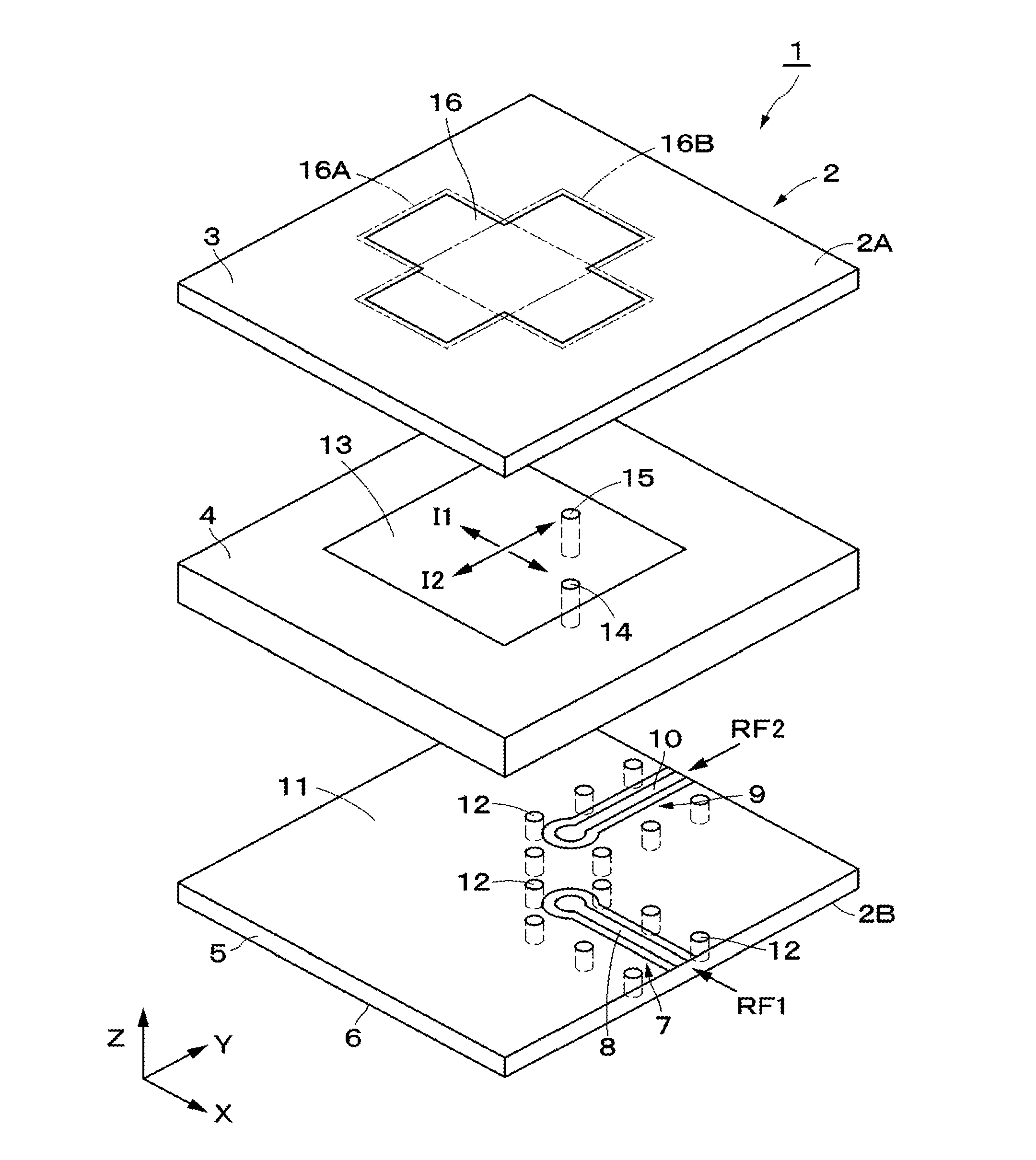

In a multilayer substrate (2), an internal ground layer (11) is provided at a position between insulating layers (4) and (5) and a radiating element (13) is provided at a position between insulating layers (3) and (4). A first coplanar line (7) is connected to an intermediate position of the radiating element (13) in an X-axis direction, and a second coplanar line (9) is connected to an intermediate position of the radiating element (13) in a Y-axis direction. A passive element (16) is laminated on the upper surface of the radiating element (13) through the insulating layer (3). The passive element (16) is formed in a cross shape in which a first patch (16A) extending in the X-axis direction and a second patch (16B) extending in the Y-axis direction are orthogonal to each other.
